Bud Industries NBB-10263 - A NEMA And IP-Certified Housing For Electronics
If a printed circuit board is intended for global use, an internationally certified case greatly simplifies system deployment. With the NBB-10263, Bud Industries provides an ABS-based case with an optional transparent lid.

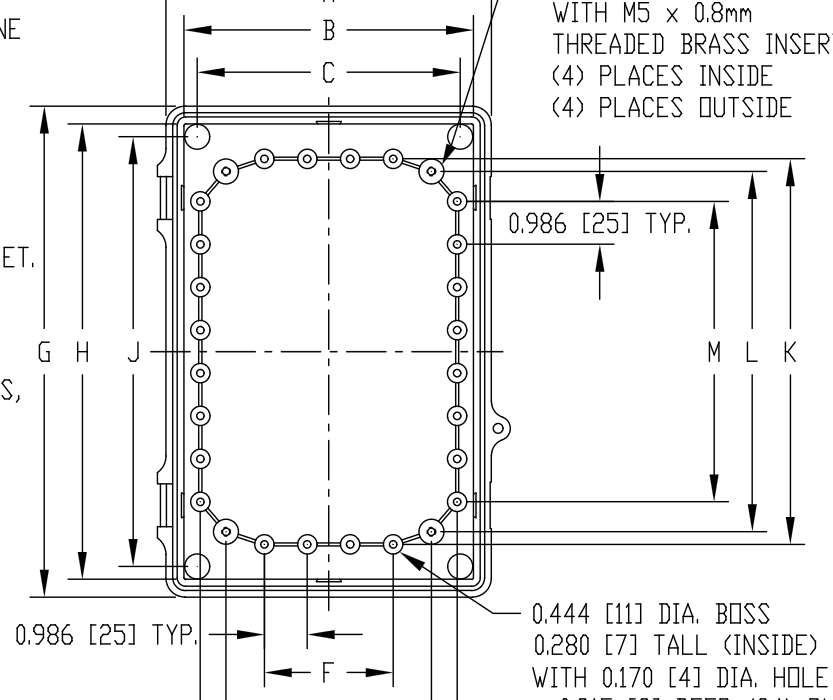

Targeted at printed circuit boards sized up to 10.46" x 6.65" x 5.25", the enclosure provides bosses intended for M5 screws. These permit the installation of the PCB and are arranged according to the pattern shown in the figure below. Additional bosses can be used to attach the components to the rest of the system.

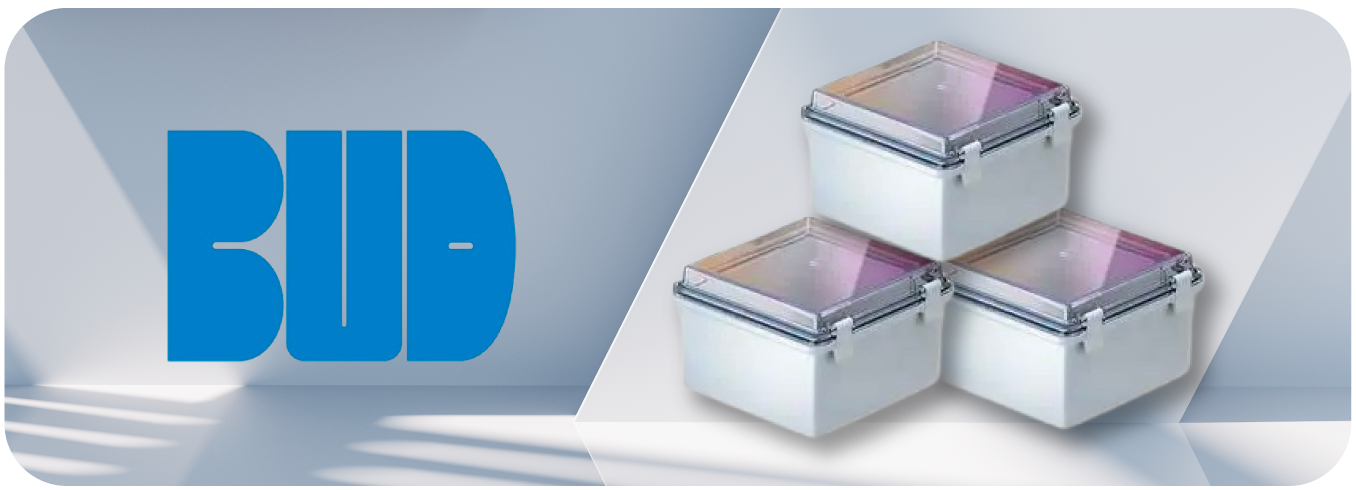

Transparent and Non-Transparent Case Options Are Available
Bud Industries supports industrial designers with a variety of options combining robustness and case design. An UL-Listed indoor version with a clear cover can be ordered via NBB-10263, while SKU NBB-10243 has a solid cover. Ordering NBB-15243 gives an outdoor version with a solid cover, while the ABS version can be ordered via NBB-22243.
Wide Array of Certifications
When developing automotive or automation electronics, high robustness is paramount. A wide range of standards is available in the USA and Europe. Bud Industries product complies with regulations on both continents.
For SKU NBB-10263, the array of industry standards adhered to is as follows. RoHS compliance is given across the entire product range:
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: IP66
Factory Customization Offered on Request
In addition to the wide array of SKUs, Bud Industries is willing to customize the component. This can be used to add cut-outs at the factory, thereby ensuring that connectors can be installed without additional modification.

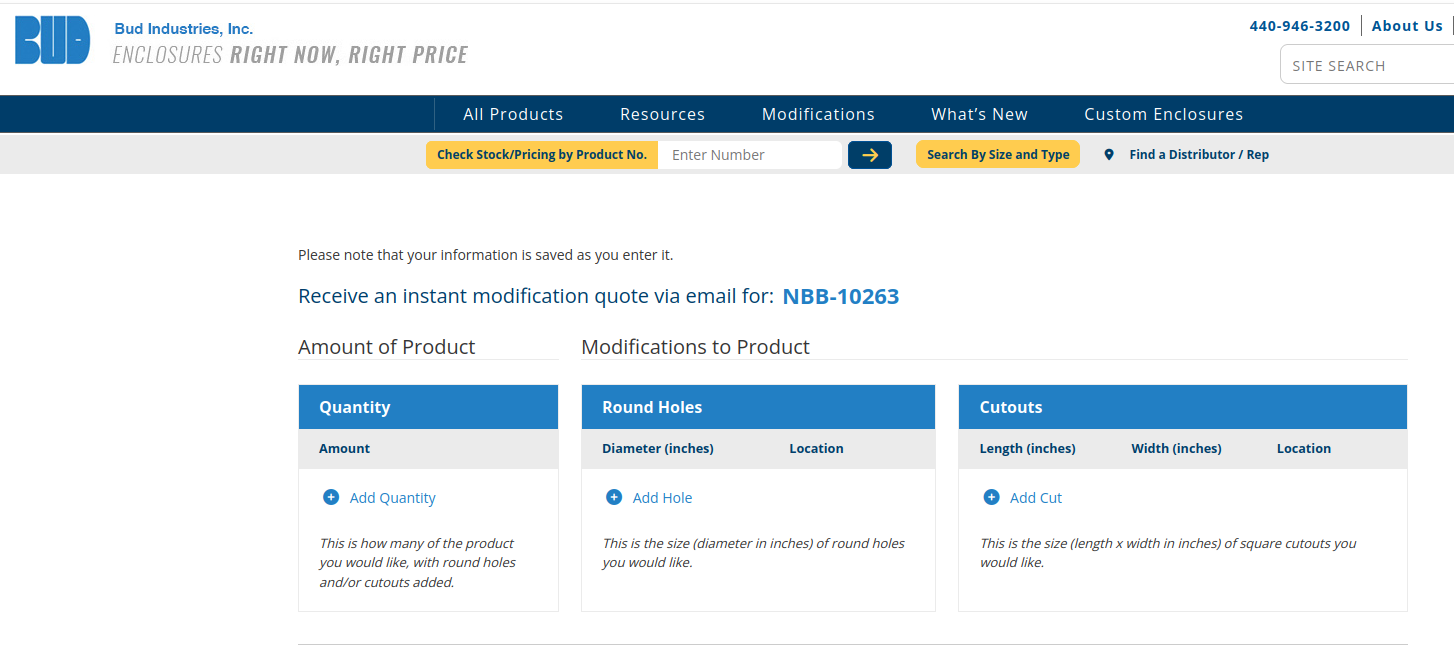

For this, the factory offers an online customization assistant shown below. It can be opened in a browser of choice by visiting URL https://www.budind.com/modifications-calculator/.
Conclusion
Thanks to its wide array of certifications and robust design, the NBB-102xx family is ideally suited for industrial automation. When combined with reliable industrial connectors, control electronics can be brought closer to the monitored process.
