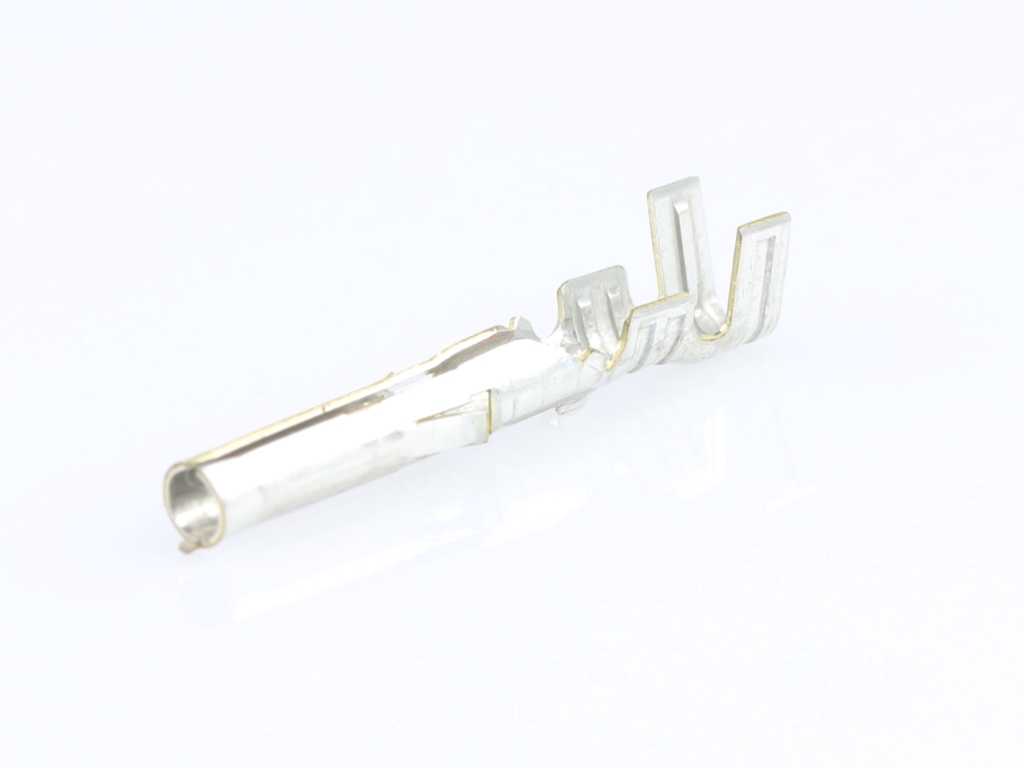

02061101 Standard .062" by Molex
1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Female, with Tin (Sn) Plated Brass Contact, 24-18 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
02-06-1101,
0002061101, 1561-(P901) |
Where to Buy
Prices starting from US$0.0187
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.0203
|
1,080,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.0221
|
930,000
in stock
|
Buy Now |
|
Farnell
from US$0.0389
|
546,000
in stock
|
Buy Now |
|
Sager
from US$0.0218
|
366,000
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0252
|
234,000
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0274
|
156,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0213
|
138,000
in stock
|
Buy Now |
|
Rutronik
from US$0.0253
|
84,000
in stock
|
Buy Now |
|
Avnet America
from US$0.0187
|
84,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0350
|
56,026
in stock
|
Buy Now |
|
RS
from US$0.0496
|
21,700
in stock
|
Buy Now |
|
TME
from US$0.0311
|
2,903
in stock
|
Buy Now |
|
Conrad
from US$0.0362
|
1,735
in stock
|
Buy Now |
|
Avnet Abacus
-
|
474,000
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
120,000
in stock
|
Buy Now |
|
|
RS Americas
from US$0.0320
|
0
in stock
|
Buy Now |
|
Compona
from US$0.0231
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.147/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.52-3.05mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| TERM,CRIMP,FEM,.062,18-24AWG TIN | Heilind Americas |
| .062 PIN&SOCKET 18-24AWG FE | TTI Americas |
| CONTACT, SOCKET, 18-24AWG, CRIMP | Farnell |
| Pin & Socket Connectors 062FemaleTermChainBrsTin18-241561-(P901) | Sager |
| .062 PIN &SOCKET 18-24AWG FE | TTI Asia |
| REELED TERMINALS | TTI Europe |
| Crimp Terminal Female AWG 18-24 | Rutronik |
| Contact, Socket, 18Awg, Crimp | Newark Electronics |
| Molex 02-06-1101 Crimp Terminal | RS |
| Contact | TME |
| 0.062 Diameter 02061101 Molex Inhalt: 1 St. | Conrad |
| .062 PIN AND SOCKET CRIMP TERMINAL FEMALE WITH TIN (SN) PLATED BRASS CONTACT | RS Americas |
| MOLEX 02-06-1101 Female Contact Crimp MicroClasp | Compona |
| 062FEMALETERMCHAINBRSTIN18 | Avnet Asia |
| Crimp Pin and Socket Contact Brass 18 AWG - 24 AWG | Carlton-Bates |
