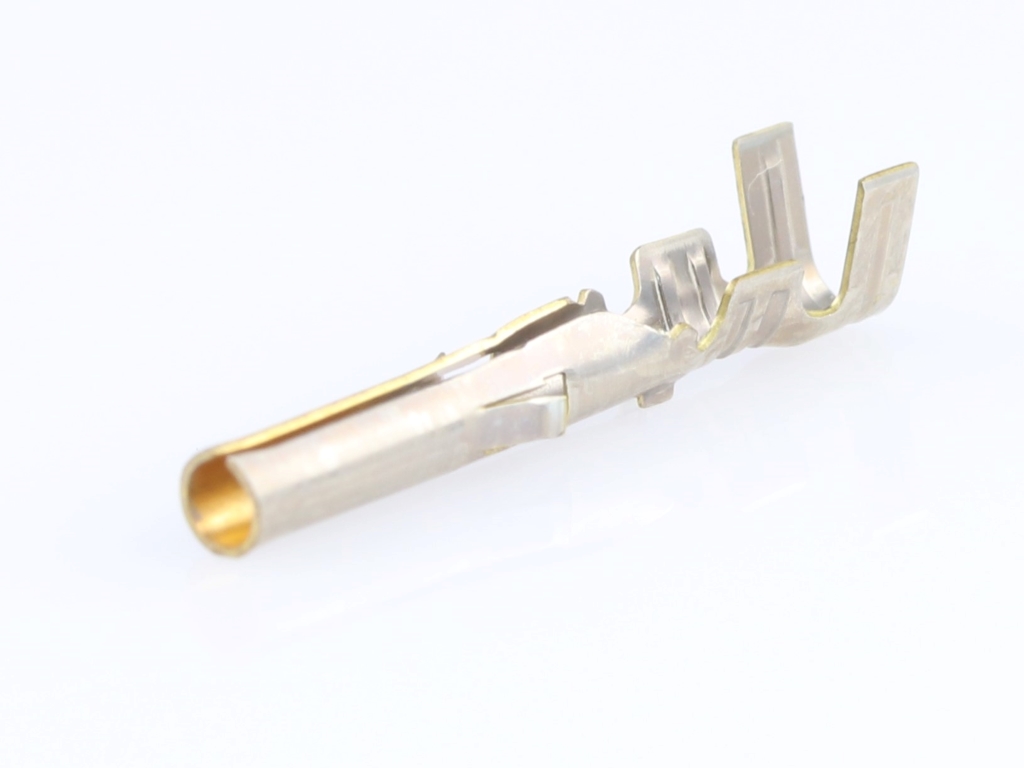

02065102 Standard .062" by Molex
1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Female, with 0.76µm Gold (Au) Plated Brass Contact, 24-18 AWG, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
02-06-5102,
0002065102, 1561-(P561)L |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.42
|
6,574
in stock
|
Buy Now |
|
Newark Electronics
from US$0.39
|
6,500
in stock
|
Buy Now |
|
Farnell
from US$0.55
|
5,917
in stock
|
Buy Now |
|
Heilind Americas
from US$0.26
|
4,139
in stock
|
Buy Now |
|
TTI Americas
from US$0.27
|
2,236
in stock
|
Buy Now |
|
RS Americas
from US$0.56
|
1,231
in stock
|
Buy Now |
|
|
RS
from US$0.29
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.31
|
0
in stock
|
Buy Now |
|
element14
from US$0.40
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.28
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Power, Wire-to-Wire |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Nickel |
| Net Weight | 0.080/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.270µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.52-3.05mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-wire | TME |
| Contact, Socket, 18Awg, Crimp | Newark Electronics |
| CONTACT, SOCKET, 24-18AWG, CRIMP | Farnell |
| 062 FEMALE TERM LOOSE BRS 30AU | Heilind Americas |
| .062 PIN&SOCKET 18-24 AWG FE | TTI Americas |
| CRIMP TERM 1.57MM, FEMALE,18-24AWG, AU, BAG | RS Americas |
| Molex 02-06-5102 Crimp Terminal | RS |
| 062 FEM TERM 18-24 | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 02065102?
Additional datasheets, footprints and schematics for 02065102 are listed on our Part Details page. You can also find images and similar parts to 02065102 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 02065102 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 02065102 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 02065102 fall under?
The 02065102 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 02065102 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 02065102 you can contact the distributor directly for product support, shipping queries etc.
Is the 02065102 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 02065102 have stock available?
Authorised distributors including TME, Newark Electronics, Farnell, Heilind Americas and TTI Americas have stock available or on a lead time for 02065102.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 02065102 often in real-time on the comparison pages.
What if I can't find stock of 02065102?
You can fill out our help required form which you can use to request a quote for 02065102 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
