02091615 Standard .093" by Molex

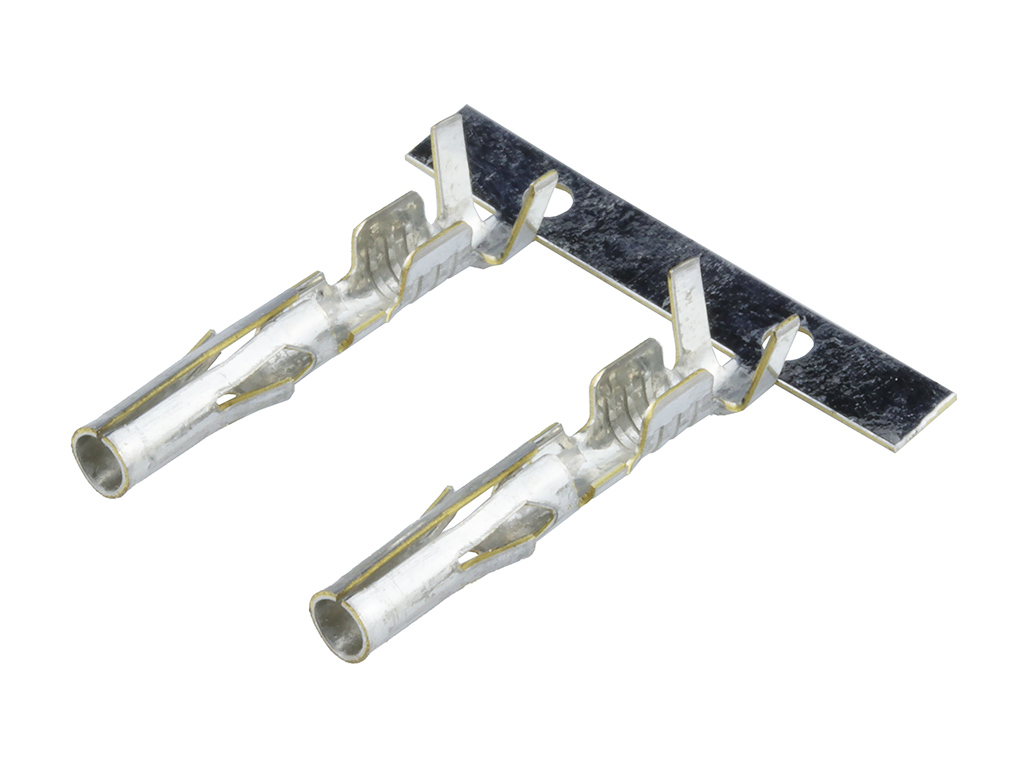

2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 42477, Female, with Tin (Sn) Plated Contact, High Current/Low Engagement Force, 18-14 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
02-09-1615,
0002091615, 42477-0005 |
Where to Buy
Prices starting from US$0.0343
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.07
|
150,500
in stock
|
Buy Now |
|
Farnell
from US$0.06
|
140,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0480
|
57,149
in stock
|
Buy Now |
|
element14
from US$0.07
|
57,149
in stock
|
Buy Now |
|
RS
from US$0.0487
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0348
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0343
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.0364
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 17.0A |
| Voltage Maximum | 250V AC (RMS) |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.417/g |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.56mm max. |
| Wire Size Awg | 14, 16, 18 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 02-09-1615 | TME |
| CONTACT, SOCKET, 18-14AWG, CRIMP | Farnell |
| Contact, Socket, 18-14Awg, Crimp Rohs Compliant: Yes |Molex 02-09-1615 | Newark Electronics |
| Molex 02-09-1615 Crimp Terminal | RS |
| 093 FEMALE TERMINAL CHAIN 14- 8 | Heilind Americas |
| 093 FEMALE TERMINAL CHAIN 14-1 | TTI Asia |
