02095100 Standard .093" by Molex

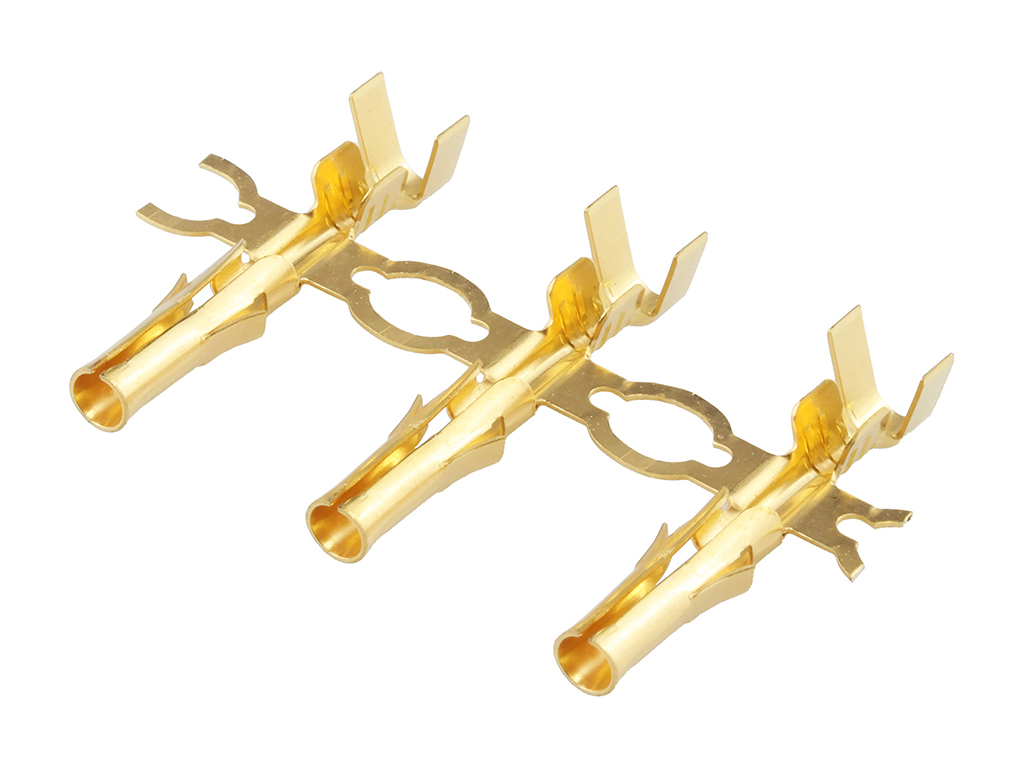

2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1189, Female, with Gold (Au) Plated Brass Contact, 20-14 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
02-09-5100,
0002095100, 1189-A(P550) |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 0.363/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 0.254µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.65-4.06mm |
| Wire Size Awg | 14, 16, 18, 20 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Contact, 1189 Series, Socket, 20 Awg, 14 Awg, Crimp, Brass |Molex 02-09-5100 | Newark Electronics |
| 093 FEMALE BRASS TERM CHN 15A 14-20 | Heilind Americas |
| 2.36MM PIN&SOCKET 14-20 AWG FE | TTI Asia |
