02096100 Standard .093" by Molex

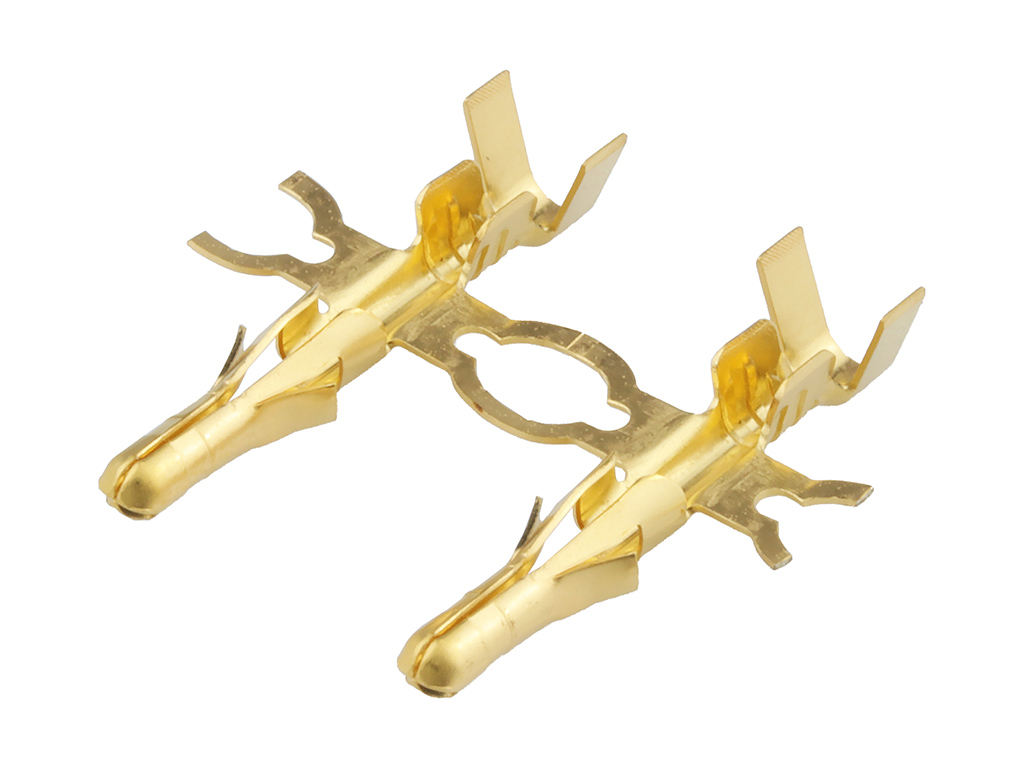

2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Gold (Au) Plated Brass Contact, 20-14 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
02-09-6100,
0002096100, 1190-(550) |
Where to Buy
Prices starting from US$0.48
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.51
|
10,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.70
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.55
|
0
in stock
|
Buy Now |
|
EME
from US$0.54
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 0.414/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 0.254µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.65-4.06mm |
| Wire Size Awg | 14, 16, 18, 20 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 093 MALE TERM CHAIN BRS 15AU 4-20 | Heilind Americas |
| Contact, 1190 Series, Pin, 20 Awg, 14 Awg, Crimp, Brass |Molex 02-09-6100 | Newark Electronics |
| 093 MALE TERM CHAIN BRS 15AU 14-20 | RS Americas |
| 2.36MM PIN&SOCKET 14-20 AWG FE | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 02096100?
Additional datasheets, footprints and schematics for 02096100 are listed on our Part Details page. You can also find images and similar parts to 02096100 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 02096100 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 02096100 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 02096100 fall under?
The 02096100 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 02096100 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 02096100 you can contact the distributor directly for product support, shipping queries etc.
Is the 02096100 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 02096100 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, RS Americas, TTI Americas and Heilind Europe have stock available or on a lead time for 02096100.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 02096100 often in real-time on the comparison pages.
What if I can't find stock of 02096100?
You can fill out our help required form which you can use to request a quote for 02096100 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
