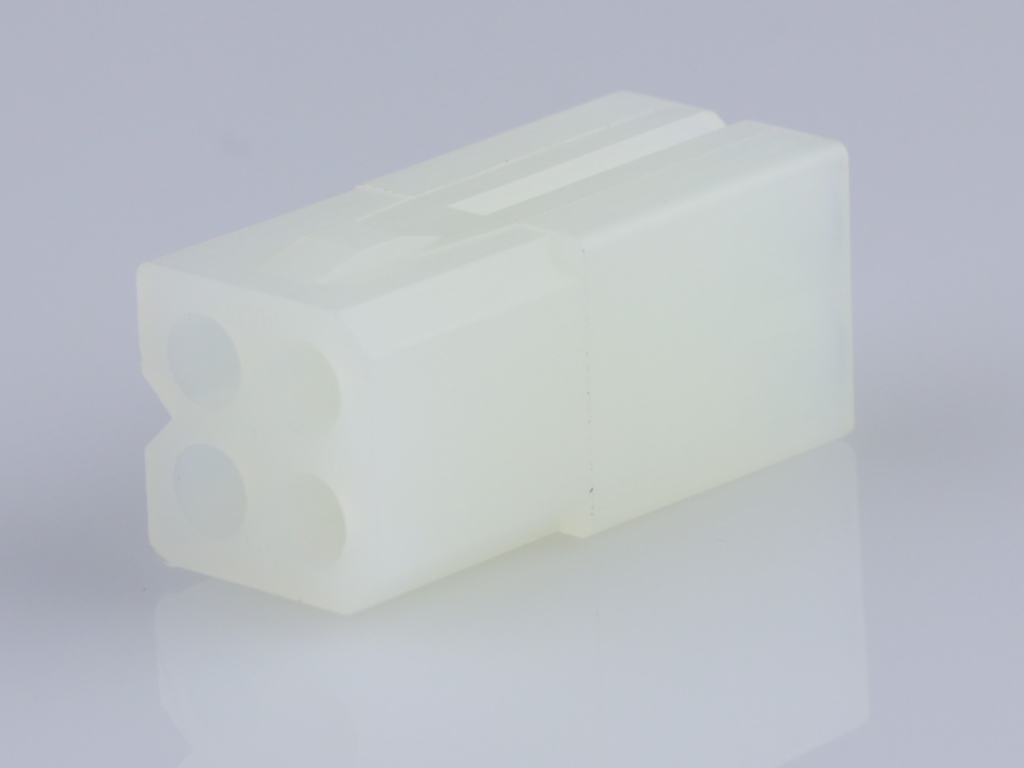

03061044 Standard .062" by Molex
1.57mm Diameter Standard .062" Pin and Socket Receptacle Housing, Dual Row, without Mounting Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-06-1044,
0003061044, 2004-R1 |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.30
|
38,466
in stock
|
Buy Now |
|
Heilind Americas
from US$0.12
|
28,163
in stock
|
Buy Now |
|
RS Americas
from US$0.18
|
17,964
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
9,107
in stock
|
Buy Now |
|
TTI Americas
from US$0.14
|
3,680
in stock
|
Buy Now |
|
element14
from US$0.26
|
1,810
in stock
|
Buy Now |
|
TME
from US$0.22
|
321
in stock
|
Buy Now |
|
|
RS
from US$0.56
|
237
in stock
|
Buy Now |
|
EME
from US$0.18
|
150
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
3
in stock
|
Buy Now |
|
Avnet America
from US$0.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.14
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.12
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Power, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Detail | 2x2 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.056/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 3.68mm |
| Pitch Termination Interface | 3.68mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 4POS, 3.68MM | Farnell |
| 062 PWR CONN RECEPTACLE FREE NG 4CKT | Heilind Americas |
| RECEPTACLE HOUSING, 4 POSITION, DUAL ROW, NYLON, NATURAL, STANDARD, 2004 SERIES | RS Americas |
| 062 Pwr Conn Receptacle Free Hng 4Ckt Rohs Compliant: Yes |Molex 03-06-1044 | Newark Electronics |
| STDR .062 REC 2X2P FREE HANG | TTI Americas |
| CONNECTOR HOUSING, RCPT, 4POS | element14 |
| Connector: wire-wire | TME |
| Molex 03-06-1044 Connector Housing | RS |
| Connector Housing, Standard .062" 2004 Series, Receptacle, 4 Ways, 3.68 mm" | Avnet America |
