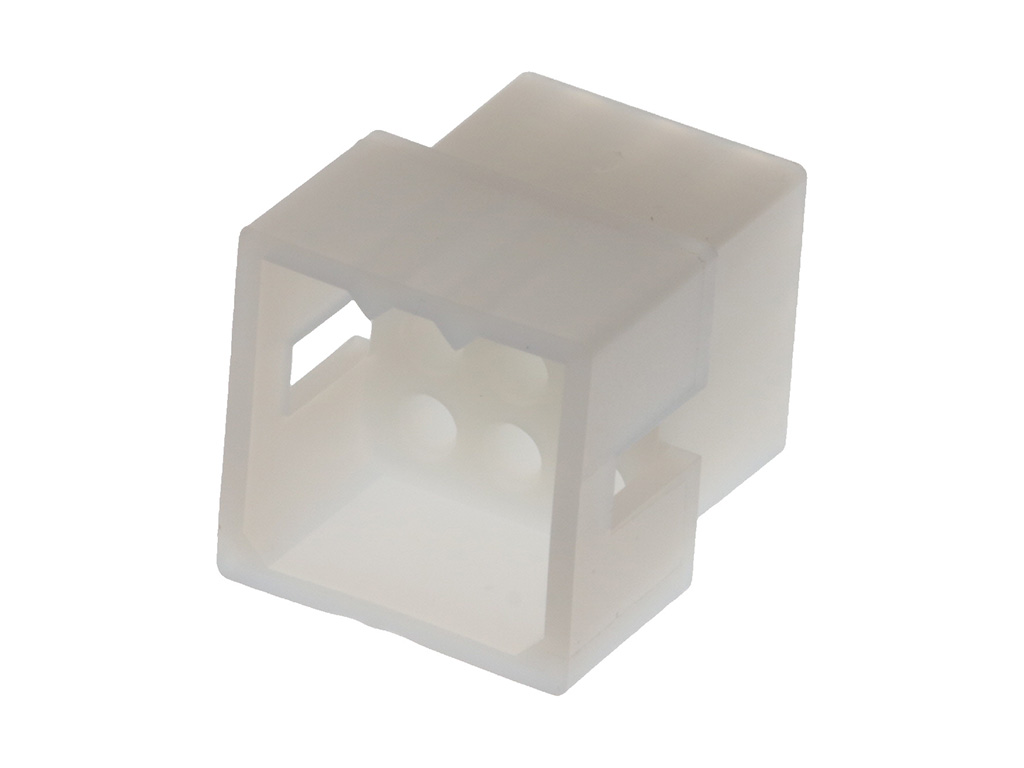

03062092 Standard .062" by Molex
1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 9 Circuits, without Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-06-2092,
0003062092, 1625-9P1 |
Where to Buy
Prices starting from US$0.18
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.23
|
13,670
in stock
|
Buy Now |
|
Heilind Americas
from US$0.18
|
8,990
in stock
|
Buy Now |
|
element14
from US$0.28
|
7,440
in stock
|
Buy Now |
|
Newark Electronics
from US$0.27
|
6,119
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.27
|
2,025
in stock
|
Buy Now |
|
Farnell
from US$0.32
|
1,870
in stock
|
Buy Now |
|
RS Americas
from US$0.39
|
1,020
in stock
|
Buy Now |
|
|
RS
from US$0.53
|
820
in stock
|
Buy Now |
|
TME
from US$0.29
|
678
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.87
|
15
in stock
|
Buy Now |
|
Conrad
from US$0.49
|
15
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
59,740
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,577
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.23
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.23
|
0
in stock
|
Buy Now |
|
EME
from US$0.28
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Detail | 3x3 |
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.807/g |
| Number Of Rows | 3 |
| Panel Mount | No |
| Pitch Mating Interface | 3.68mm |
| Pitch Termination Interface | 3.68mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| STDR .062 PLG 09P FREE HANG | TTI Americas |
| 062 PWR CONN PLUG FREE HNG 9C T | Heilind Americas |
| CONNECTOR HOUSING, PLUG, 9POS | element14 |
| Connector Housing, Plug, 9Pos | Newark Electronics |
| CONNECTOR HOUSING, PLUG, 9POS, 3.68MM | Farnell |
| PLUG, 9-CIRCUIT, 1.57MM STANDARD, SUITABLE FOR CRIMP TERMINALS, 1625 SERIES | RS Americas |
| Molex 03-06-2092 Connector Housing | RS |
| Connector: wire-wire | TME |
| Molex 03062092 Pin Housing 9 Circuits 3.68mm Spacing Natural | Rapid Electronics |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 9 Rastermaß: 3.68 mm 03062092 1 St. Bag | Conrad |
| 1.57MM DIAMETER STANDARD 9CKT | TTI Europe |
| Conn Housing PL 9 POS 3.68mm Crimp ST Cable Mount Bag | Avnet America |
