03066023 Standard .062" by Molex

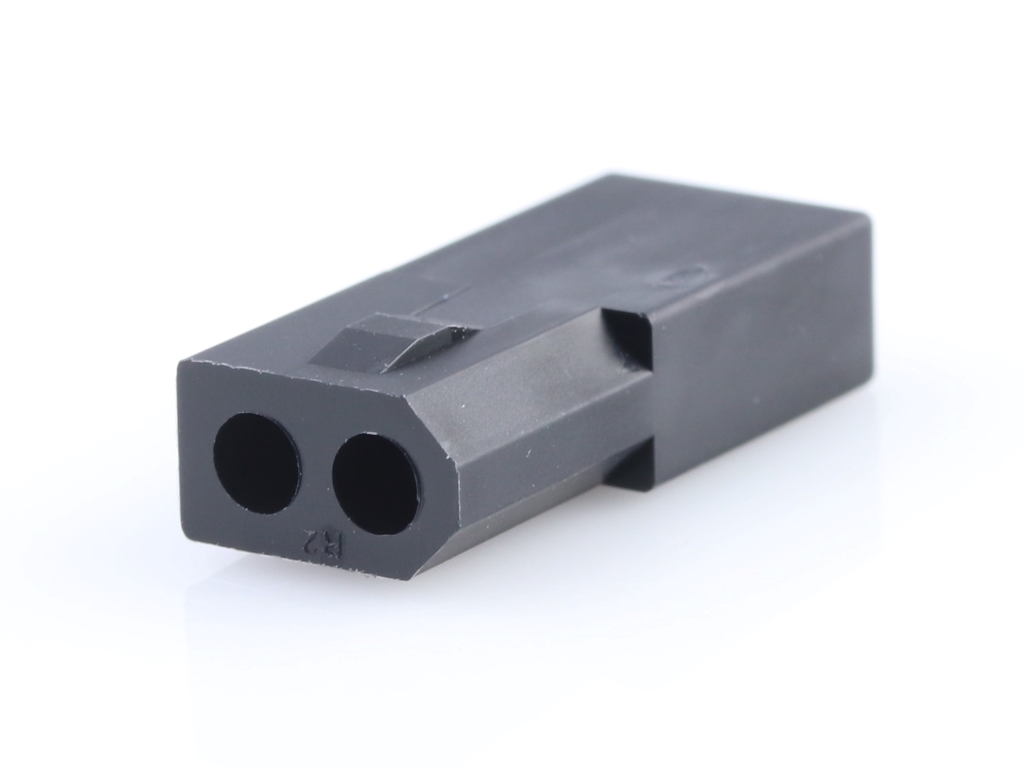

1.57mm Diameter Standard .062" Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-06-6023,
0003066023, 162502R1BK |
Where to Buy
Prices starting from US$0.12
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.16
|
69,770
in stock
|
Buy Now |
|
TTI Americas
from US$0.13
|
7,708
in stock
|
Buy Now |
|
Newark Electronics
from US$0.16
|
758
in stock
|
Buy Now |
|
element14
from US$0.30
|
758
in stock
|
Buy Now |
|
RS
from US$0.32
|
500
in stock
|
Buy Now |
|
TME
from US$0.36
|
233
in stock
|
Buy Now |
|
|
RS Americas
from US$0.18
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.12
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.12
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.12
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.13
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Detail | 1x2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 0.699/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.68mm |
| Pitch Termination Interface | 3.68mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 2POS | Farnell |
| STDR .062 REC 02P | TTI Americas |
| Connector Housing, Rcpt, 2Pos Rohs Compliant: Yes |Molex 03-06-6023 | Newark Electronics |
| Molex 03-06-6023 Connector Housing | RS |
| Contact | TME |
| 1.57MM, HOUSING, RECEPTACLE, FREE HNG,2WAY | RS Americas |
| 1.57MM DIAMETER STANDARD 2KCT | TTI Europe |
| 062 PWR CONN RCPT BLACK FREE NG 2CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 03066023?
Additional datasheets, footprints and schematics for 03066023 are listed on our Part Details page. You can also find images and similar parts to 03066023 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 03066023 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 03066023 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 03066023 fall under?
The 03066023 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 03066023 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 03066023 you can contact the distributor directly for product support, shipping queries etc.
Is the 03066023 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 03066023 have stock available?
Authorised distributors including Farnell, TTI Americas, Newark Electronics, element14 and RS have stock available or on a lead time for 03066023.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 03066023 often in real-time on the comparison pages.
What if I can't find stock of 03066023?
You can fill out our help required form which you can use to request a quote for 03066023 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
