03066062 Standard .062" by Molex

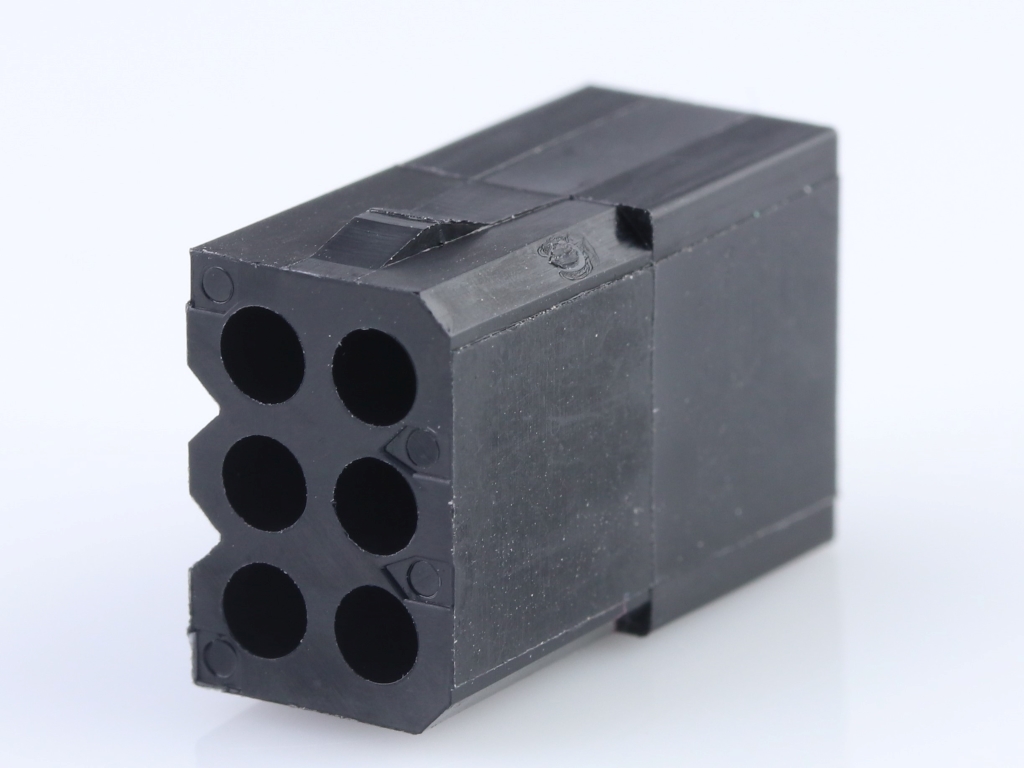

1.57mm Diameter Standard .062" Pin and Socket Receptacle Housing, 6 Circuits, without Mounting Ears, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-06-6062,
0003066062, 1625-06R1-BK |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Detail | 2x3 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.569/g |
| Number Of Rows | 3 |
| Panel Mount | No |
| Pitch Mating Interface | 3.68mm |
| Pitch Termination Interface | 3.68mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 062 PWR CONN RECEPTACLE BLACK 6CKT | Heilind Americas |
| 062 Pwr Conn Receptacle Black 6Ckt |Molex 03-06-6062 | Newark Electronics |
