03091027 Standard .093" by Molex

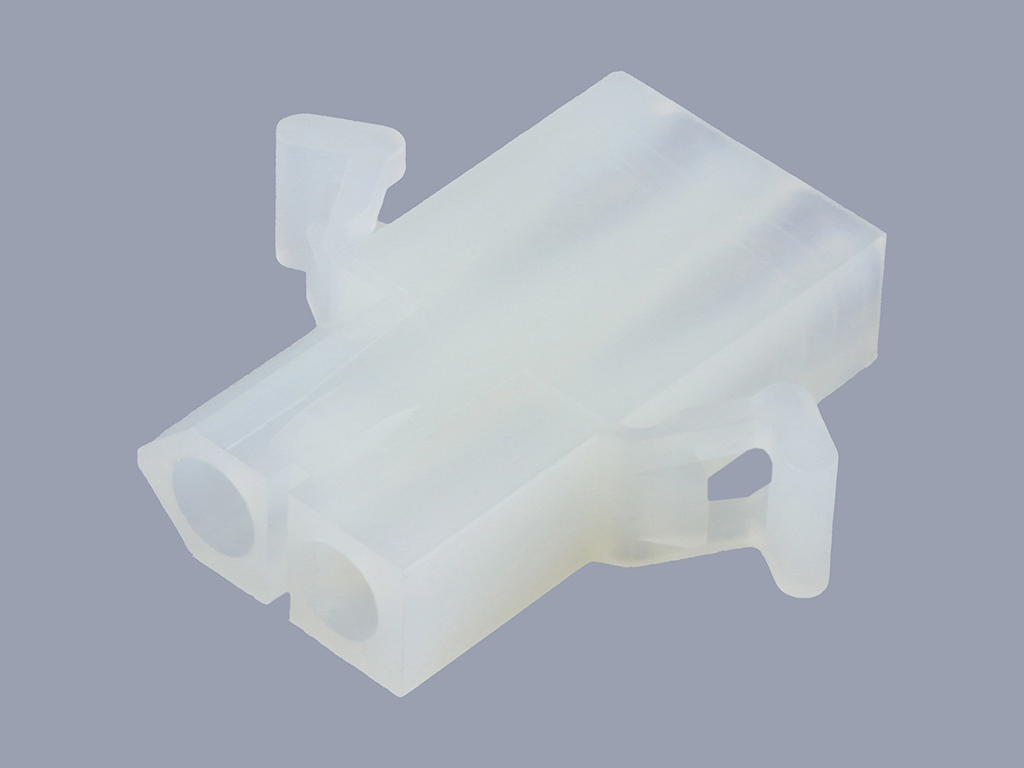

2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 2 Circuits, with Pre-bent Mounting Ears, with Ramps, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-09-1027,
0003091027, 1545-R3 |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.15
|
54,162
in stock
|
Buy Now |
|
Heilind Americas
from US$0.10
|
13,311
in stock
|
Buy Now |
|
element14
from US$0.14
|
7,758
in stock
|
Buy Now |
|
Farnell
from US$0.16
|
5,924
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.14
|
4,500
in stock
|
Buy Now |
|
RS Americas
from US$0.19
|
2,577
in stock
|
Buy Now |
|
TME
from US$0.19
|
1,200
in stock
|
Buy Now |
|
|
RS
from US$0.17
|
990
in stock
|
Buy Now |
|
Offical Electronic
-
|
15
in stock
|
Buy Now |
|
Avnet America
from US$0.10
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.13
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.13
|
0
in stock
|
Buy Now |
|
EME
from US$0.13
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Power, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Detail | 1x2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.720/g |
| Number Of Rows | 1 |
| Panel Mount | Yes |
| Pitch Mating Interface | 6.30mm |
| Pitch Termination Interface | 6.30mm |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector Housing, Rcpt, 2Pos | Newark Electronics |
| 093 PWR CONN RCPT PANL MNT 2C T | Heilind Americas |
| CONNECTOR HOUSING, RCPT, 2POS | element14 |
| SOFT SHELL CONNECTORS, SOFT SHELL, SOCKET, 2 CIRCUIT, CRIMP, 1545 SERIES | RS Americas |
| Contact | TME |
| Molex 03-09-1027 Connector Housing | RS |
| ?????, ?????? & | Avnet America |
| STDR .093 REC 02P PANEL MOUNT | TTI Americas |
| 093 PWR CONN RCPT PANL MNT 2CK | TTI Asia |
| Receptacle Pin or Socket Housing 2P | Carlton-Bates |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 03091027?
Additional datasheets, footprints and schematics for 03091027 are listed on our Part Details page. You can also find images and similar parts to 03091027 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 03091027 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 03091027 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 03091027 fall under?
The 03091027 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 03091027 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 03091027 you can contact the distributor directly for product support, shipping queries etc.
Is the 03091027 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 03091027 have stock available?
Authorised distributors including Newark Electronics, Heilind Americas, element14, Farnell and Heilind Europe have stock available or on a lead time for 03091027.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 03091027 often in real-time on the comparison pages.
What if I can't find stock of 03091027?
You can fill out our help required form which you can use to request a quote for 03091027 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
