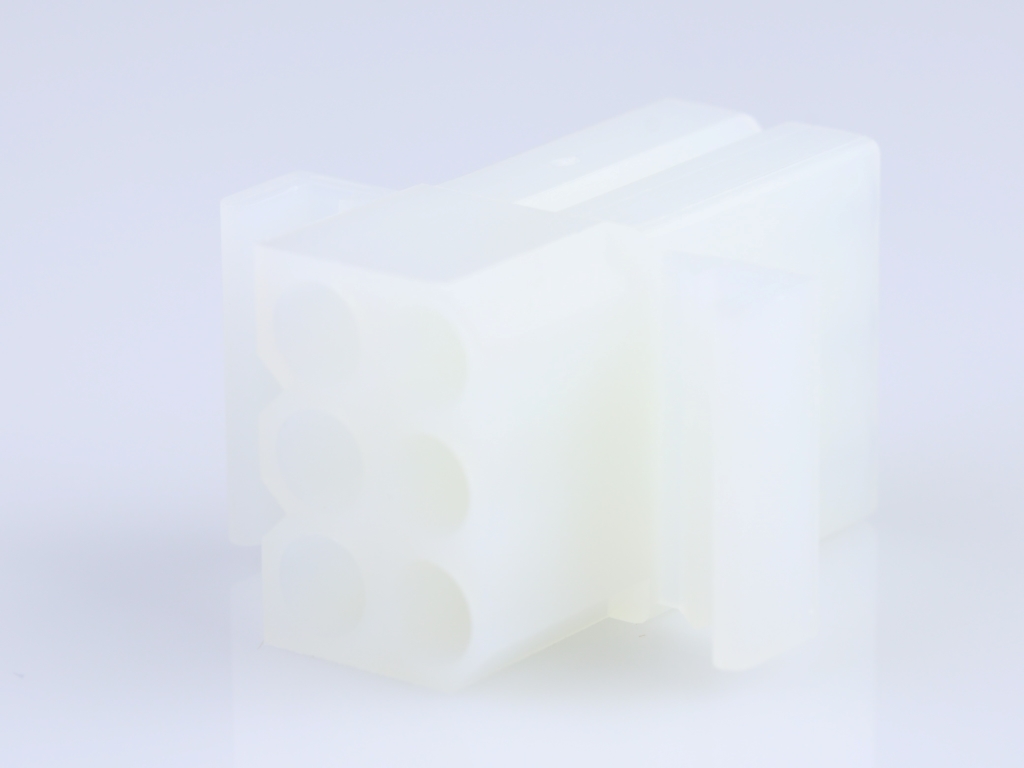

03091062 Standard .093" by Molex
2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 6 Circuits, Dual Row, with Standard Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-09-1062,
0003091062, 1261-R1 |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.26
|
3,717
in stock
|
Buy Now |
|
TME
from US$0.28
|
1,650
in stock
|
Buy Now |
|
Heilind Americas
from US$0.19
|
633
in stock
|
Buy Now |
|
Newark Electronics
from US$0.21
|
481
in stock
|
Buy Now |
|
TTI Americas
from US$0.17
|
430
in stock
|
Buy Now |
|
RS Americas
from US$0.18
|
335
in stock
|
Buy Now |
|
|
RS
from US$0.29
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
0
in stock
|
Buy Now |
|
element14
from US$0.22
|
0
in stock
|
Buy Now |
|
Sager
from US$0.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.14
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Resin | Nylon |
| Net Weight | 3.130/g |
| Number Of Rows | 2 |
| Panel Mount | Yes |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 6POS, 5.03MM | Farnell |
| Connector: wire-wire/PCB | TME |
| 093 PWR CONN RCPT EARS 6CKT | Heilind Americas |
| 093 Pwr Conn Rcpt Ears 6Ckt Rohs Compliant: Yes |Molex 03-09-1062 | Newark Electronics |
| 5.03MM REC 2X03P NAT WTW W/LOK | TTI Americas |
| Molex 03-09-1062 Connector Housing | RS |
| Conn Housing RCP 6 POS 5.03mm Crimp ST Bag | Avnet America |
| RCPT HOUSING, 6POS, NYLON 6.6, NATURAL | element14 |
| Pin & Socket Connectors 093 Pwr Conn Rcpt Ears 6Ckt | Sager |
