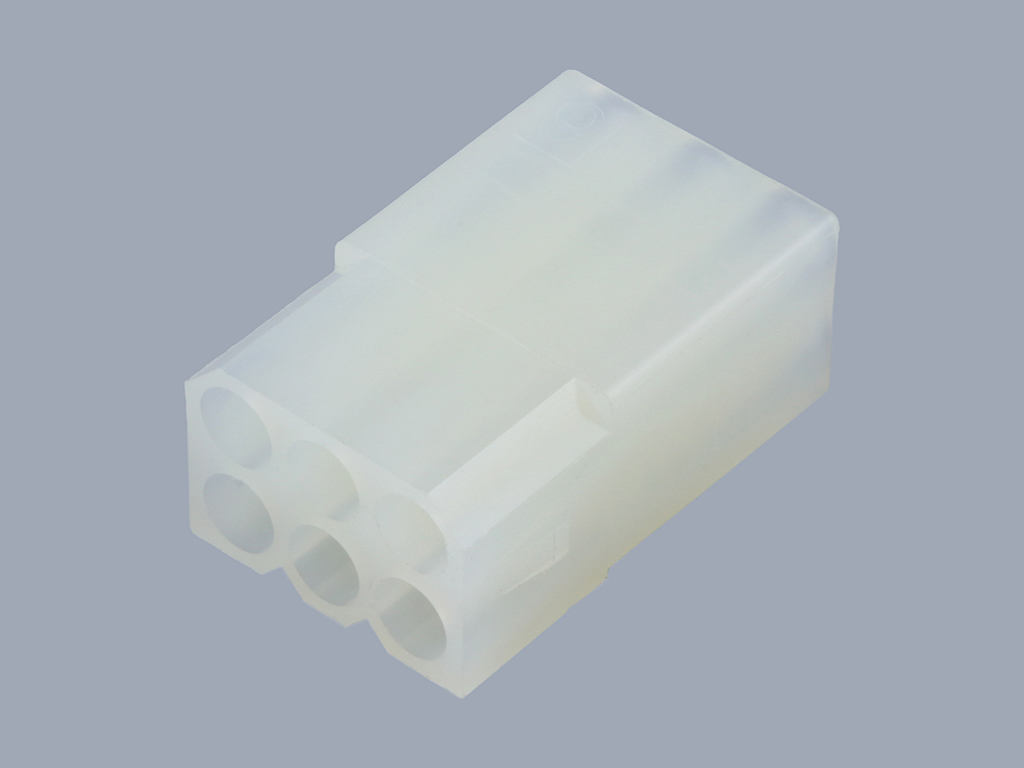

03091064 Standard .093" by Molex
2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 6 Circuits, Dual Row, with Lock Ramps, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-09-1064,
0003091064, 1261-R3 |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.17
|
19,353
in stock
|
Buy Now |
|
Farnell
from US$0.32
|
6,945
in stock
|
Buy Now |
|
TTI Americas
from US$0.16
|
5,179
in stock
|
Buy Now |
|
Avnet America
from US$0.15
|
2,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.25
|
2,185
in stock
|
Buy Now |
|
RS
from US$0.49
|
910
in stock
|
Buy Now |
|
Sager
from US$0.14
|
86
in stock
|
Buy Now |
|
TME
from US$0.34
|
48
in stock
|
Buy Now |
|
|
RS Americas
from US$0.31
|
13
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
75,903
in stock
|
Buy Now |
|
Offical Electronic
-
|
300
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.15
|
0
in stock
|
Buy Now |
|
EME
from US$0.24
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Power, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.618/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
