03092121 Standard .093" by Molex

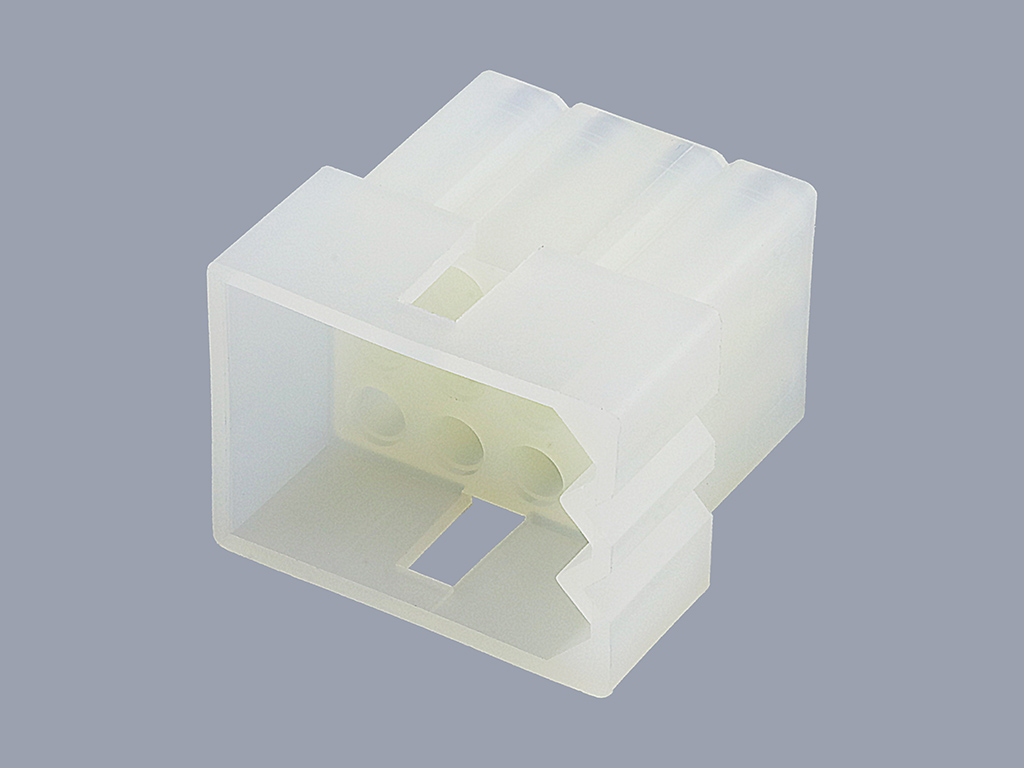

2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 12 Circuits, 3 Rows
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
03-09-2121,
0003092121, 1360-P |
Where to Buy
Prices starting from US$0.24
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.24
|
11,478
in stock
|
Buy Now |
|
Conrad
from US$0.59
|
7,703
in stock
|
Buy Now |
|
Farnell
from US$0.41
|
6,934
in stock
|
Buy Now |
|
element14
from US$0.41
|
6,715
in stock
|
Buy Now |
|
Newark Electronics
from US$0.35
|
5,909
in stock
|
Buy Now |
|
TME
from US$0.44
|
470
in stock
|
Buy Now |
|
RS Americas
from US$0.40
|
135
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
29,327
in stock
|
Buy Now |
|
Avnet America
from US$0.32
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.27
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.24
|
0
in stock
|
Buy Now |
|
EME
from US$0.37
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .093" |
|---|---|
| Application | Power, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 12 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Plug |
| Glow Wire Capable | No |
| Material Resin | Nylon |
| Net Weight | 4.416/g |
| Number Of Rows | 3 |
| Panel Mount | No |
| Pitch Mating Interface | 5.03mm |
| Pitch Termination Interface | 5.03mm |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 093 PWR CONN PLUG FREE HNG 12 KT | Heilind Americas |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 12 Rastermaß: 5.03 mm 03092121 1 St. Bag | Conrad |
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| CONNECTOR HOUSING, PLUG, 12POS | element14 |
| Connector Housing, Plug, 12Pos | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| PLUG HOUSING, 12 CIRCUITS, 3 ROWS, NYLON, STANDARD 1360 SERIES | RS Americas |
| STDR .093 PLG 12P FREE HANG | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 03092121?
Additional datasheets, footprints and schematics for 03092121 are listed on our Part Details page. You can also find images and similar parts to 03092121 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 03092121 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 03092121 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 03092121 fall under?
The 03092121 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 03092121 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 03092121 you can contact the distributor directly for product support, shipping queries etc.
Is the 03092121 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 03092121 have stock available?
Authorised distributors including Heilind Americas, Conrad, Farnell, element14 and Newark Electronics have stock available or on a lead time for 03092121.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 03092121 often in real-time on the comparison pages.
What if I can't find stock of 03092121?
You can fill out our help required form which you can use to request a quote for 03092121 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
