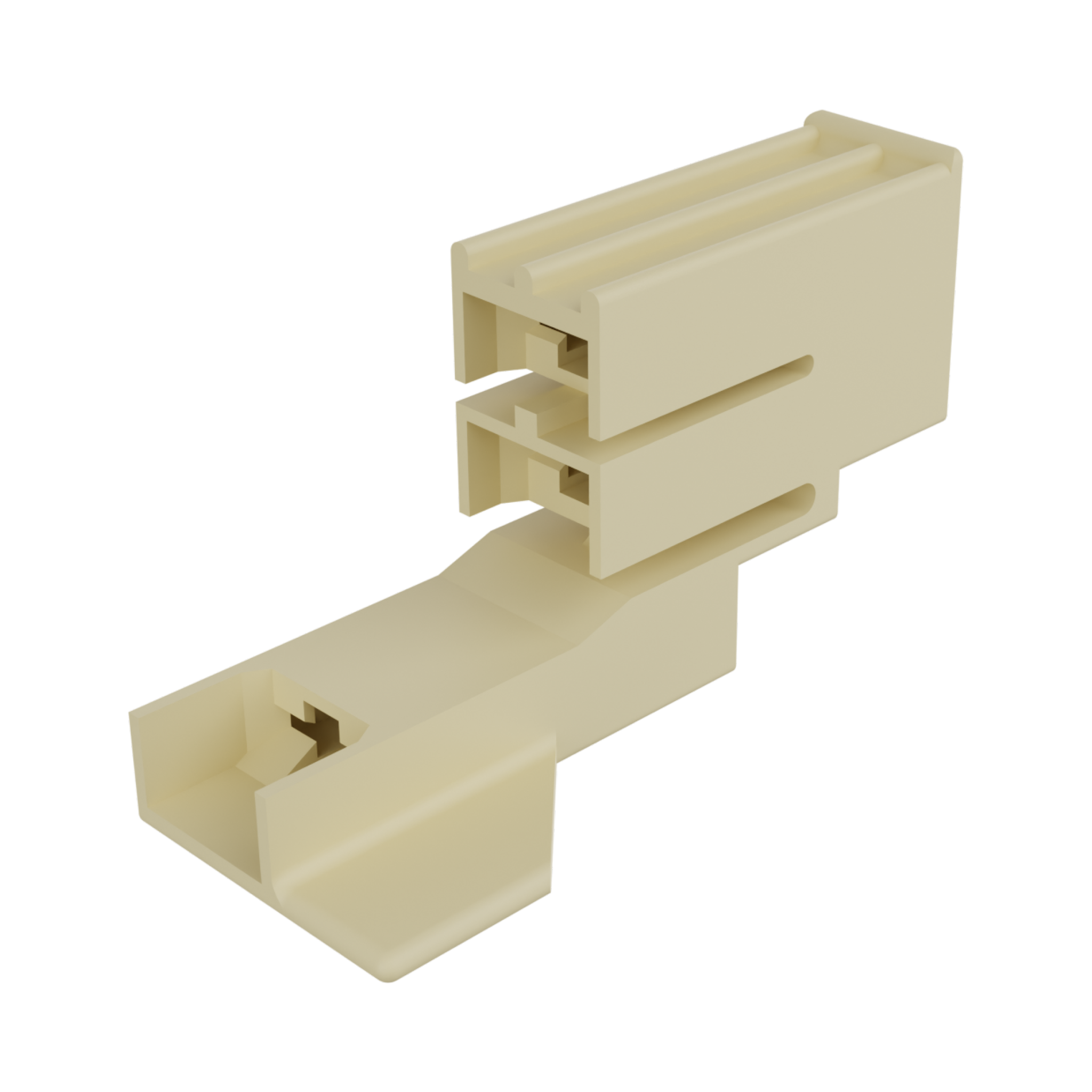

06029034 Flat Blade by Molex
Flat Blade Switch Connector Receptacle Housing, 5.61mm Pitch, Free Hanging, 3 Circuits, Nylon, UL 94V-2, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
06-02-9034,
0006029034, 2191-2002 |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.31
|
8,718
in stock
|
Buy Now |
|
element14
from US$0.29
|
866
in stock
|
Buy Now |
|
Farnell
from US$0.30
|
866
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
8
in stock
|
Buy Now |
|
Heilind Americas
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.20
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Flat Blade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 3 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Resin | Nylon |
| Net Weight | 2.064/g |
| Number Of Rows | 3 |
| Panel Mount | No |
| Pitch Mating Interface | 5.61mm |
| Pitch Termination Interface | 5.61mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +75°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Relay & Swi Connectors O/Mntear 3Ckt Rohs Compliant: Yes |Molex 06-02-9034 | Newark Electronics |
| RCPT HOUSING, PA 66, 3POS | element14 |
| RELAY & SWI CONNECTORS O/MNTEA R 3CKT PROPRIETARY PART | Heilind Americas |
