08500108 KK 396,KK 508 by Molex

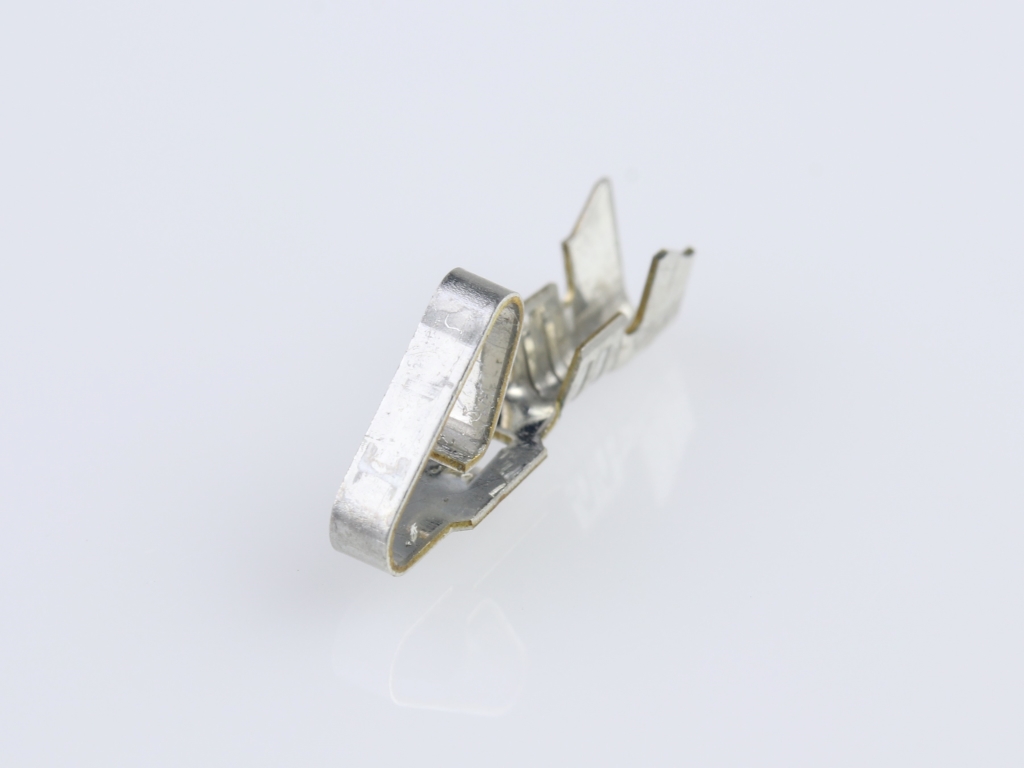

KK 396 Crimp Terminal 2578, 26-22 AWG, Bag, Brass, 2.540µm Tin (Sn)
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
08-50-0108,
0008500108, 2578-(P909)L |
Where to Buy
Prices starting from US$0.0427
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.06
|
20,060
in stock
|
Buy Now |
|
RS
from US$0.11
|
16,800
in stock
|
Buy Now |
|
Farnell
from US$0.10
|
14,800
in stock
|
Buy Now |
|
element14
from US$0.06
|
12,564
in stock
|
Buy Now |
|
Newark Electronics
from US$0.08
|
12,538
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0483
|
9,431
in stock
|
Buy Now |
|
EME
from US$0.05
|
6,600
in stock
|
Buy Now |
|
TME
from US$0.07
|
2,673
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0441
|
2,000
in stock
|
Buy Now |
|
|
RS Americas
from US$0.09
|
1,944
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,078
in stock
|
Buy Now |
|
Offical Electronic
-
|
195
in stock
|
Buy Now |
|
Avnet America
from US$0.0427
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0428
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396,KK 508 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.150/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.65mm max. |
| Wire Size Awg | 22, 24, 26 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK .156 CRMP 22-26 AWG FE SN | TTI Americas |
| Molex 08-50-0108 Crimp Terminal | RS |
| CONTACT, SOCKET, 22-26AWG, CRIMP | Farnell |
| CONTACT, SOCKET, 22AWG, CRIMP | element14 |
| Contact, Kkr 396, 2578 Series, Socket, 26 Awg, 22 Awg, Crimp, Brass Rohs Compliant: Yes |Molex 08-50-0108 | Newark Electronics |
| KK 156 TERMINAL CRIMP 22-26 AW | Heilind Americas |
| Contact | TME |
| LOOSE TERMINALS | TTI Europe |
| CRIMP TERMINAL, 22-26 AWG, TIN-PLATED BRASS, BULK PACKAGING, 2578 SERIES | RS Americas |
| Contact, KK 578, Socket, Crimp, 22 AWG, Tin Plated Contacts | Avnet America |
