08500110 KK by Molex

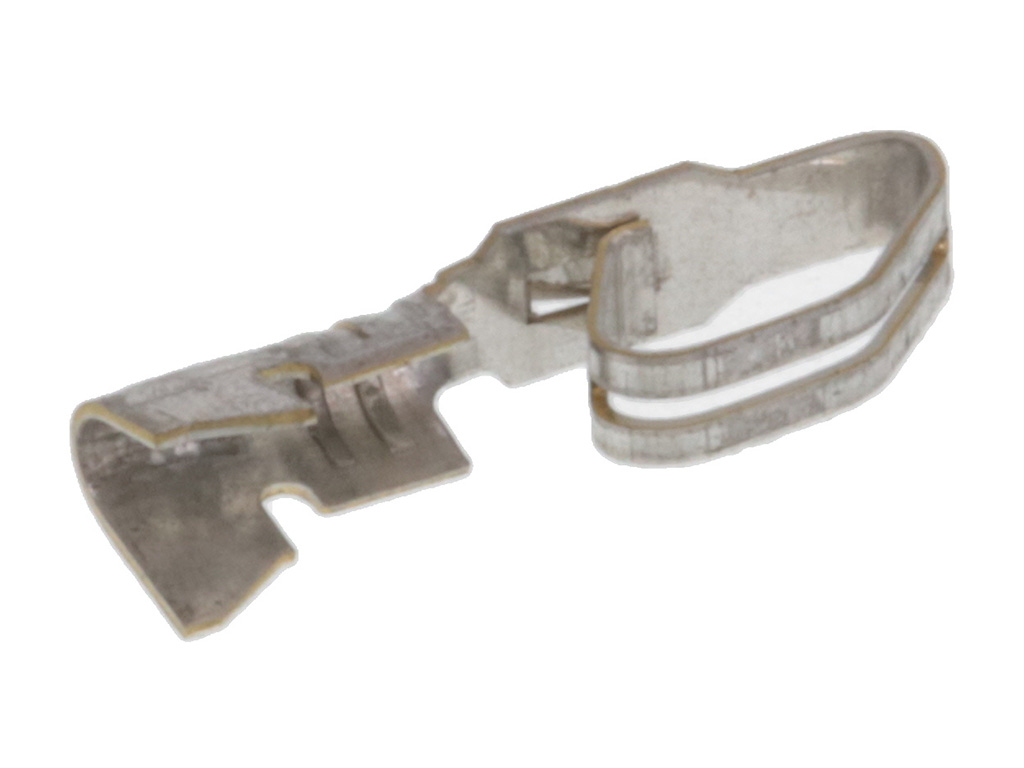

KK Crimp Terminal, Series 2477, Humpback, with Tin (Sn) Plated Brass Contact, 24-18 AWG, Loose
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
08-50-0110,
0008500110, 2477-(P909)L |
Where to Buy
Prices starting from US$0.05
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.09
|
8,261
in stock
|
Buy Now |
|
Farnell
from US$0.12
|
8,261
in stock
|
Buy Now |
|
Heilind Americas
from US$0.11
|
17
in stock
|
Buy Now |
|
Newark Electronics
from US$0.12
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.05
|
0
in stock
|
Buy Now |
|
Toby Electronics
from US$0.09
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.25A, 5.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.162/g |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 2.54-2.79mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, 18AWG, CRIMP | element14 |
| KK 156 TERMINAL CRIMP HUMPBAC TIN | Heilind Americas |
| Contact, Socket, 18Awg, Crimp Rohs Compliant: Yes |Molex 08-50-0110 | Newark Electronics |
