08500133 KK 396,KK 508 by Molex

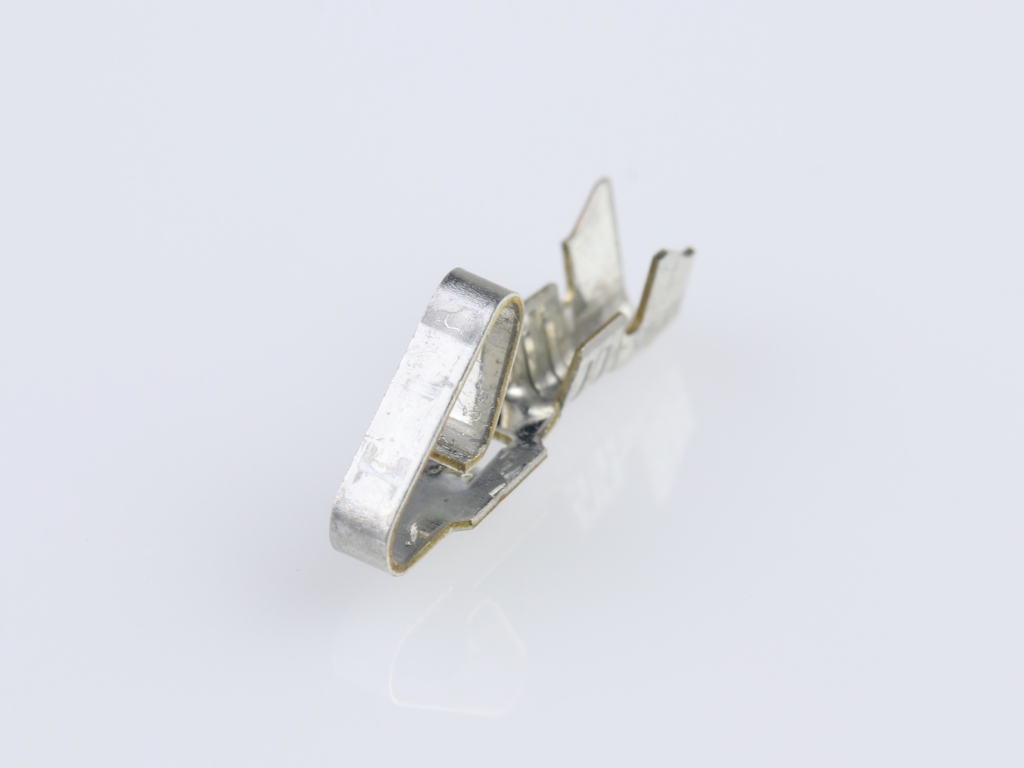

KK 396 Crimp Terminal 2578, 26-22 AWG, Reel, Phosphor Bronze, 2.540µm Tin (Sn)
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
08-50-0133,
0008500133, 2578-B-P909 |
Where to Buy
Prices starting from US$0.0188
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.0440
|
259,000
in stock
|
Buy Now |
|
Farnell
from US$0.0446
|
258,300
in stock
|
Buy Now |
|
TME
from US$0.0360
|
252,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.0266
|
133,000
in stock
|
Buy Now |
|
element14
from US$0.05
|
21,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.0232
|
21,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0208
|
10,500
in stock
|
Buy Now |
|
RS
from US$0.0482
|
4,900
in stock
|
Buy Now |
|
Avnet America
from US$0.0240
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.0260
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0290
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0188
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396,KK 508 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.150/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.65mm max. |
| Wire Size Awg | 22, 24, 26 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Crimp Contact | Newark Electronics |
| PIN AND SOCKET CONTACTS | Farnell |
| Connector: wire-board | TME |
| 3.96MM CRIMP TERMINALS | TTI Europe |
| KK 156 TERMINAL CRIMP 22-26 AWG TIN | element14 |
| KK .156 CRMP 22-26 AWG FE SN | TTI Americas |
| KK 156 TERMINAL CRIMP 22-26 AW | Heilind Americas |
| Molex 08-50-0133 Crimp Terminal | RS |
| Contact SKT Crimp ST Cable Mount Reel | Avnet America |
| KK 396,2578 SERIES NUMBER PCB CONN CONTACT, FEMALE, CRIMP, TIN PLATING 22 TO 26 AWG | RS Americas |
