08500135 KK 254 by Molex

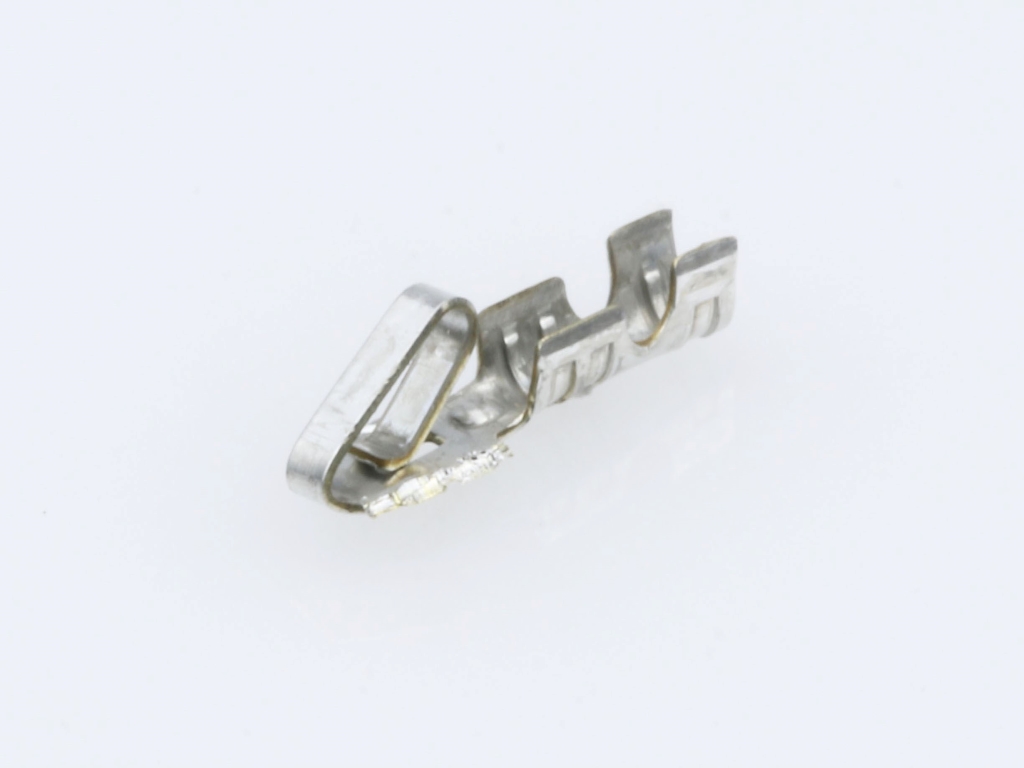

KK 254 Crimp Terminal 4809, 30-22 AWG, Hot Tin Dip, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
08-50-0135,
0008500135, 4809-(P918) |
Where to Buy
Prices starting from US$0.0069
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.0437
|
598,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0130
|
28,000
in stock
|
Buy Now |
|
element14
from US$0.0374
|
28,000
in stock
|
Buy Now |
|
RS
from US$0.0102
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.0225
|
0
in stock
|
Buy Now |
|
TME
from US$0.0115
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.0310
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0258
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0069
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1.780/g |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.57mm max. |
| Wire Size Awg | 22, 24, 26, 28, 30 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, 22-30AWG, CRIMP | Farnell |
| Contact, Socket, 30-22Awg, Crimp | Newark Electronics |
| CONTACT, SOCKET, 30-22AWG, CRIMP | element14 |
| Molex 08-50-0135 Crimp Terminal | RS |
| Contact SKT Crimp ST Cable Mount Reel | Avnet America |
| Contact | TME |
| 2.54MM KK ANTI-FH CRIMP TERM CHAIN TIN | RS Americas |
| 2.5MM KK CRP TERM CHN IL TOP ED .38 | Heilind Americas |
