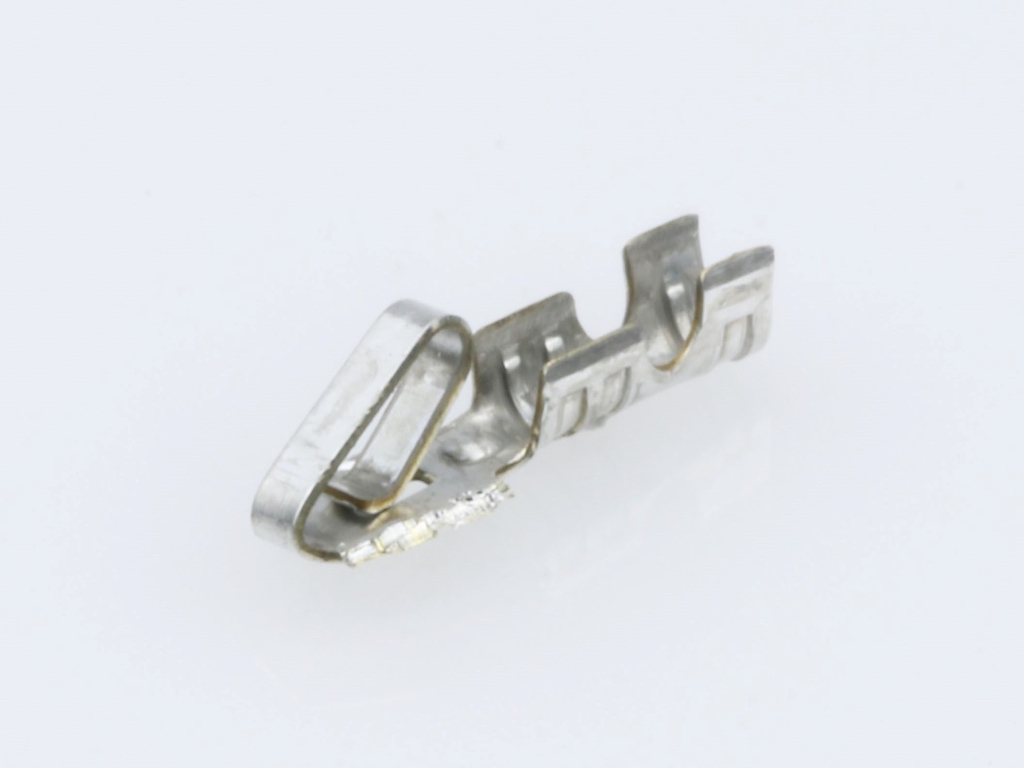

08650804 Cat Ear,KK 254 by Molex
KK 254 Cat Ear Crimp Terminal 41572, Reel Tin (Sn)
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
08-65-0804,
0008650804, 41572-A(P909) |
Where to Buy
Prices starting from US$0.0095
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.0115
|
75,000
in stock
|
Buy Now |
|
element14
from US$0.0397
|
7,554
in stock
|
Buy Now |
|
Farnell
from US$0.0404
|
6,709
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0200
|
805
in stock
|
Buy Now |
|
Avnet America
from US$0.0137
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.0270
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.0289
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.0115
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0113
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0095
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0145
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Cat Ear,KK 254 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 75.000/mg |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.57mm max. |
| Wire Size Awg | 22, 24, 26, 28, 30 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK 100 TERM CRP 22-30 AWG CAT | Heilind Americas |
| CONTACT, SOCKET, 22AWG, CRIMP | element14 |
| Contact, Socket, 22Awg, Crimp | Newark Electronics |
| Contact SKT Crimp ST Cable Mount Reel | Avnet America |
| KK 100 TERM CRP 22-30 AWG CAT EAR TIN | RS Americas |
| KK® 254 08650804 Molex Inhalt: 1 St. | Conrad |
| KK CAT EAR CRMP FE SN | TTI Americas |
| KK 254 CAT EAR CRIMP TERMINAL TIN | Rutronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 08650804?
Additional datasheets, footprints and schematics for 08650804 are listed on our Part Details page. You can also find images and similar parts to 08650804 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 08650804 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 08650804 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 08650804 fall under?
The 08650804 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 08650804 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 08650804 you can contact the distributor directly for product support, shipping queries etc.
Is the 08650804 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 08650804 have stock available?
Authorised distributors including Heilind Americas, element14, Farnell, Newark Electronics and Avnet America have stock available or on a lead time for 08650804.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 08650804 often in real-time on the comparison pages.
What if I can't find stock of 08650804?
You can fill out our help required form which you can use to request a quote for 08650804 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
