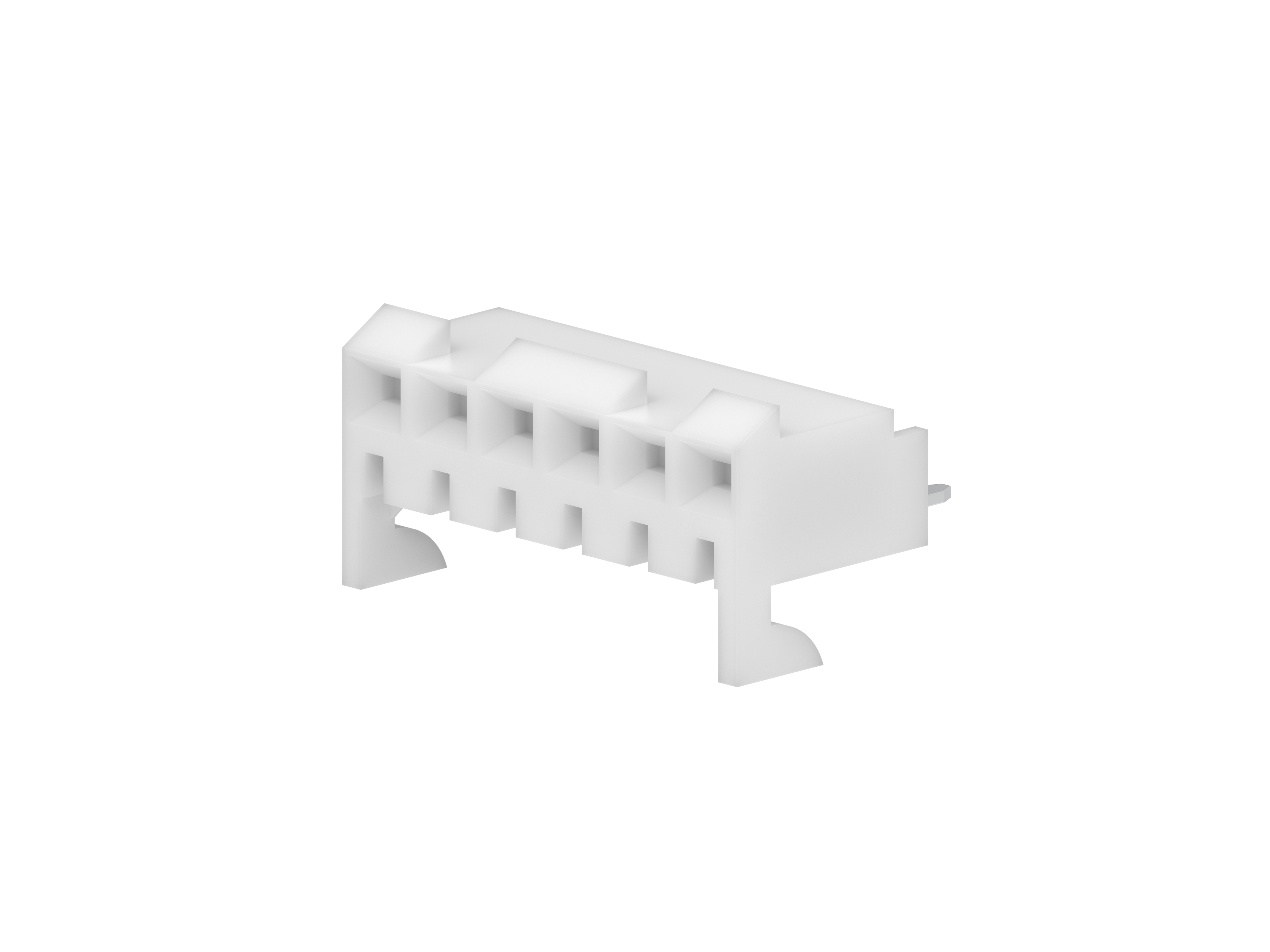

09483066 KK 396 by Molex
KK 396 PC Board Connector, Top Entry, with Ramp, Brass, 3.05mm Tail Length, 0.38µm Gold (Au) Selective Plating, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-48-3066,
0009483066, A-41815-0471 |
Where to Buy
Prices starting from US$0.22
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.31
|
3,695
in stock
|
Buy Now |
|
Farnell
from US$1.08
|
3,644
in stock
|
Buy Now |
|
TME
from US$0.74
|
3,054
in stock
|
Buy Now |
|
Newark Electronics
from US$0.22
|
104
in stock
|
Buy Now |
|
element14
from US$0.92
|
75
in stock
|
Buy Now |
|
Avnet America
from US$0.61
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.42
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.67
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.5A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.034/g |
| Number Of Rows | 1 |
| Orientation | Top Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.05mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 3.96 mm 09483066 1 St. Tray | Conrad |
| CONN, RCPT, 6POS, 1ROW, 3.96MM, TH | Farnell |
| Connector: wire-board | TME |
| Connector, Rcpt, 6Pos, 1Row, 3.96Mm | Newark Electronics |
| CONNECTOR, RCPT, 6POS, 1ROW, 3.96MM | element14 |
| Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray | Avnet America |
| KK 156 PCB ASSY TOP 06 CKTS GOLD | RS Americas |
| KK 156 PCB ASSY TOP 06 CKTS OLD | Heilind Europe |
| KK .156 REC 06P AU | TTI Asia |
