09483074 KK 396 by Molex

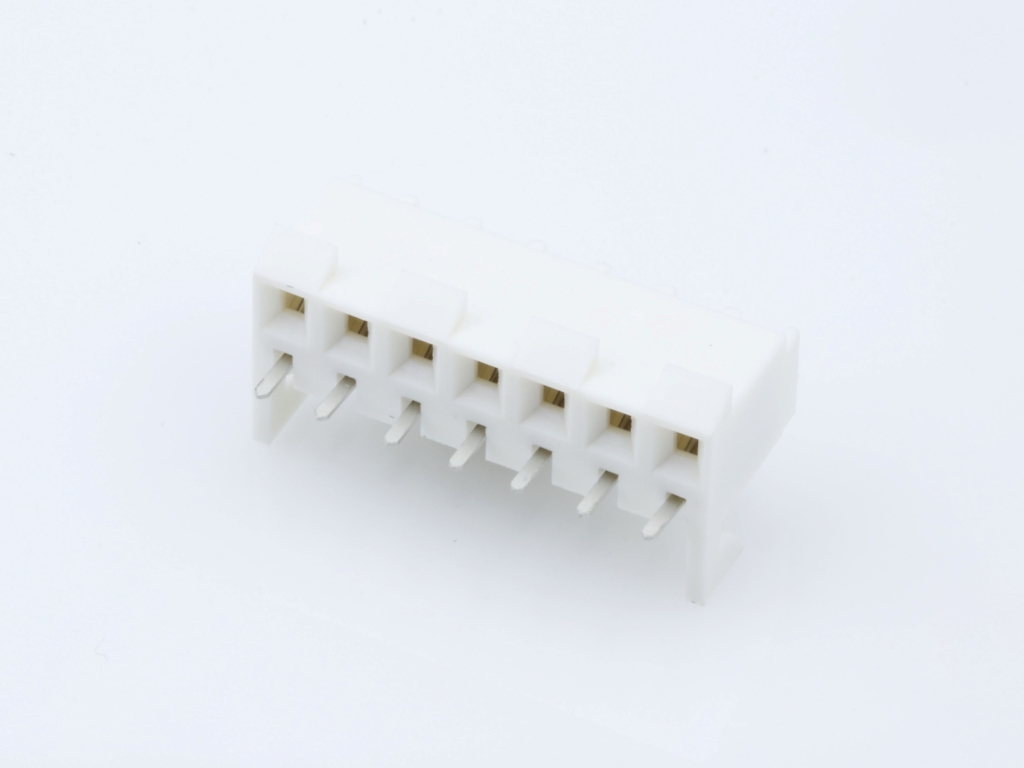

KK 396 PC Board Connector, Bottom Entry, with Ramp, Brass, 3.18mm Tail Length, 0.38µm Gold (Au) Selective Plating, 7 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-48-3074,
0009483074, A-41815-0444 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.92
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.69
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
Sager
from US$0.71
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.73
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.58
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 7 |
| Circuits Maximum | 7 |
| Color Resin | Natural |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.240/g |
| Number Of Rows | 1 |
| Orientation | Bottom Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.18mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
