09483105 KK 396 by Molex

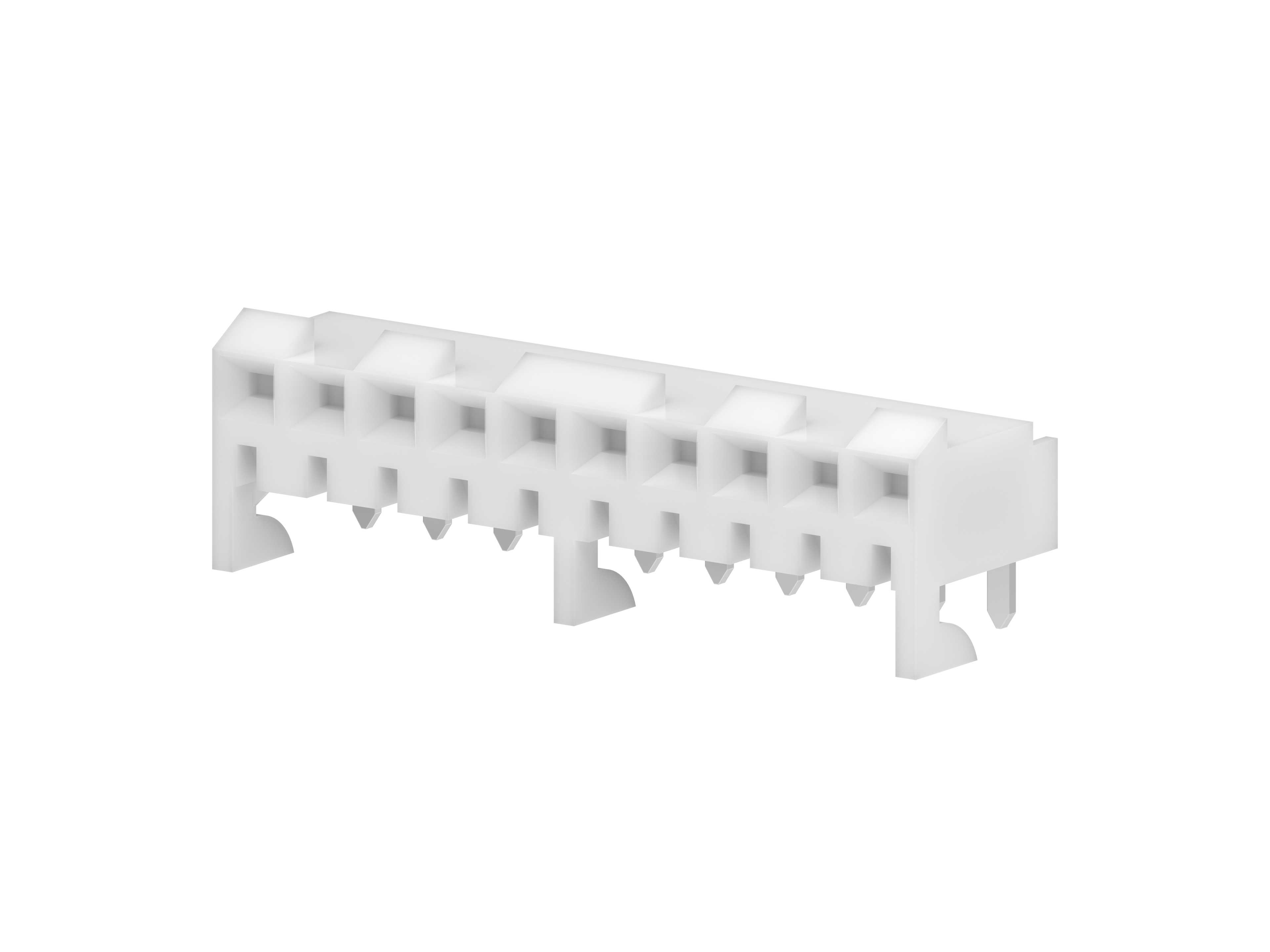

KK 396 PC Board Connector, Right-Angle, with Ramp, Brass, 3.68mm Tail Length, 0.38µm Gold (Au) Selective Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-48-3105,
0009483105, A-41815-0433 |
Where to Buy
Prices starting from US$1.16
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.66
|
1,848
in stock
|
Buy Now |
|
TME
from US$1.16
|
417
in stock
|
Buy Now |
|
Newark Electronics
from US$1.28
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.35
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.71
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.23
|
0
in stock
|
Buy Now |
|
Sager
from US$1.25
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.18
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.95
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.5A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 3.257/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.68mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
