09484059 KK 396 by Molex

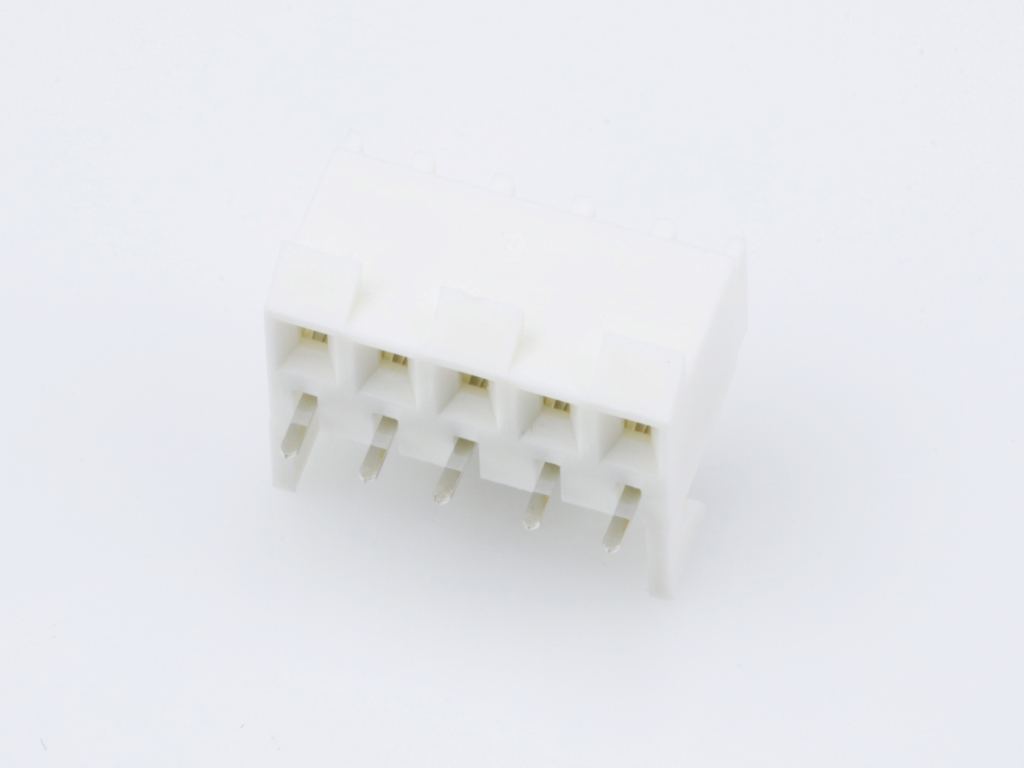

KK 396 PC Board Connector, Bottom Entry, with Ramp, Phosphor Bronze, 3.18mm Tail Length, 1.52µm Matte Tin (Sn) Plating, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-48-4059,
0009484059, A-41815-0033 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.82
|
3,087
in stock
|
Buy Now |
|
TME
from US$0.72
|
2,069
in stock
|
Buy Now |
|
Farnell
from US$0.88
|
1,863
in stock
|
Buy Now |
|
RS
from US$1.32
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.44
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.22
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.56
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Board-to-Board, Power |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.5A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Natural |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Polyester |
| Net Weight | 1.600/g |
| Number Of Rows | 1 |
| Orientation | Bottom Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.18mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
