09484158 KK 396 by Molex

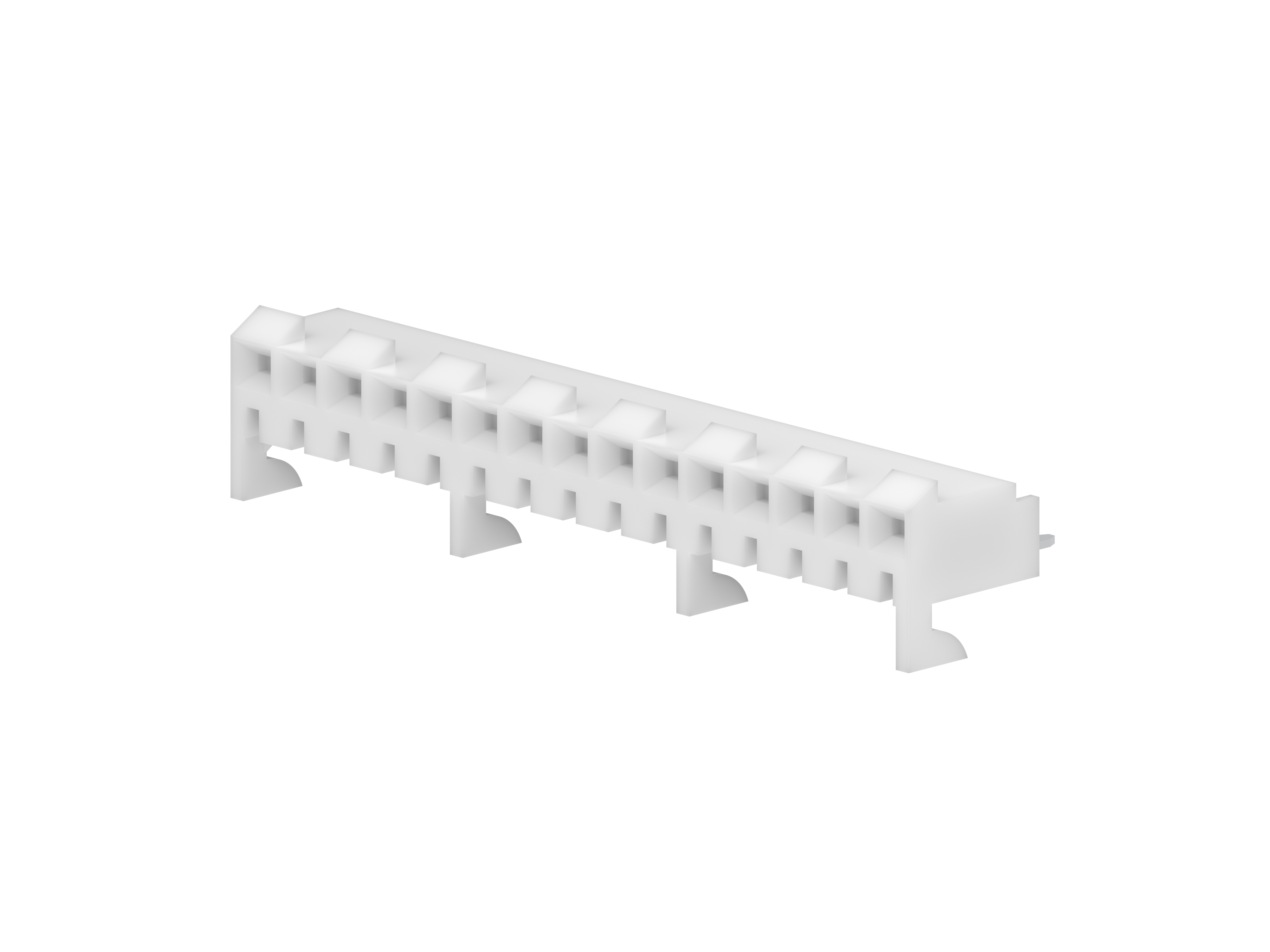

KK 396 PC Board Connector, Top Entry, with Ramp, Phosphor Bronze, 3.05mm Tail Length, 1.52µm Matte Tin (Sn) Plating, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-48-4158,
0009484158, A-41815-0071 |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Natural |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Polyester |
| Net Weight | 5.023/g |
| Number Of Rows | 1 |
| Orientation | Top Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.05mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
