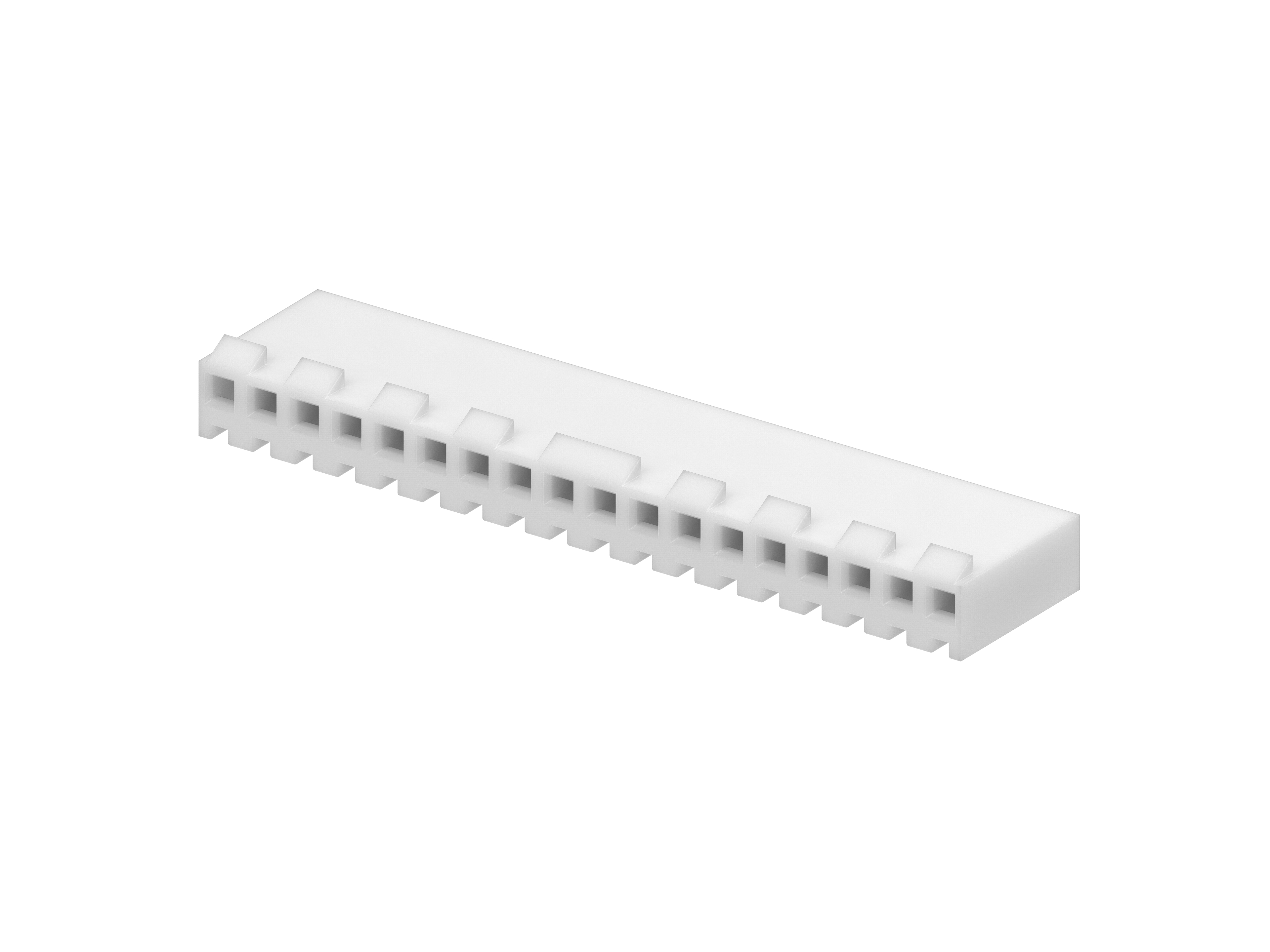

09503181 KK 396 by Molex
KK 3.96mm Crimp Housing, Friction Ramp, 18 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-3181,
0009503181, 2139-18A |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.24
|
3,030
in stock
|
Buy Now |
|
Farnell
from US$0.91
|
2,727
in stock
|
Buy Now |
|
Avnet America
from US$0.16
|
2,400
in stock
|
Buy Now |
|
TME
from US$0.43
|
1,950
in stock
|
Buy Now |
|
Newark Electronics
from US$0.82
|
1,751
in stock
|
Buy Now |
|
element14
from US$0.70
|
527
in stock
|
Buy Now |
|
RS
from US$1.07
|
230
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
173
in stock
|
Buy Now |
|
|
RS Americas
from US$0.89
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.29
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.47
|
0
in stock
|
Buy Now |
|
EME
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Power, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 18 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 4.624/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 18 Rastermaß: 3.96 mm 09503181 1 St. Bag | Conrad |
| CONNECTOR HOUSING, RCPT, 18POS, 3.96MM | Farnell |
| Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount Bag | Avnet America |
| Connector: wire-board | TME |
| Wtb Housing, Rcpt, 18Pos, 1Row, 3.96Mm | Newark Electronics |
| WTB HOUSING, RCPT, 18POS, 1ROW, 3.96MM | element14 |
| Molex 09-50-3181 Connector Housing | RS |
| KK 396 SERIES 3.96MM PITCH 18 WAY 1 ROW FEMALE STRAIGHT PCB HOUSING 2139 | RS Americas |
| 156 KK TERM HSG W/RAMP NYLON 18CKT | Heilind Europe |
| SPOX .156 HSG 20P FEMALE | TTI Asia |
