09503231 KK 396 by Molex

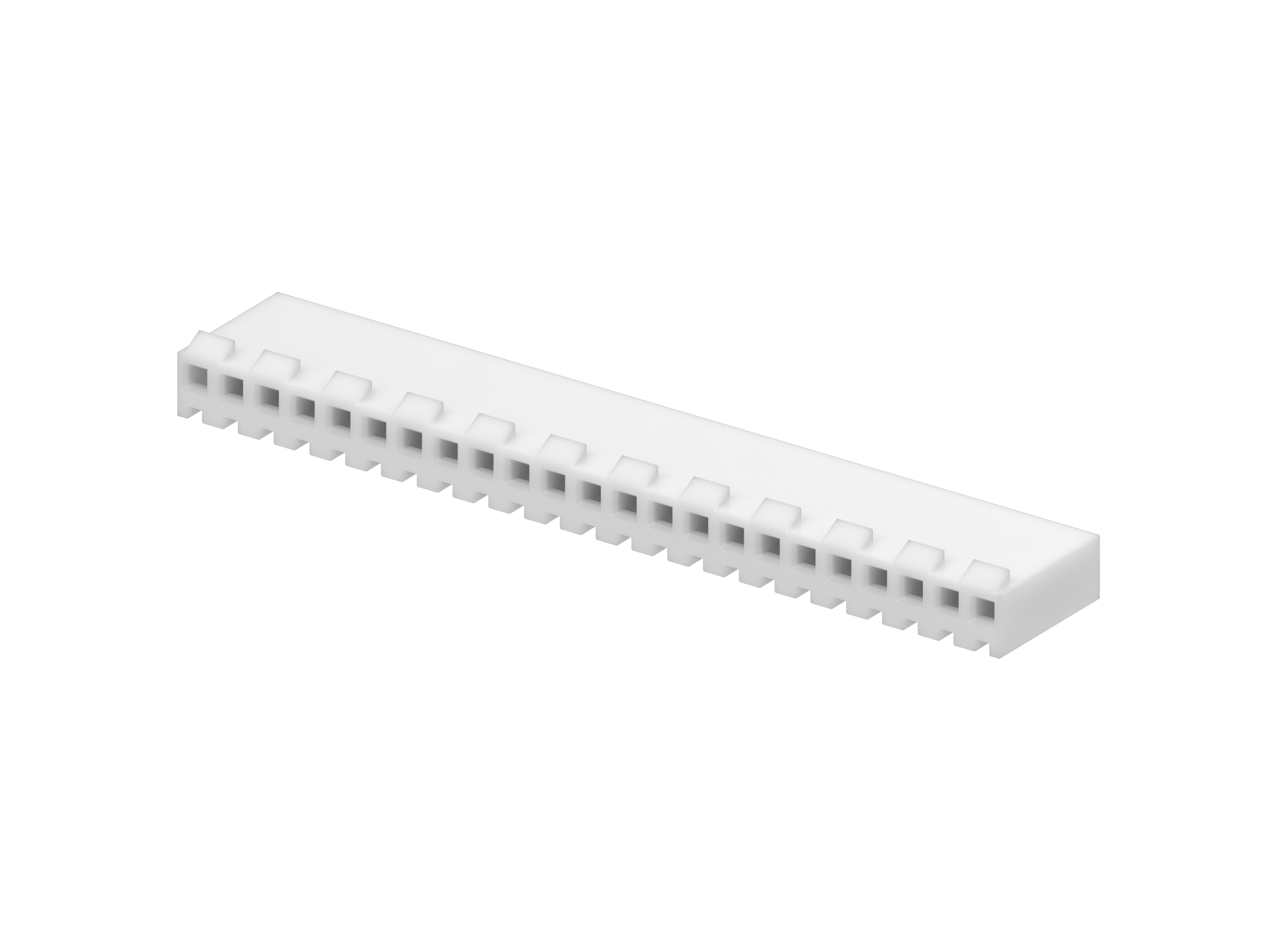

KK 3.96mm Crimp Housing, Friction Ramp, 23 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-3231,
0009503231, 2139-23A |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 23 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 5.904/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| HEADERS, 156 KK TERM HSG W/ RAMP NYLON 23CKT | RS Americas |
| Headers & Wire Housings 156 KK Term Hsg W/Ramp Nylon 23Ckt | Sager |
