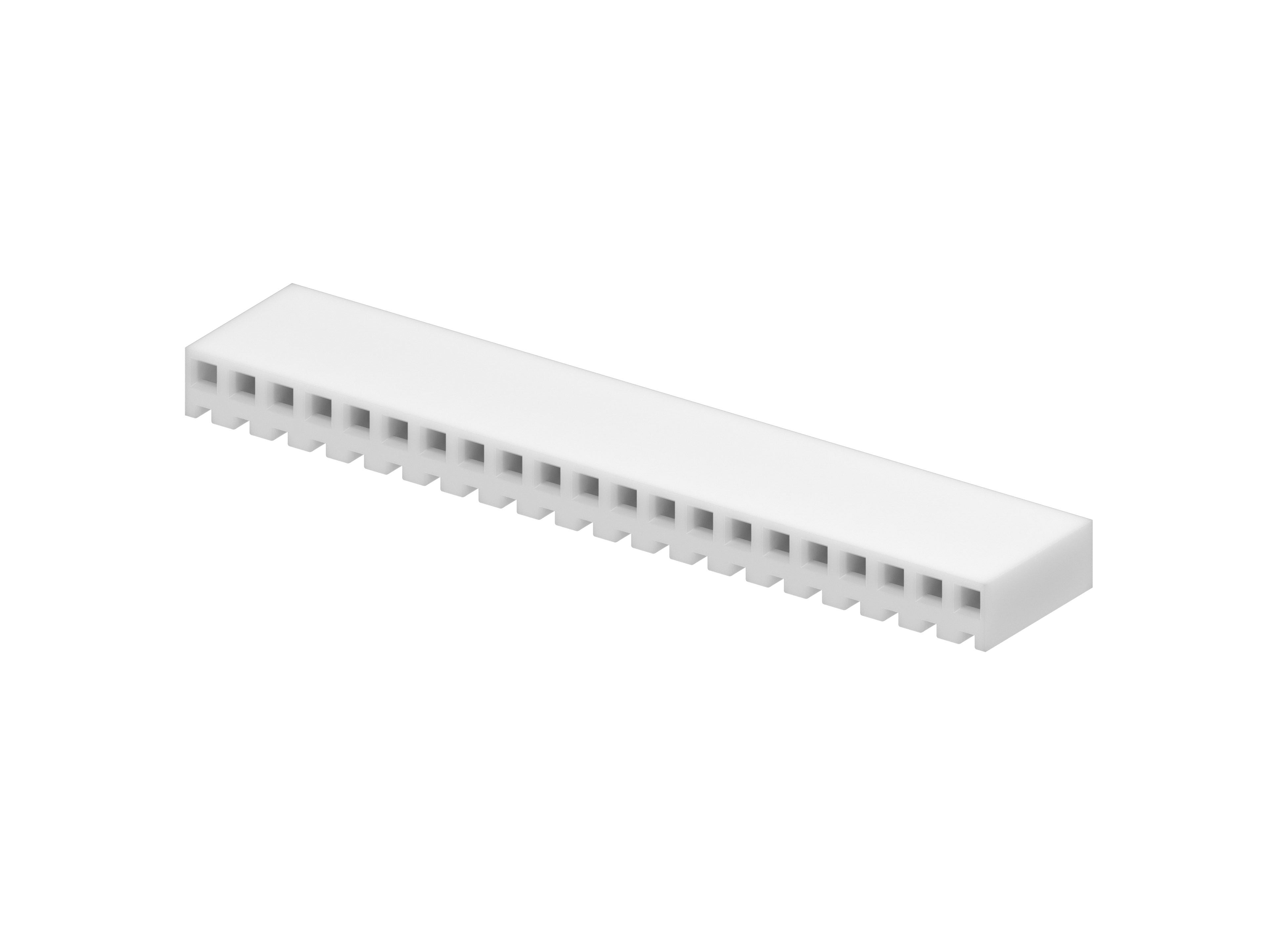

09507211 KK 396 by Molex
KK 3.96mm Crimp Housing, 21 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-7211,
0009507211, 2139-21C |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 21 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Material Resin | Nylon |
| Net Weight | 5.376/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| HEADERS, 156 KK TERM HSG O/ RAMP NYLON 21CKT | RS Americas |
| Headers & Wire Housings 156 KK Term Hsg O/Ramp Nylon 21Ckt | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 09507211?
Additional datasheets, footprints and schematics for 09507211 are listed on our Part Details page. You can also find images and similar parts to 09507211 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 09507211 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 09507211 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 09507211 fall under?
The 09507211 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 09507211 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 09507211 you can contact the distributor directly for product support, shipping queries etc.
Is the 09507211 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 09507211 have stock available?
Authorised distributors including RS Americas and Sager have stock available or on a lead time for 09507211.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 09507211 often in real-time on the comparison pages.
What if I can't find stock of 09507211?
You can fill out our help required form which you can use to request a quote for 09507211 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
