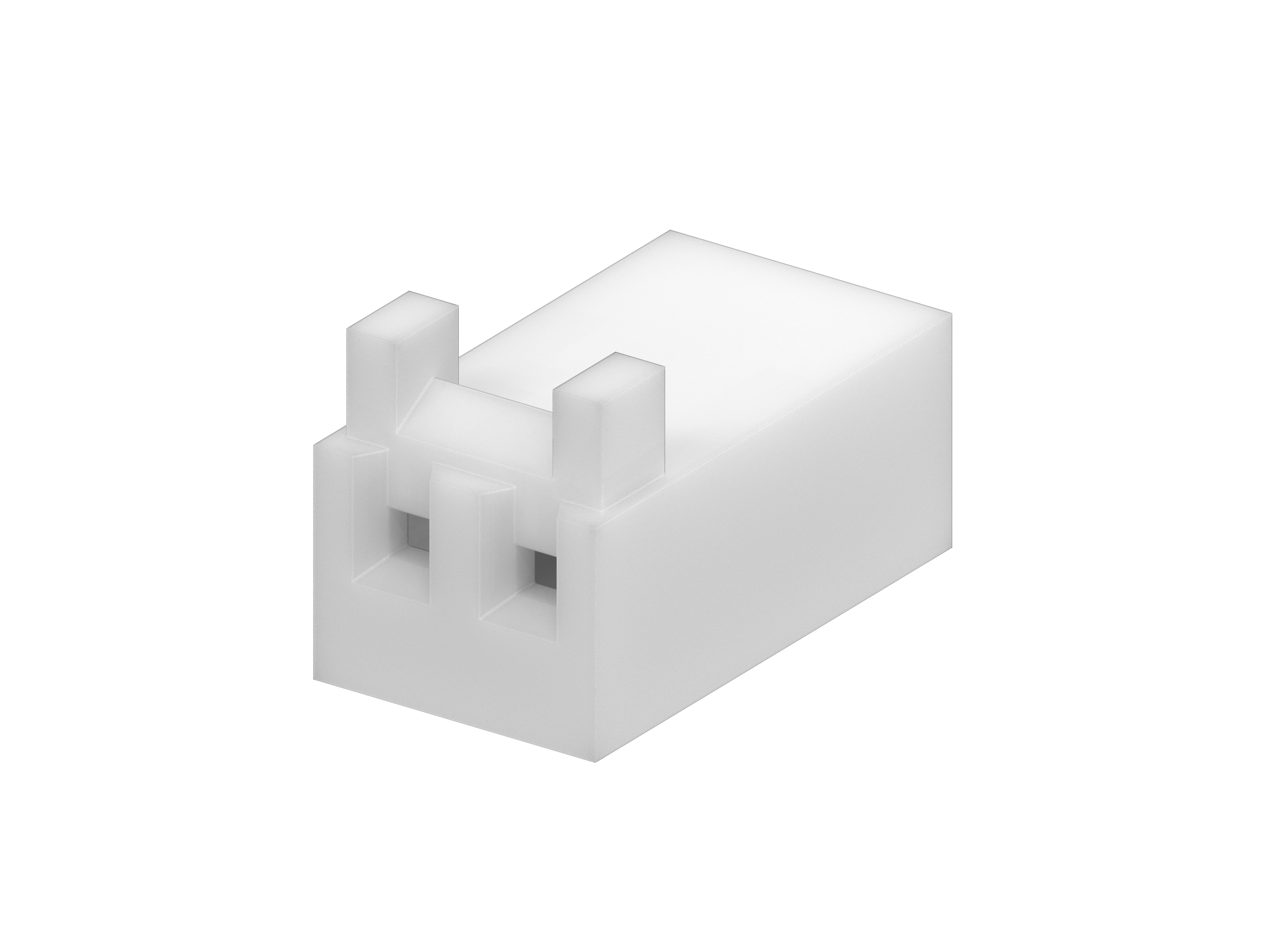

09508023 KK 396 by Molex
KK 3.96mm Crimp Terminal Housing, Friction Ramp, 2 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-8023,
0009508023, 41695-N-D02 |
Where to Buy
Prices starting from US$0.07
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.08
|
34,871
in stock
|
Buy Now |
|
TTI Europe
from US$0.07
|
20,000
in stock
|
Buy Now |
|
element14
from US$0.10
|
4,087
in stock
|
Buy Now |
|
Farnell
from US$0.12
|
4,087
in stock
|
Buy Now |
|
TME
from US$0.10
|
1,700
in stock
|
Buy Now |
|
Newark Electronics
from US$0.11
|
1,505
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.11
|
1,000
in stock
|
Buy Now |
|
RS
from US$0.28
|
694
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,540
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 0.761/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK 156 CRIMP HOUSING POL RAMP 02 CKT | Heilind Americas |
| 3.96 MM KK HOUSING W/RAMP&RIBS | TTI Europe |
| CONNECTOR, RCPT, 2POS, 1ROW, 3.96MM | element14 |
| Connector: wire-board | TME |
| Connector, Rcpt, 2Pos, 1Row, 3.96Mm | Newark Electronics |
| Molex 09-50-8023 Connector Housing | RS |
| KK .156 HSG 02P | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 09508023?
Additional datasheets, footprints and schematics for 09508023 are listed on our Part Details page. You can also find images and similar parts to 09508023 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 09508023 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 09508023 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 09508023 fall under?
The 09508023 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 09508023 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 09508023 you can contact the distributor directly for product support, shipping queries etc.
Is the 09508023 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 09508023 have stock available?
Authorised distributors including Heilind Americas, TTI Europe, element14, Farnell and TME have stock available or on a lead time for 09508023.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 09508023 often in real-time on the comparison pages.
What if I can't find stock of 09508023?
You can fill out our help required form which you can use to request a quote for 09508023 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
