09508073 KK 396 by Molex

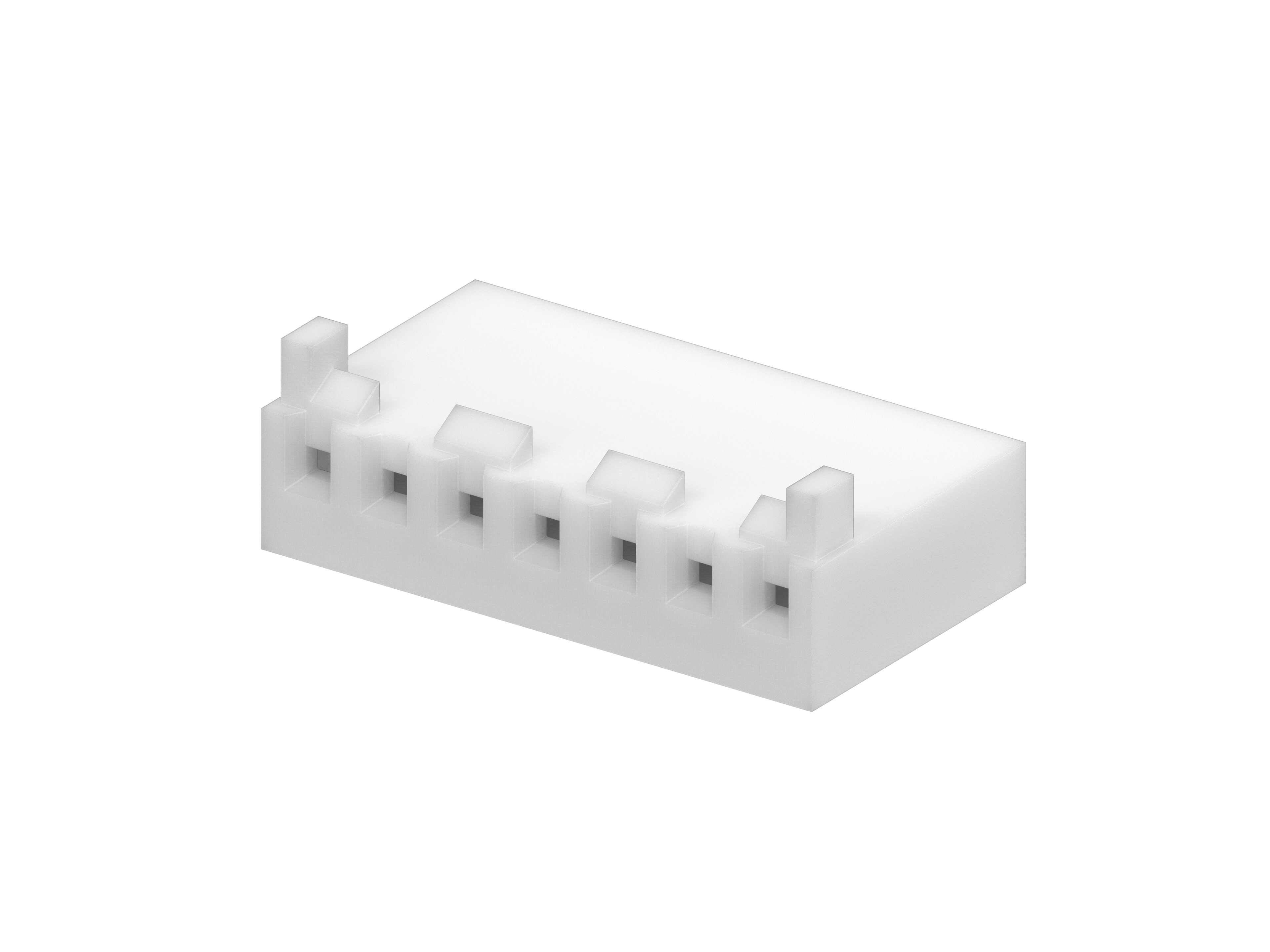

KK 3.96mm Crimp Terminal Housing, Friction Ramp, 7 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-8073,
0009508073, 41695-N-D07 |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$0.21
|
54,980
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.15
|
10,711
in stock
|
Buy Now |
|
RS
from US$0.27
|
5,460
in stock
|
Buy Now |
|
TTI Americas
from US$0.14
|
2,620
in stock
|
Buy Now |
|
element14
from US$0.24
|
675
in stock
|
Buy Now |
|
Farnell
from US$0.24
|
675
in stock
|
Buy Now |
|
TME
from US$0.26
|
274
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
154
in stock
|
Buy Now |
|
|
RS Americas
from US$0.17
|
135
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
410
in stock
|
Buy Now |
|
Conrad
from US$0.29
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.21
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Power, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 7 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 2.385/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK 156 CRIMP HOUSING POL RAMP 07 CKT | Heilind Europe |
| Molex 09-50-8073 Connector Housing | RS |
| KK .156 HSG 07P | TTI Americas |
| CONNECTOR, RCPT, 7POS, 1ROW, 3.96MM | element14 |
| Connector: wire-board | TME |
| Connector, Rcpt, 7Pos, 1Row, 3.96Mm | Newark Electronics |
| KK 396 SERIES 3.96MM PITCH 7 WAY 1 ROW FEMALE STRAIGHT PCB HOUSING 41695 | RS Americas |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 7 Rastermaß: 3.96 mm 09508073 1 St. Bag | Conrad |
| KK 156 CRIMP HOUSING POL, 7CKT | TTI Europe |
| Connector Housing Power Receptacle 7 Position 3.96 mm Straight Cable Mount | Avnet America |
| Receptacle Socket Housing 7P | Carlton-Bates |
