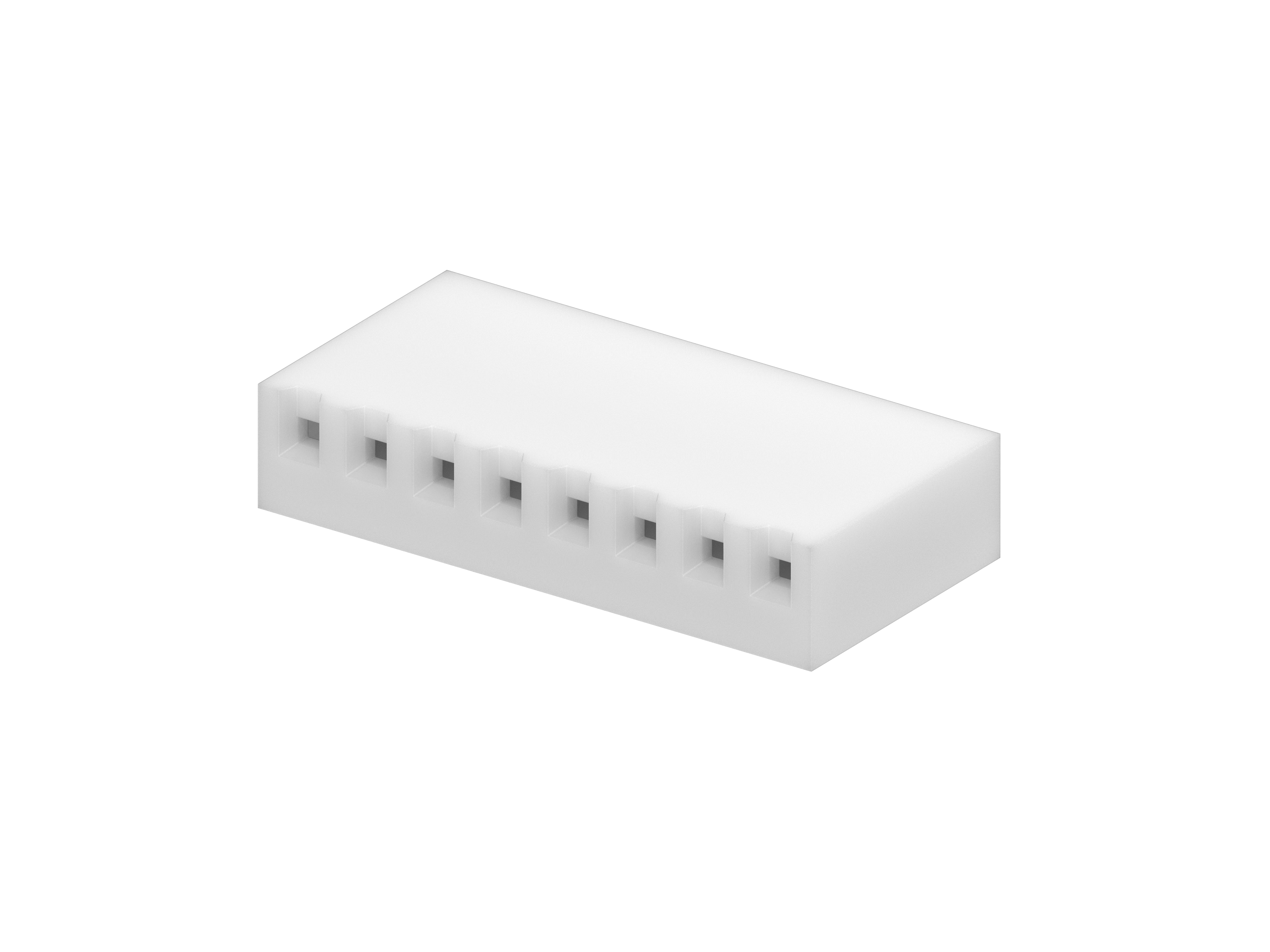

09508080 KK 396 by Molex
KK 3.96mm Crimp Terminal Housing, 8 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-8080,
0009508080, 41695-N-A08 |
Where to Buy
Prices starting from US$0.12
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Resin | Polyester |
| Net Weight | 2.696/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 8Pos, 1Row, 3.96Mm | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 1ROW, 3.96MM | element14 |
| KK 156 CRIMP HOUSING 08 CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 09508080?
Additional datasheets, footprints and schematics for 09508080 are listed on our Part Details page. You can also find images and similar parts to 09508080 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 09508080 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 09508080 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 09508080 fall under?
The 09508080 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 09508080 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 09508080 you can contact the distributor directly for product support, shipping queries etc.
Is the 09508080 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 09508080 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Heilind Americas and Heilind Europe have stock available or on a lead time for 09508080.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 09508080 often in real-time on the comparison pages.
What if I can't find stock of 09508080?
You can fill out our help required form which you can use to request a quote for 09508080 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
