09508091 KK 396 by Molex

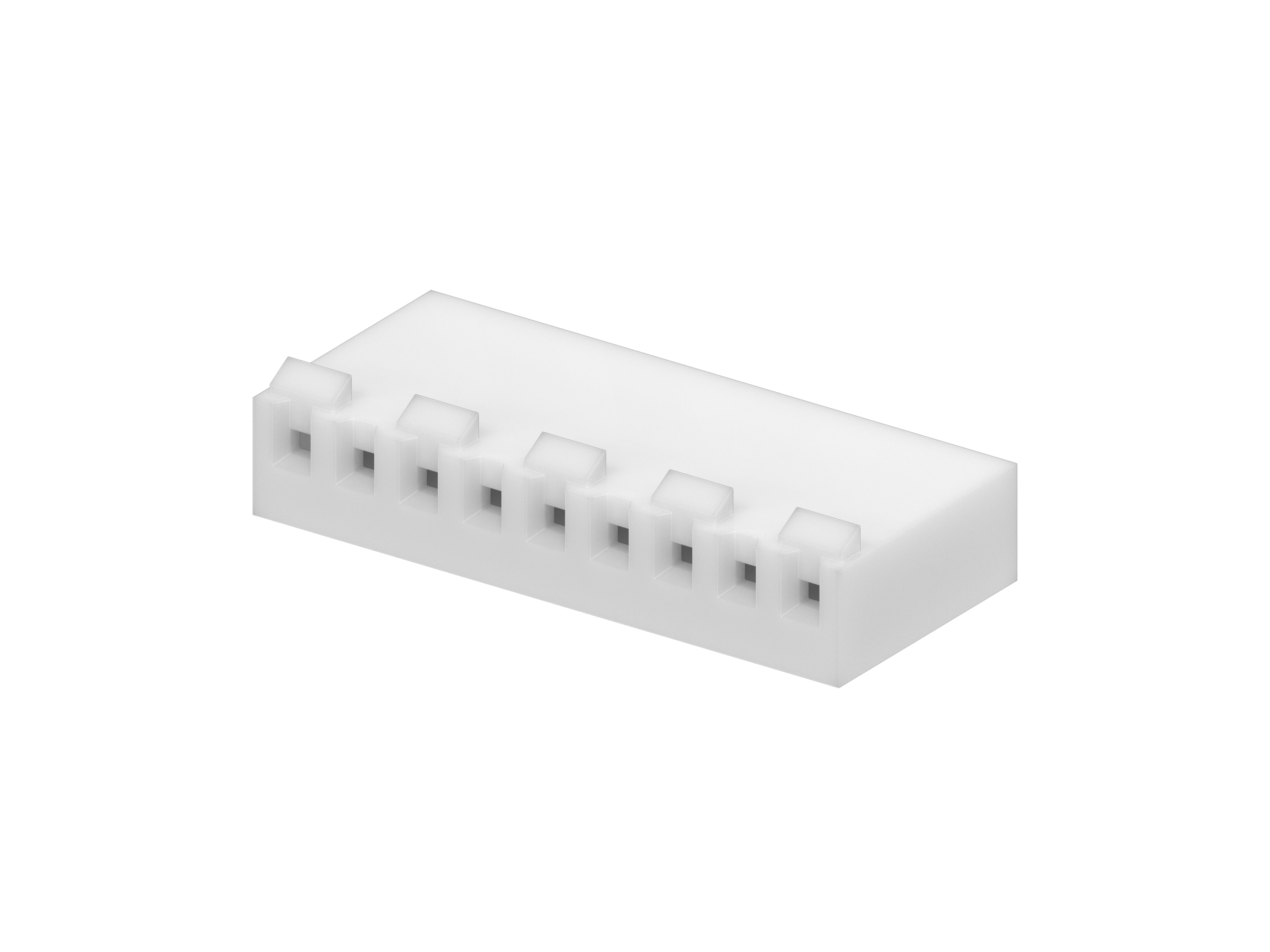

KK 3.96mm Crimp Terminal Housing, Friction Ramp, 9 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-8091,
0009508091, 41695-N-B09 |
Where to Buy
Prices starting from US$0.16
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 3.132/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Wtb Housing, Rcpt, 9Pos, 1Row, 3.96Mm | Newark Electronics |
| KK 156 CRIMP HOUSING RAMP 09 KT | Heilind Americas |
| WTB HOUSING, RCPT, 9POS, 1ROW, 3.96MM | element14 |
