09508093 KK 396 by Molex

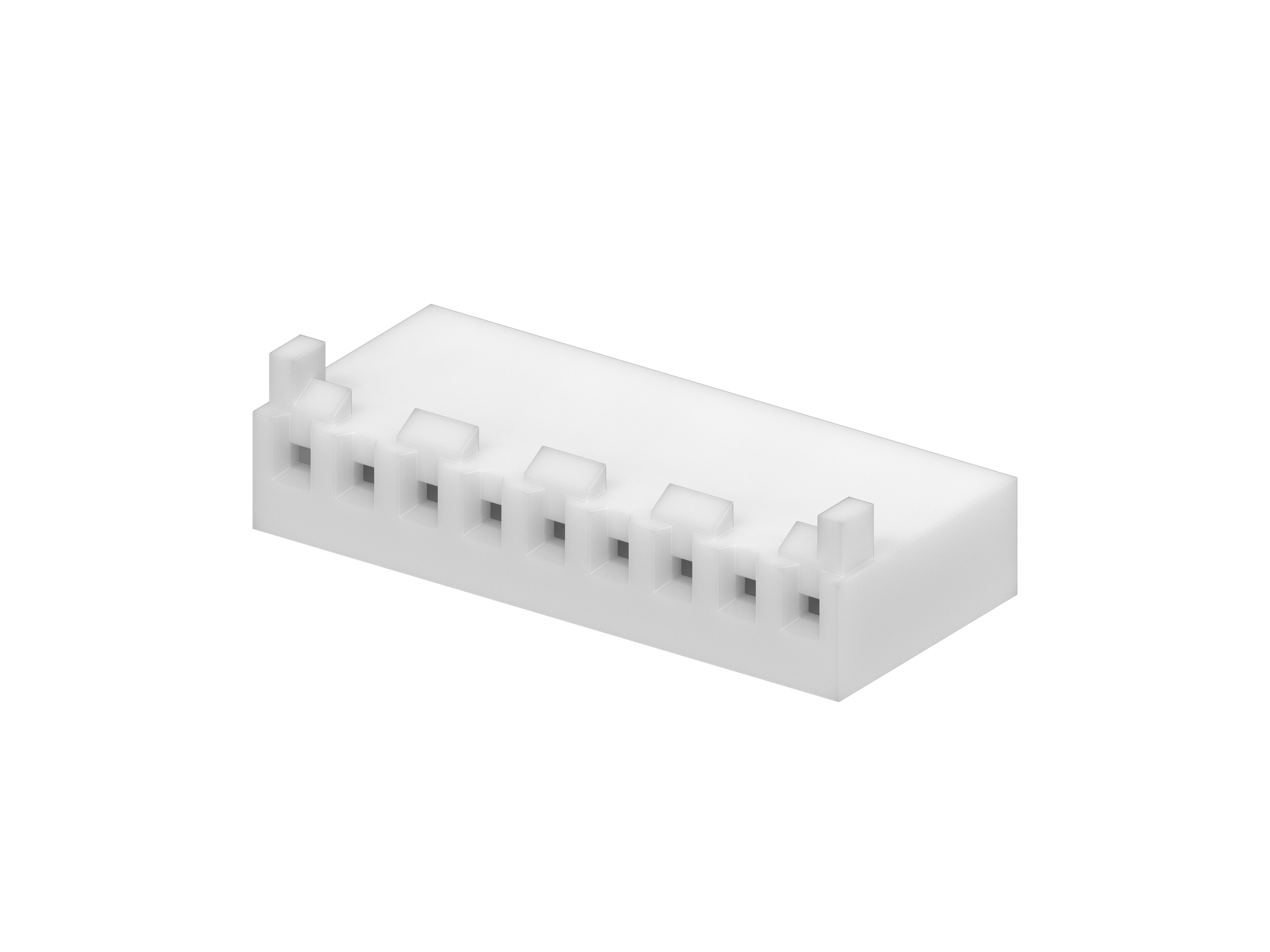

KK 3.96mm Crimp Terminal Housing, Friction Ramp, 9 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-50-8093,
0009508093, 41695-N-D9 |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.26
|
6,388
in stock
|
Buy Now |
|
Farnell
from US$0.23
|
6,388
in stock
|
Buy Now |
|
TTI Americas
from US$0.20
|
5,470
in stock
|
Buy Now |
|
Heilind Americas
from US$0.16
|
3,150
in stock
|
Buy Now |
|
Newark Electronics
from US$0.26
|
244
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,860
in stock
|
Buy Now |
|
RS Americas
from US$0.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
EME
from US$0.24
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Power, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 3.174/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.96mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | See Product Specification |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, RCPT, 9POS, 1ROW, 3.96MM | element14 |
| KK .156 HSG 09P | TTI Americas |
| KK 156 CRIMP HOUSING POL RAMP 09 CKT | Heilind Americas |
| Connector, Rcpt, 9Pos, 1Row, 3.96Mm | Newark Electronics |
| KK 396 SERIES 3.96MM PITCH 9 WAY 1 ROW FEMALE STRAIGHT PCB HOUSING 41695 | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 09508093?
Additional datasheets, footprints and schematics for 09508093 are listed on our Part Details page. You can also find images and similar parts to 09508093 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 09508093 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 09508093 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 09508093 fall under?
The 09508093 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 09508093 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 09508093 you can contact the distributor directly for product support, shipping queries etc.
Is the 09508093 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 09508093 have stock available?
Authorised distributors including element14, Farnell, TTI Americas, Heilind Americas and Newark Electronics have stock available or on a lead time for 09508093.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 09508093 often in real-time on the comparison pages.
What if I can't find stock of 09508093?
You can fill out our help required form which you can use to request a quote for 09508093 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
