09652038 KK 396,SPOX by Molex

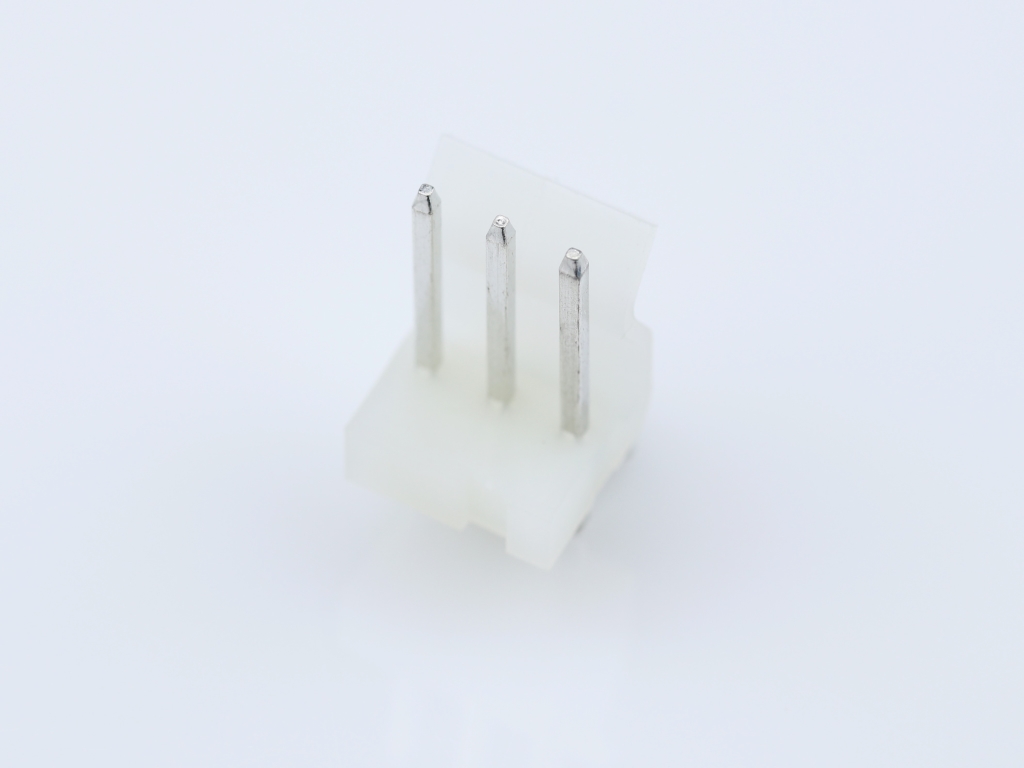

SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 3 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-65-2038,
0009652038, 5273-03A |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.19
|
25,402
in stock
|
Buy Now |
|
TTI Americas
from US$0.12
|
23,187
in stock
|
Buy Now |
|
Heilind Americas
from US$0.11
|
12,666
in stock
|
Buy Now |
|
Conrad
from US$0.30
|
6,516
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
6,257
in stock
|
Buy Now |
|
Avnet America
from US$0.09
|
6,257
in stock
|
Buy Now |
|
TME
from US$0.13
|
657
in stock
|
Buy Now |
|
RS
from US$0.28
|
560
in stock
|
Buy Now |
|
EME
from US$0.14
|
350
in stock
|
Buy Now |
|
Avnet Abacus
-
|
23,000
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
1,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
735
in stock
|
Buy Now |
|
|
RS Americas
from US$0.27
|
0
in stock
|
Buy Now |
|
Compona
from US$0.12
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.11
|
0
in stock
|
Buy Now |
|
Sager
from US$0.10
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.10
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.25
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396,SPOX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.012/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, HEADER, 3POS, 1ROW, 3.96MM | Farnell |
| SPOX .156 HDR 03P VT | TTI Americas |
| 3CKT 3.96MM WFAS W/LOCK 527303A | Heilind Americas |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 3 Rastermaß: 3.96 mm 09652038 1 St. Bag | Conrad |
| 3Ckt 3.96Mm Wfas W/Lock 527303A Rohs Compliant: Yes |Molex 09-65-2038 | Newark Electronics |
| Pin Header, Wire-to-Board, 3.96 mm, 1 Rows, 3 Contacts, Through Hole Straight, KK 396 5273 Series | Avnet America |
| Connector: wire-board | TME |
| Molex 09-65-2038 Pin Header | RS |
| HEADER 3.96MM KK WTB, VERT, F/LOCK, 3W | RS Americas |
| MOLEX 09-65-2038 SPOX and KK 396 W-t-B Header 180° 3p with Friction Lock | Compona |
| 3.96 MM SPOX HEADER | TTI Europe |
| Headers & Wire Housings 3CKT 396MM WFAS WLOCK 527303A | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 09652038?
Additional datasheets, footprints and schematics for 09652038 are listed on our Part Details page. You can also find images and similar parts to 09652038 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 09652038 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 09652038 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 09652038 fall under?
The 09652038 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 09652038 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 09652038 you can contact the distributor directly for product support, shipping queries etc.
Is the 09652038 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 09652038 have stock available?
Authorised distributors including Farnell, TTI Americas, Heilind Americas, Conrad and Newark Electronics have stock available or on a lead time for 09652038.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 09652038 often in real-time on the comparison pages.
What if I can't find stock of 09652038?
You can fill out our help required form which you can use to request a quote for 09652038 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
