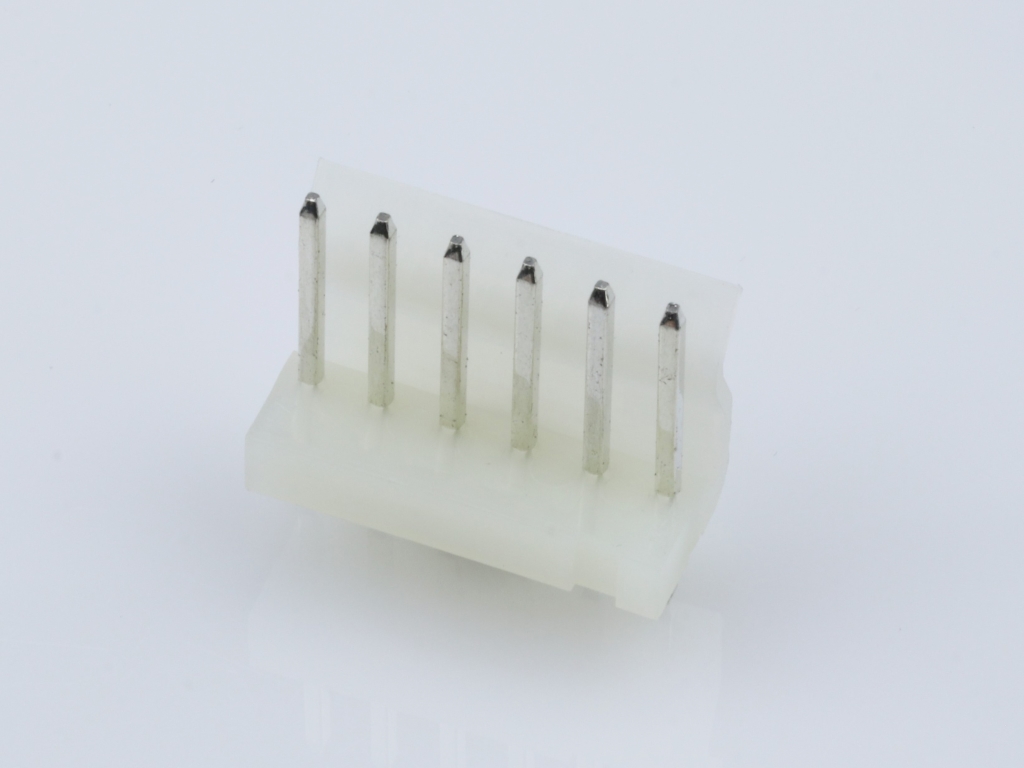

09652068 KK 396,SPOX by Molex
SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
09-65-2068,
0009652068, 5273-06A |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.71
|
20,167
in stock
|
Buy Now |
|
TTI Europe
from US$0.47
|
7,600
in stock
|
Buy Now |
|
TME
from US$0.26
|
6,200
in stock
|
Buy Now |
|
Conrad
from US$1.01
|
6,200
in stock
|
Buy Now |
|
Farnell
from US$0.79
|
5,580
in stock
|
Buy Now |
|
Heilind Americas
from US$0.37
|
5,558
in stock
|
Buy Now |
|
RS
from US$0.71
|
5,340
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.37
|
4,000
in stock
|
Buy Now |
|
EME
from US$0.25
|
1,209
in stock
|
Buy Now |
|
element14
from US$0.62
|
1,015
in stock
|
Buy Now |
|
Rutronik
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.20
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396,SPOX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 2057.300/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 3.96mm |
| Pitch Termination Interface | 3.96mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 6Ckt 3.96Mm Wafer W/Lock 527306A Rohs Compliant: Yes |Molex 09-65-2068 | Newark Electronics |
| 3.96 MM SPOX HEADER | TTI Europe |
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 3.96 mm 09652068 1 St. Bag | Conrad |
| PIN HEADERS | Farnell |
| 6CKT 3.96MM WAFER W/LOCK 527306A | Heilind Americas |
| Molex 09-65-2068 Pin Header | RS |
| SPOX .156 HDR 06P VT | TTI Asia |
| CONNECTOR, HEADER, 6POS, 1ROW, 3.96MM | element14 |
| 06P SPOX HEADER 180° FRIC LOCK | Rutronik |
