1000570025 Temp-Flex by Molex

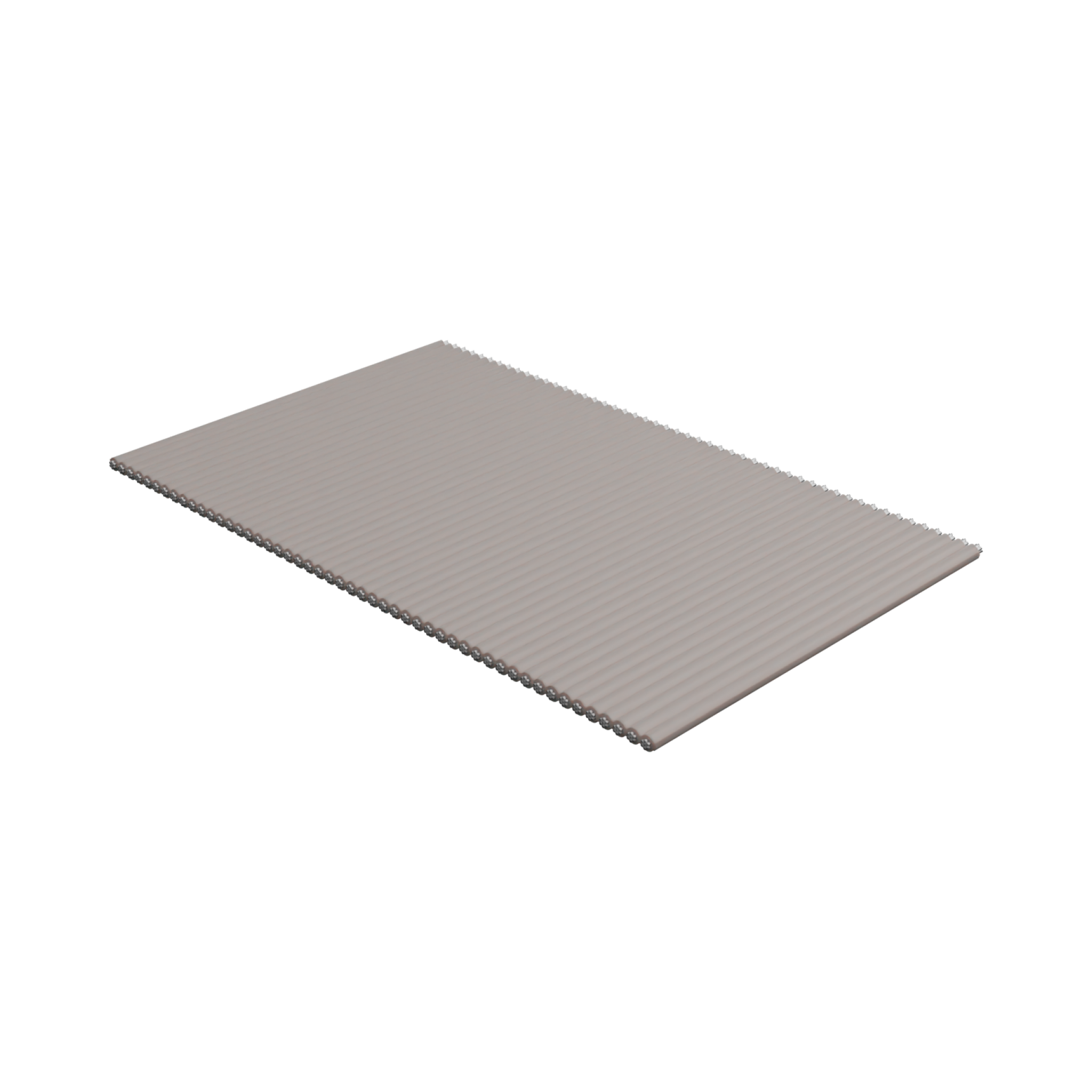

Temp-Flex High-Performance Flat-Ribbon Cable, 50 Circuits, 0.64mm Pitch, 30 AWG, Silver Plated Copper, UL 20726, 7/38 Stranded Extruded FEP, Natural with Blue Polarity Stripe
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0025,
F3007S-50-025-85 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 150V AC |
Physical |
|
|---|---|
| Cable Length | 100 ft/spool, 10 ft min length |
| Circuits Loaded | 50 |
| Color Cable Jacket | Natural w/Blue Polarity Stripe |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Pitch Mating Interface | 0.64mm |
| Temperature Range Operating | -55° to +150°C |
| Wire Cable Type | 7/38 Stranded, High-Performance Flat-Ribbon, UL 20726 |
| Wire Size Awg | 30 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 30 Awg Spc 50 Cond 025 Pitch Nat/Blu Str Rohs Compliant: Yes |Molex 100057-0025 | Newark Electronics |
| Flat Cables TEMP FLEX | Sager |
| RIBBON CABLE, 30AWG, FEP, 30.5M | Farnell |
