1000570026 Temp-Flex by Molex

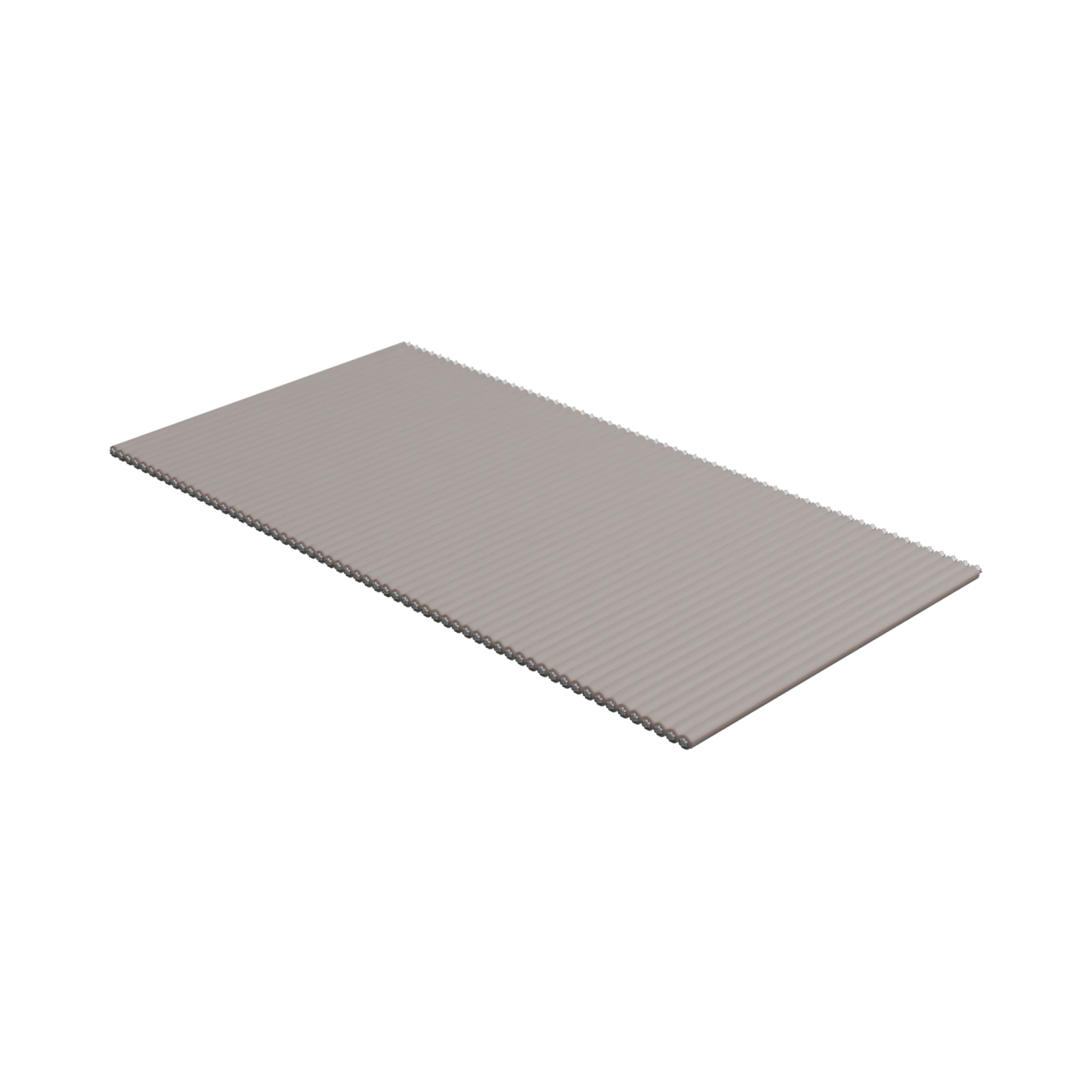

Temp-Flex High-Performance Flat-Ribbon Cable, 60 Circuits, 0.64mm Pitch, 30 AWG, Silver Plated Copper, UL 20726, 7/38 Stranded Extruded FEP, Natural with Blue Polarity Stripe
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0026,
F3007S-60-025-85 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 150V AC |
Physical |
|
|---|---|
| Cable Length | 100 ft/spool, 10 ft min length |
| Circuits Loaded | 60 |
| Color Cable Jacket | Natural w/Blue Polarity Stripe |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Pitch Mating Interface | 0.64mm |
| Temperature Range Operating | -55° to +150°C |
| Wire Cable Type | 7/38 Stranded, High-Performance Flat-Ribbon, UL 20726 |
| Wire Size Awg | 30 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 30 Awg Spc 60 Cond 025 Pitch Nat/Blu Str Rohs Compliant: Yes |Molex 100057-0026 | Newark Electronics |
| Flat Cables 30 AWG SPC 60 COND 025 PITCH NAT/BLU STR | Sager |
| 30 AWG SPC 60 COND 025 PITCH NAT/BLU STR | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1000570026?
Additional datasheets, footprints and schematics for 1000570026 are listed on our Part Details page. You can also find images and similar parts to 1000570026 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1000570026 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1000570026 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1000570026 fall under?
The 1000570026 is listed under Specialty Wire and Cable.
Can I view similar or alternative parts?
You can view similar parts to 1000570026 when available in the Specialty Wire and Cable range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1000570026 you can contact the distributor directly for product support, shipping queries etc.
Is the 1000570026 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1000570026 have stock available?
Authorised distributors including Newark Electronics, Sager and Farnell have stock available or on a lead time for 1000570026.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1000570026 often in real-time on the comparison pages.
What if I can't find stock of 1000570026?
You can fill out our help required form which you can use to request a quote for 1000570026 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
