1000570095 Temp-Flex by Molex

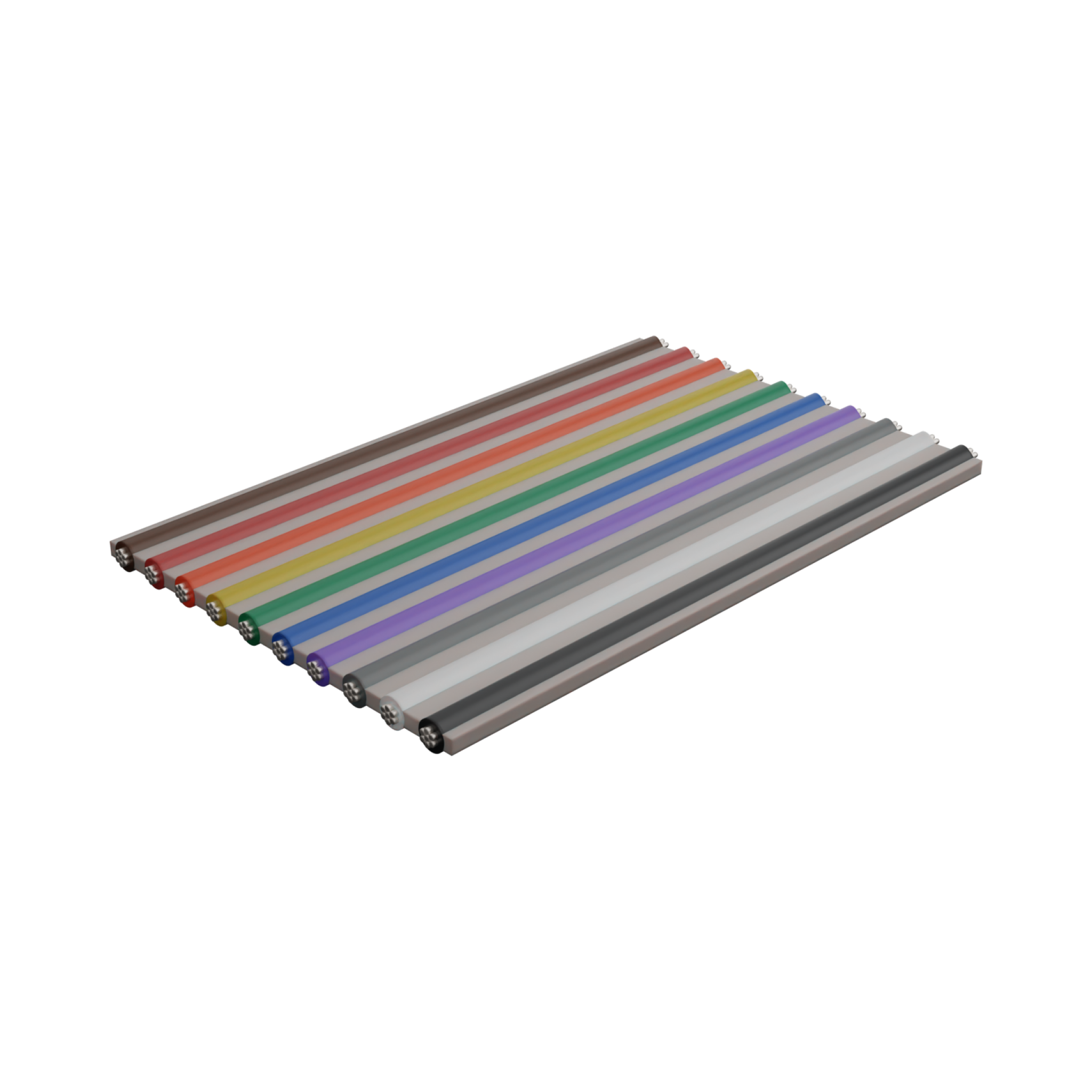

Temp-Flex High-Performance Flat-Ribbon Cable, 10 Circuits, 1.27mm Pitch, 26 AWG, Silver Plated Copper, UL 20424, 7/34 Stranded Extruded FEP, Rainbow
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0095,
F2607S-10-050-R |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.8A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 100 ft/spool, 10 ft min length, 2 lengths/spool max |
| Circuits Loaded | 10 |
| Color Cable Jacket | Rainbow |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Net Weight | 18.118/g |
| Pitch Mating Interface | 1.27mm |
| Temperature Range Operating | -55° to +200°C |
| Wire Cable Type | 7/34 Stranded, High-Performance Flat-Ribbon, UL 20424 |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Flat Cables 26 AWG SPC 10 COND 050 PITCH RAINBOW | Sager |
| 26 AWG SPC 10 COND 050 PITCH R | Heilind Americas |
| 26 AWG SPC 10 COND 050 PITCH R 26 AWG SPC 10 COND 050 PITCH R | Heilind Europe |
