1000570133 Temp-Flex by Molex

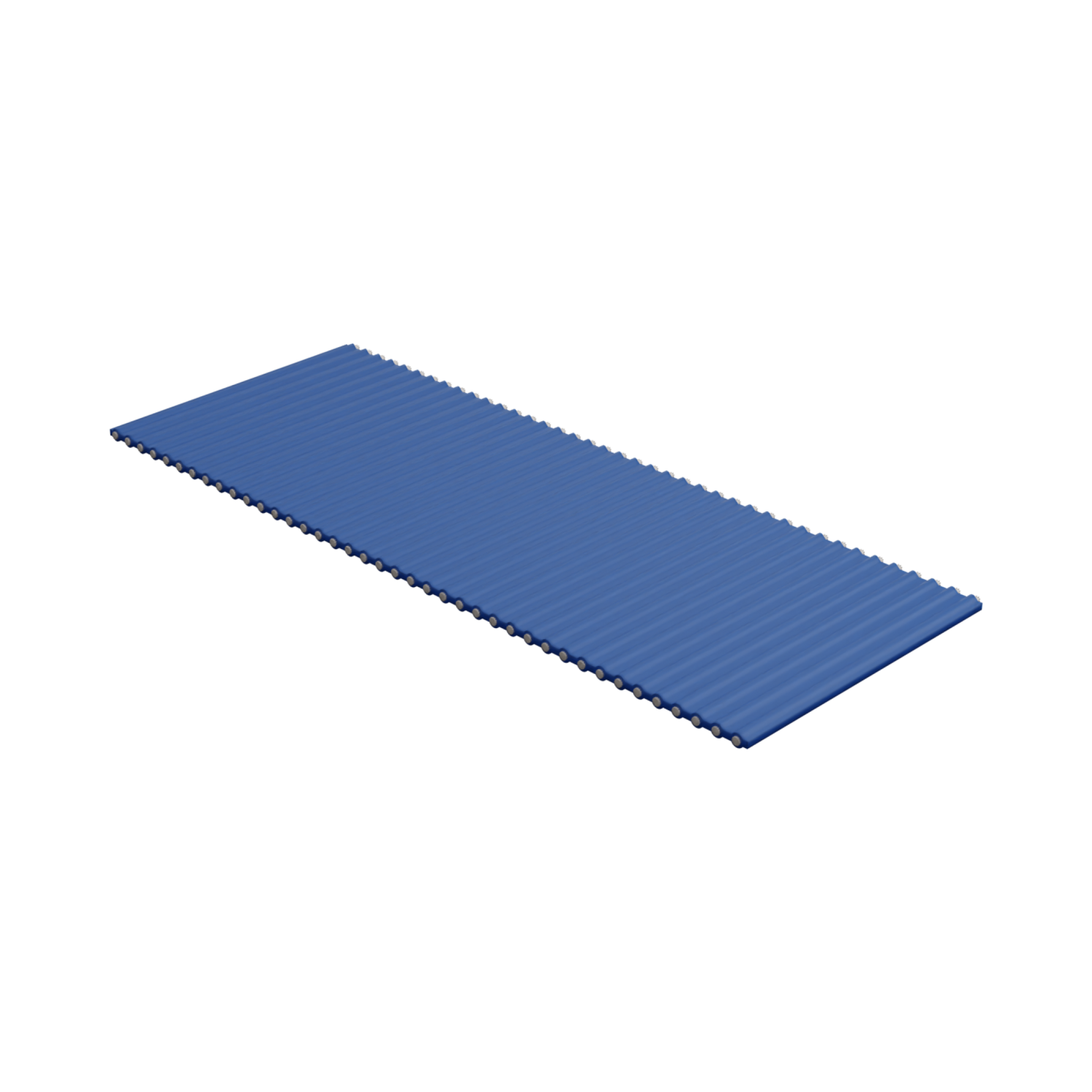

Temp-Flex High-Performance Flat-Ribbon Cable, 40 Circuits, 1.27mm Pitch, 26 AWG, Silver Plated Copper Alloy, UL 20424, 19/34 Stranded Extruded FEP, Blue
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0133,
F26H19S-40-050-5 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.8A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 150 ft/spool, 20 ft min length, 3 lengths/spool max |
| Circuits Loaded | 40 |
| Color Cable Jacket | Blue |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Net Weight | 40.115/g |
| Pitch Mating Interface | 1.27mm |
| Temperature Range Operating | -55° to +200°C |
| Wire Cable Type | 19/34 Stranded, High-Performance Flat-Ribbon, UL 20424 |
| Wire Size Awg | 26 |
