1000570202 Temp-Flex by Molex

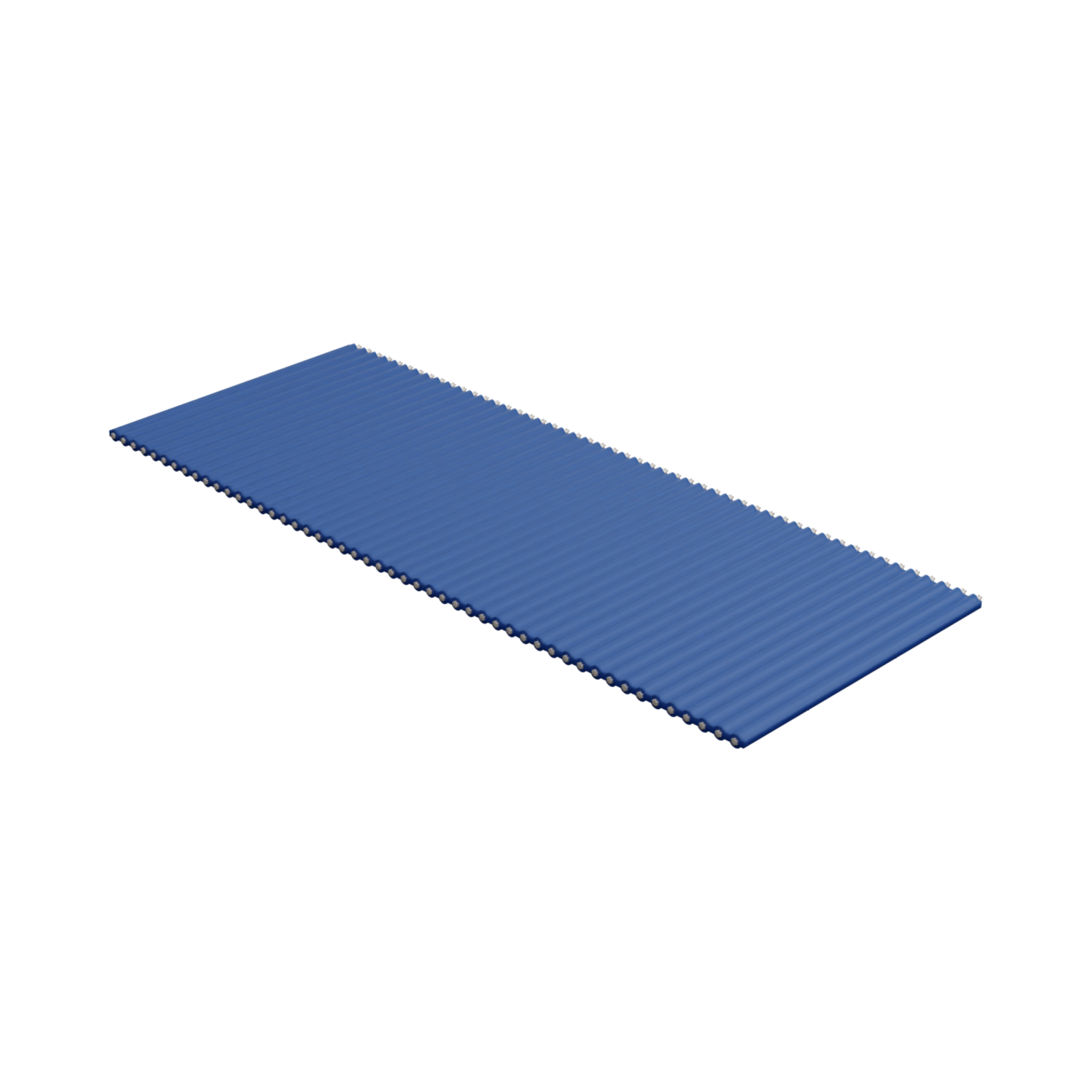

Temp-Flex High-Performance Flat-Ribbon Cable, 50 Circuits, 1.00mm Pitch, 28 AWG, Silver Plated Copper, UL 20424, 7/36 Stranded Extruded FEP, Blue
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0202,
F2807S-50-0394-5 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 100 ft/spool, 10 ft min length, 2 lengths/spool max |
| Circuits Loaded | 50 |
| Color Cable Jacket | Blue |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Net Weight | 35.040/g |
| Pitch Mating Interface | 1.00mm |
| Temperature Range Operating | -55° to +200°C |
| Wire Cable Type | 7/36 Stranded, High-Performance Flat-Ribbon, UL 20424 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 28 Awg Spc 50 Cond 1Mm Pitch Blue |Molex 100057-0202 | Newark Electronics |
| Flat Cables 28 AWG SPC 50 COND 1MM PITCH BLUE | Sager |
