1000570264 Temp-Flex by Molex

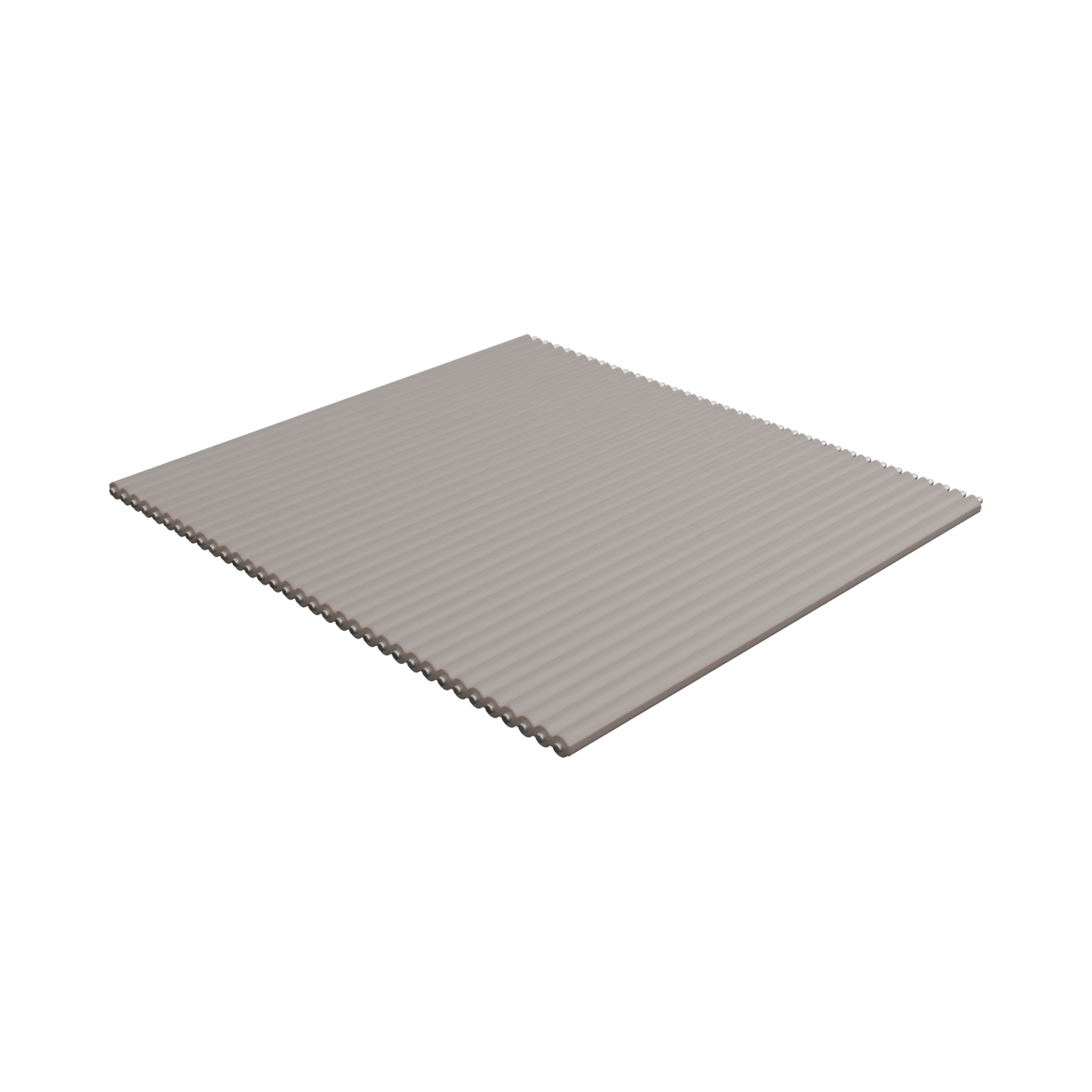

Temp-Flex High-Performance Flat-Ribbon Cable, 34 Circuits, 0.64mm Pitch, 30 AWG, Silver Plated Copper, UL 20726 Solid Extruded FEP, Natural with Blue Polarity Stripe
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0264,
F3001S-34-025-85 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 150V AC |
Physical |
|
|---|---|
| Cable Length | 100 ft/spool, 10 ft min length |
| Circuits Loaded | 34 |
| Color Cable Jacket | Natural w/Blue Polarity Stripe |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Net Weight | 16.451/g |
| Pitch Mating Interface | 0.64mm |
| Temperature Range Operating | -55° to +150°C |
| Wire Cable Type | High-Performance Flat-Ribbon, Solid Extruded FEP, UL 20726 |
| Wire Size Awg | 30 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Flat Cables 30 AWG SPC 34 COND 025 PITCH BL STRIPE | Sager |
