1000570375 Temp-Flex by Molex

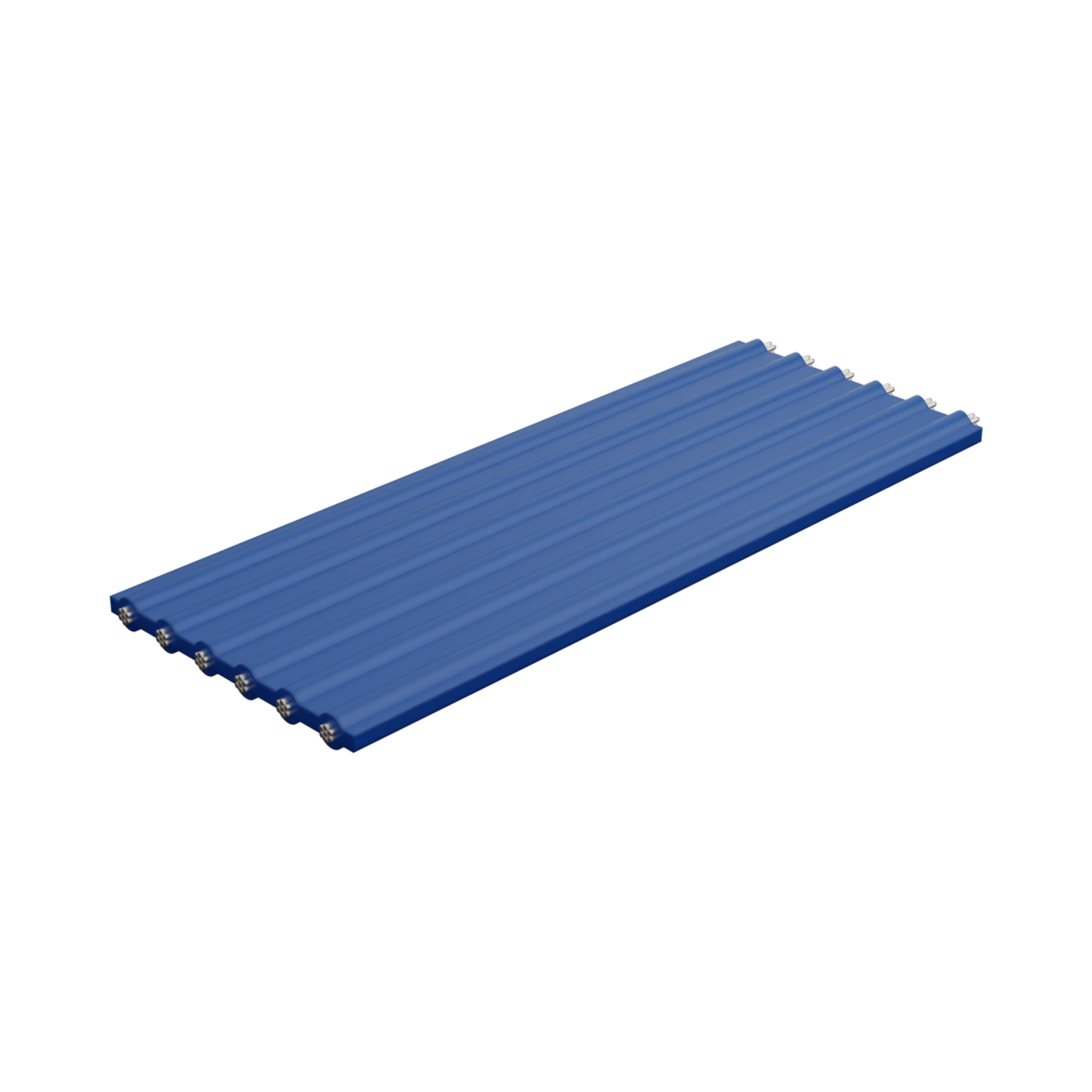

Temp-Flex High-Performance Flat-Ribbon Cable, 6 Circuits, 1.27mm Pitch, 28 AWG, Silver Plated Copper, UL 20424, 7/36 Stranded Extruded FEP, Blue
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
100057-0375,
F2807S-6-050-5 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 300V AC |
Physical |
|
|---|---|
| Cable Length | 400 ft/spool, 10 ft min length, Any lengths/spool max |
| Circuits Loaded | 6 |
| Color Cable Jacket | Blue |
| Insulation | FEP |
| Material Outer Jacket | FEP |
| Material Plating Mating | Silver |
| Net Weight | 3.697/g |
| Pitch Mating Interface | 1.27mm |
| Temperature Range Operating | -65° to +200°C |
| Wire Cable Type | 7/36 Stranded, High-Performance Flat-Ribbon, UL 20424 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Flat Cables FEP 28 AWG 6 COND 050 PITCH BLUE | Sager |
