1000671047 Temp-Flex by Molex

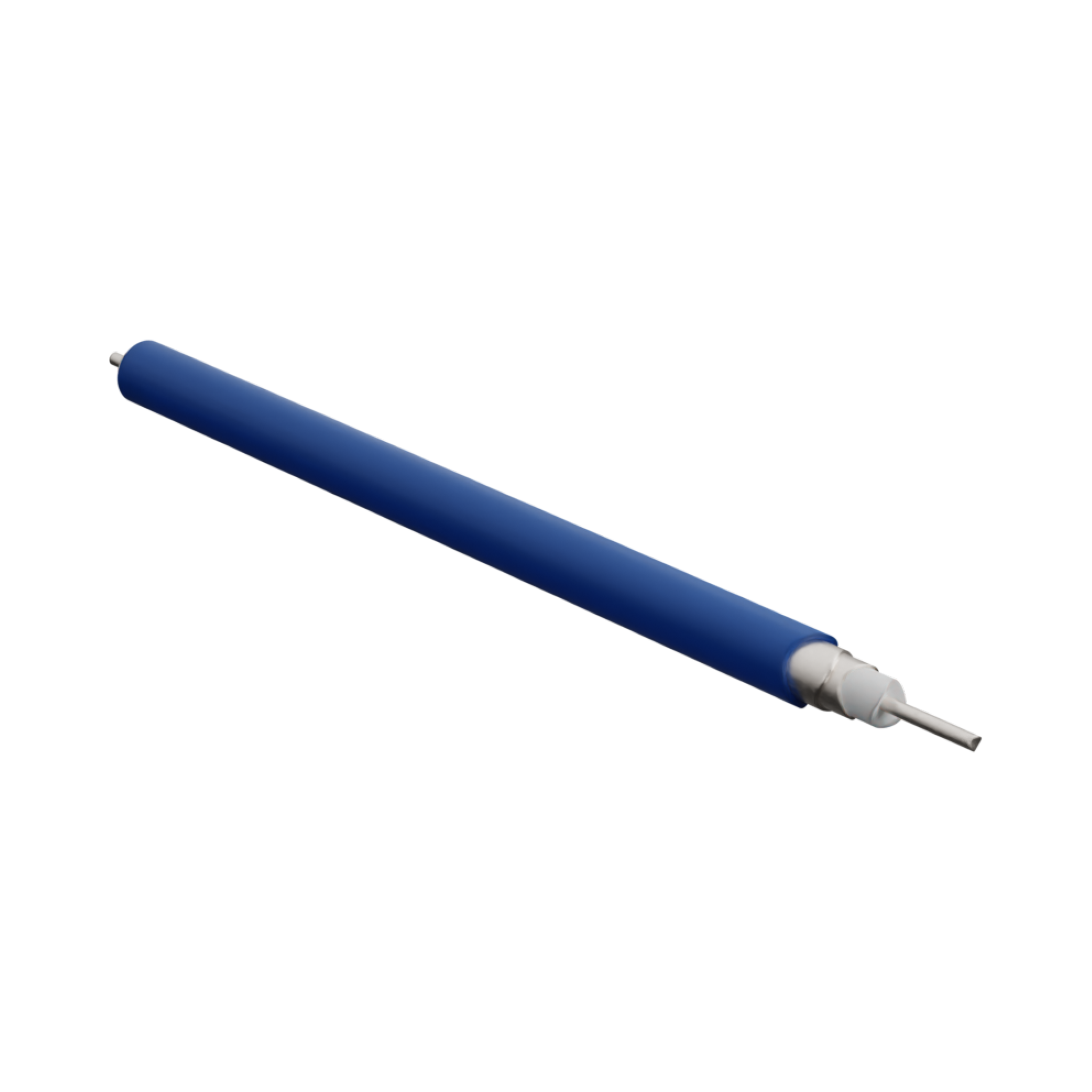

Temp-Flex Solid-Core Flexible Microwave Cable, FEP Jacket, 1.42mm Outer Jacket Diameter, 29 AWG, 047 Style
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 100067-1047 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | Contact Molex |
| Voltage Maximum | CONTACT MOLEX |
Physical |
|
|---|---|
| Bending Radius Minimum | 5.00mm |
| Cable Length | 30.48m min - 454.32m max |
| Circuits Loaded | 1 |
| Color Cable Jacket | Blue |
| Insulation | PFA Fluoropolymer |
| Material Outer Jacket | FEP |
| Outer Jacket Diameter | 1.42mm |
| Temperature Range Operating | -65° to +165°C |
| Wire Cable Type | Solid-Core Microwave Coaxial |
| Wire Size Awg | 29 |
| Wire Size Mm | 0.06 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 29 Awg Low Loss Microwave Coax |Molex 100067-1047 | Newark Electronics |
| Coaxial Cables 29 AWG MICROWAVE COAX | Sager |
| 29 AWG MICROWAVE COAX | Heilind Americas |
