1000671141 Temp-Flex by Molex

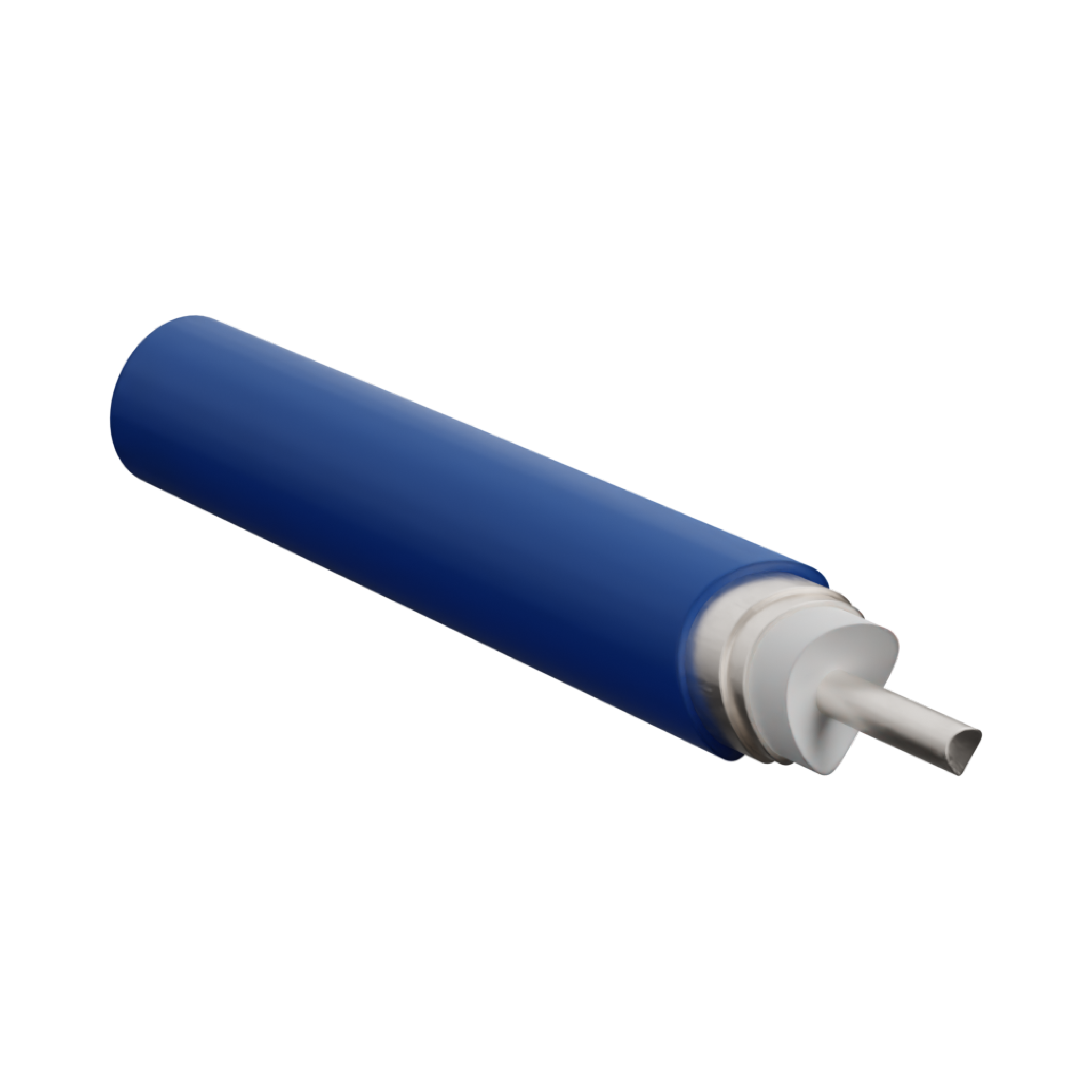

Temp-Flex Solid-Core Flexible Microwave Cable, FEP Jacket, 4.01mm Outer Jacket Diameter, 19 AWG, 141 Style
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 100067-1141 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | Contact Molex |
| Voltage Maximum | CONTACT MOLEX |
Physical |
|
|---|---|
| Bending Radius Minimum | 12.70mm |
| Cable Length | 30.48m min - 304.88m max |
| Circuits Loaded | 1 |
| Color Cable Jacket | Blue |
| Insulation | PFA Fluoropolymer |
| Material Outer Jacket | FEP |
| Net Weight | 13.077/g |
| Outer Jacket Diameter | 4.01mm |
| Temperature Range Operating | -65° to +165°C |
| Wire Cable Type | Solid-Core Microwave Coaxial |
| Wire Size Awg | 19 |
| Wire Size Mm | 0.65 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Low Loss Microwave Coax 19 Awg Pfa Rohs Compliant: Yes |Molex 100067-1141 | Newark Electronics |
| Coaxial Cables Low Loss Microwave Coax 19 AWG PFA | Sager |
| LOW LOSS MICROWAVE COAX 19 A G PFA | Heilind Americas |
| LOW LOSS MICROWAVE COAX 19 AWG PFA | Farnell |
