1000680115 TwinMax by Molex

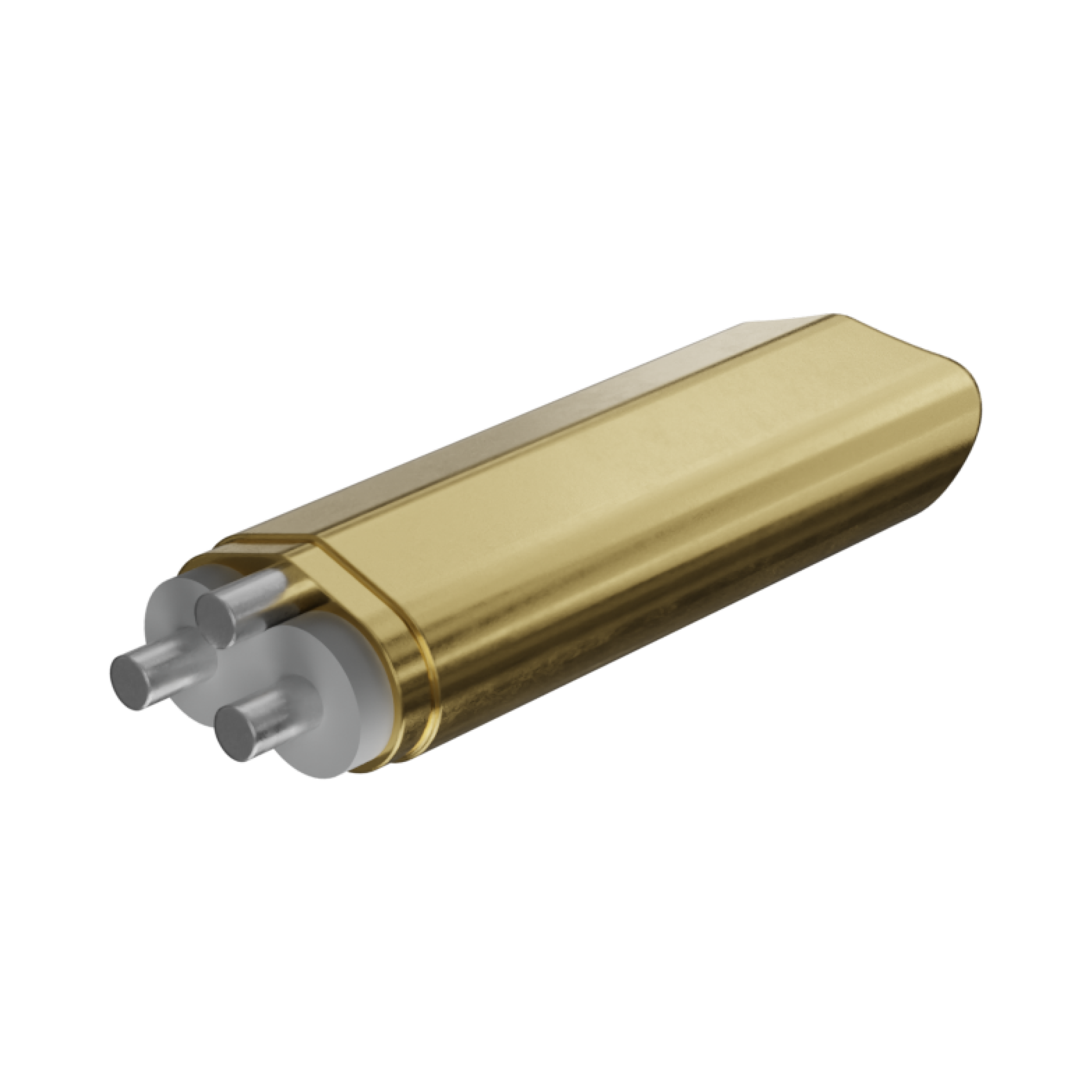

Temp-Flex TwinMax High-Temperature, Low-Loss Twinax Cable, FEP Insulation, 90 Ohms, 30 AWG
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 100068-0115 |
Specifications
| Product Name | TwinMax |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | Contact Molex |
| Voltage Maximum | 30V AC |
Physical |
|
|---|---|
| Bending Radius Minimum | 5xOD - Minor Axis |
| Cable Length | 200 ft. Min. Length |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Insulation | Fluoropolymer |
| Material Outer Jacket | Polyester |
| Net Weight | 0.795/g |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | Twinax |
| Wire Size Awg | 30 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 30 Awg 90 Ohm Shielded Pair |Molex 100068-0115 | Newark Electronics |
| Coaxial Cables 30 AWG 90 OHM SHIELDED PAIR | Sager |
| 30 AWG 90 OHM SHIELDED PAIR | Heilind Americas |
