1001935130 Temp-Flex by Molex

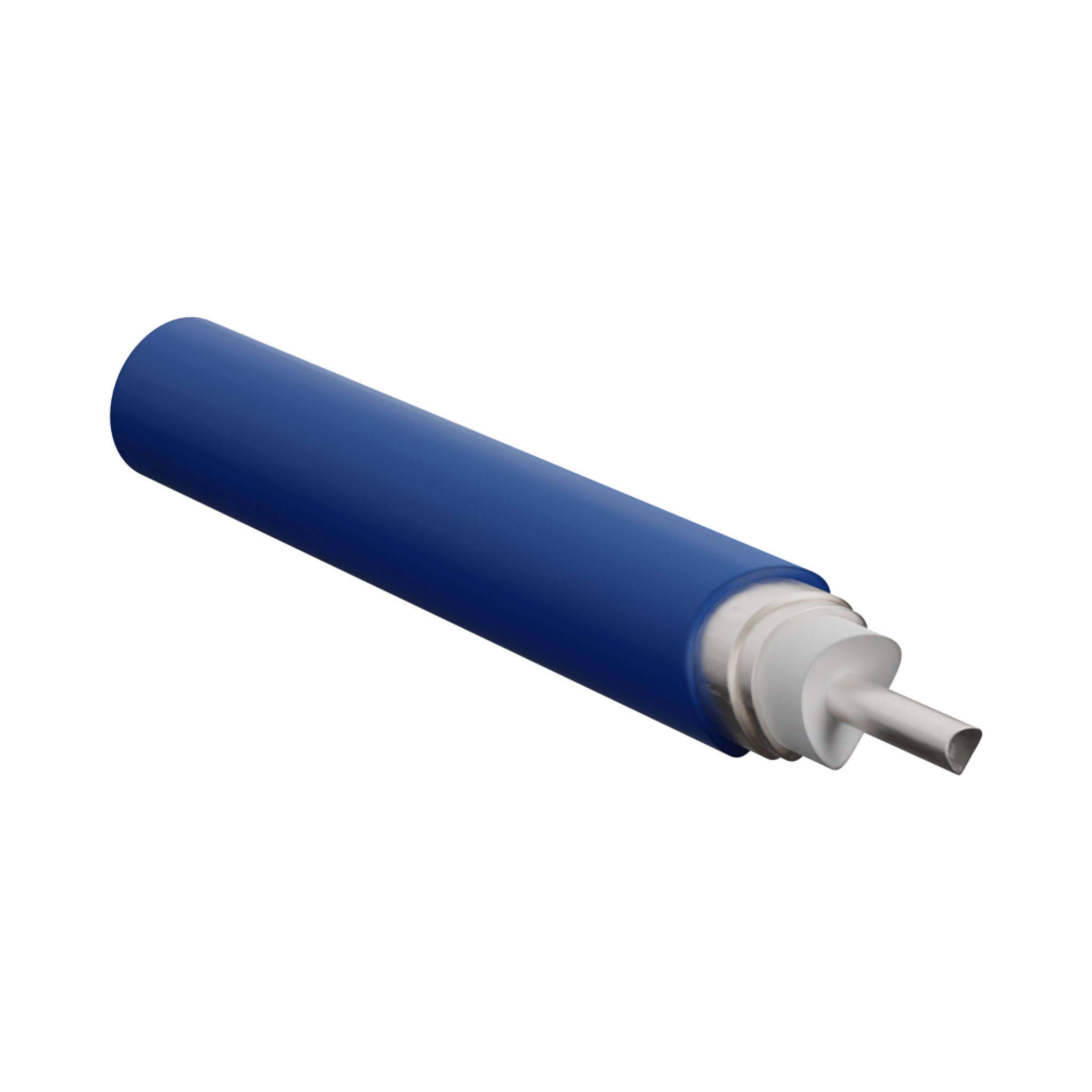

Temp-Flex Foam-Core Low-Loss Flexible Microwave Cable, FEP Jacket, 2.54mm Outer Jacket Diameter, 23 AWG, 130 Style
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 100193-5130 |
Specifications
| Product Name | Temp-Flex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | Contact Molex |
| Voltage Maximum | CONTACT MOLEX |
Physical |
|
|---|---|
| Bending Radius Minimum | 12.70mm |
| Cable Length | 30.48m min - 396.34m max |
| Circuits Loaded | 1 |
| Color Cable Jacket | Blue |
| Insulation | Foamed Fluoropolymer |
| Material Outer Jacket | FEP |
| Net Weight | 11.132/g |
| Outer Jacket Diameter | 3.81mm |
| Temperature Range Operating | -65° to +165°C |
| Wire Cable Type | Foam-Core Microwave Coaxial |
| Wire Size Awg | 19 |
| Wire Size Mm | 0.65 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 19 Awg 50 Ohm Foam Microwave Coax |Molex 1001935130 | Newark Electronics |
| Coaxial Cables CUSTOM ASSEMBLY | Sager |
| 19 AWG 50 OHM FOAM MICROWAVE COAX | Heilind Americas |
