10021092 KK 508 by Molex

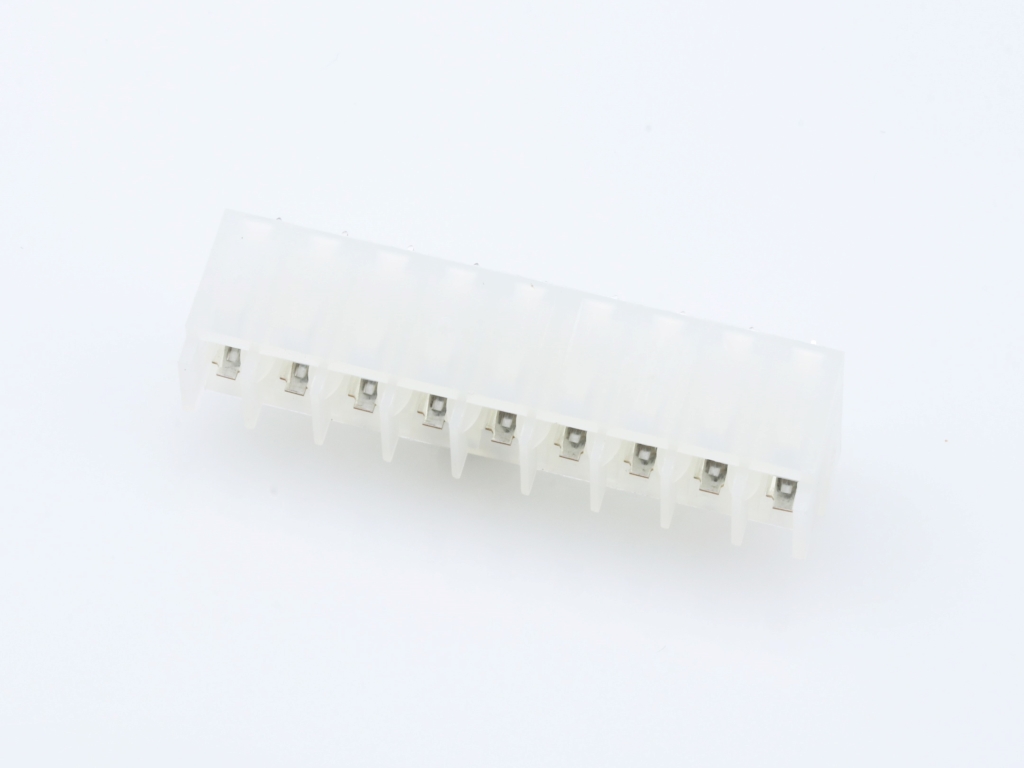

KK PC Board Connector, Bottom Entry Mount Style B, 1.00µm Tin (Sn), 9 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-02-1092,
0010021092, 300209B |
Specifications
| Product Name | KK 508 |
|---|---|
| Application | Board-to-Board, Power |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 2.216/g |
| Number Of Rows | 1 |
| Orientation | Bottom Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 4.10mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, plug,9 Contacts, skt,0.2 Pitch, pc Tail Terminal |Molex 10-02-1092 | Newark Electronics |
| 5.08MM KK PCB CONN B/E VRB 1SN 9CKT | RS Americas |
