10081091 KK 508 by Molex

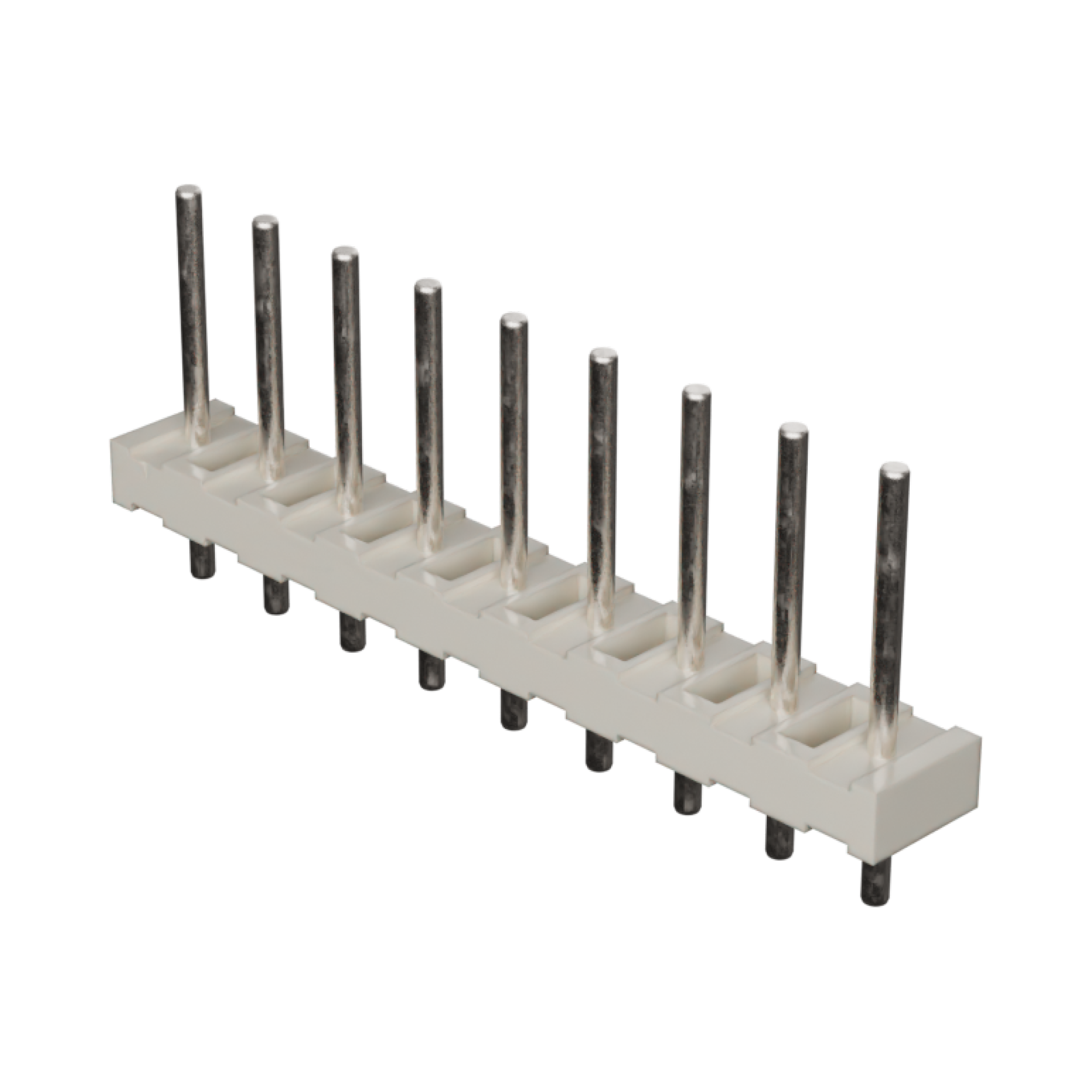

KK Header, Vertical, Round Pin, 9 Circuits, Tin (Sn) Plating, Pin Length 19.05mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-08-1091,
0010081091, 3003-09A |
Where to Buy
Prices starting from US$0.47
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.62
|
5,933
in stock
|
Buy Now |
|
Conrad
from US$1.39
|
5,933
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
5,340
in stock
|
Buy Now |
|
TTI Europe
from US$0.64
|
3,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.86
|
378
in stock
|
Buy Now |
|
RS
from US$1.30
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.51
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.19
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.47
|
0
in stock
|
Buy Now |
|
EME
from US$0.71
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 508 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 2.211/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.94mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Einbau-Stiftleiste (Standard) Anzahl Reihen: 1 10081091 1 St. Bag | Conrad |
| PIN HEADERS PC BOARD CONNECTORS | Farnell |
| 5.08 MM KK HEADER VERTICAL R/P | TTI Europe |
| Wire-To-Board Connector, Kk 3003 Series, Through Hole, Header, 9, 5.08 Mm, Tin Plated Contacts |Molex 10-08-1091 | Newark Electronics |
| Molex 10-08-1091 PCB Header | RS |
| HEADER 5.08MM KK, VERT, ROUND PIN,9W, TIN | RS Americas |
| 5.08MM KK HDR VT RPIN VRA 5SN 9CKT | Heilind Europe |
