10081101 KK 508 by Molex

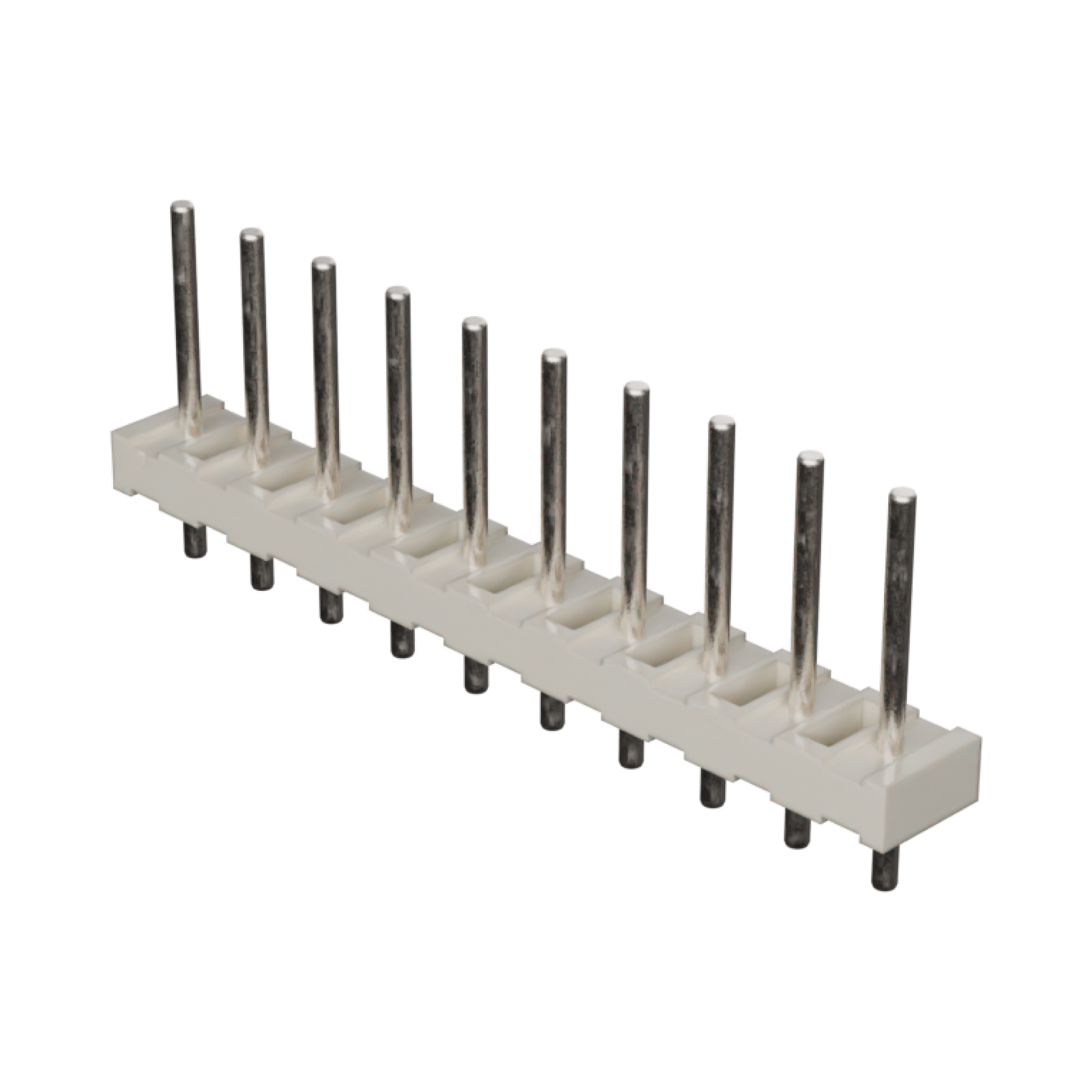

KK Header, Vertical, Round Pin, 10 Circuits, Tin (Sn) Plating, Pin Length 19.05mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-08-1101,
0010081101, 3003-10A |
Where to Buy
Prices starting from US$0.48
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.45
|
6,507
in stock
|
Buy Now |
|
Farnell
from US$1.16
|
5,857
in stock
|
Buy Now |
|
Newark Electronics
from US$1.08
|
1,133
in stock
|
Buy Now |
|
TTI Europe
from US$0.55
|
750
in stock
|
Buy Now |
|
RS
from US$1.46
|
150
in stock
|
Buy Now |
|
Offical Electronic
-
|
650
in stock
|
Buy Now |
|
Avnet America
from US$0.53
|
0
in stock
|
Buy Now |
|
TME
from US$0.78
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.99
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.55
|
0
in stock
|
Buy Now |
|
Sager
from US$0.48
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
|
EME
from US$0.64
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 508 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 2.470/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.94mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Platine 10081101 1 St. Bulk | Conrad |
| PIN HEADERS | Farnell |
| Wire-To-Board Connector, Kk 3003 Series, Through Hole, Header, 10, 5.08 Mm, Tin Plated Contacts Rohs Compliant: Yes |Molex 10-08-1101 | Newark Electronics |
| 5.08 MM KK HEADER VERTICAL R/P | TTI Europe |
| Molex 10-08-1101 Pin Header | RS |
| Connector: wire-board | TME |
| HEADER 5.08MM KK, VERT, ROUND PIN,10W, TIN | RS Americas |
| KK .200 HDR 10P VT ROUND PIN | TTI Americas |
| Headers & Wire Housings 5.08mm KK Hdr Vt RPin VrA 5Sn 10Ckt | Sager |
| 5.08MM KK HDR VT RPIN VRA 5SN 10CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10081101?
Additional datasheets, footprints and schematics for 10081101 are listed on our Part Details page. You can also find images and similar parts to 10081101 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10081101 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10081101 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10081101 fall under?
The 10081101 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10081101 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10081101 you can contact the distributor directly for product support, shipping queries etc.
Is the 10081101 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10081101 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, TTI Europe and RS have stock available or on a lead time for 10081101.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10081101 often in real-time on the comparison pages.
What if I can't find stock of 10081101?
You can fill out our help required form which you can use to request a quote for 10081101 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
