10081111 KK 508 by Molex

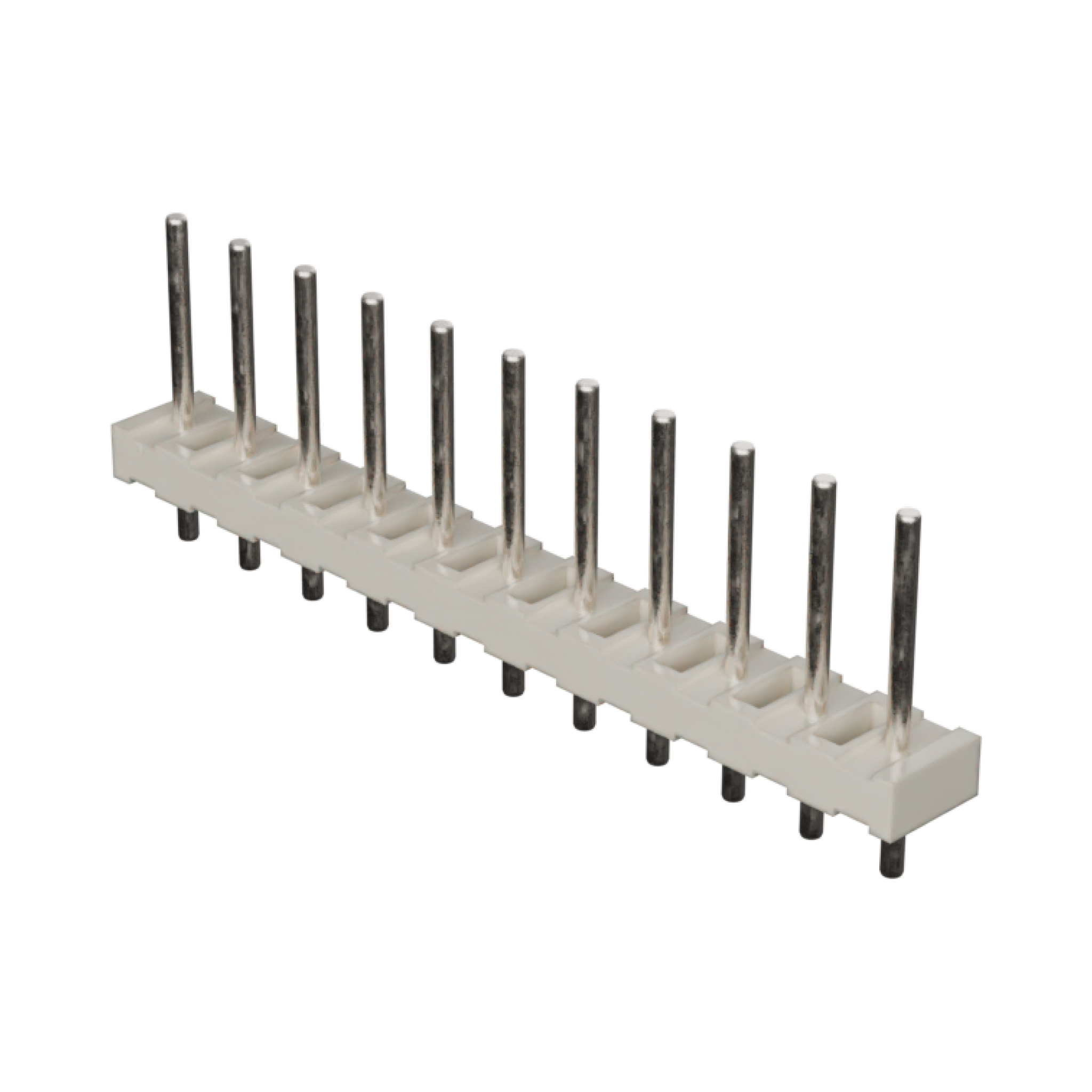

KK Header, Vertical, Round Pin, 11 Circuits, Tin (Sn) Plating, Pin Length 19.05mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-08-1111,
0010081111, 3003-11A |
Where to Buy
Prices starting from US$0.49
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.98
|
54,477
in stock
|
Buy Now |
|
TME
from US$0.53
|
54,477
in stock
|
Buy Now |
|
Conrad
from US$2.08
|
54,477
in stock
|
Buy Now |
|
Farnell
from US$1.15
|
49,030
in stock
|
Buy Now |
|
RS
from US$1.18
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.49
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.21
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.53
|
0
in stock
|
Buy Now |
|
EME
from US$0.79
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 508 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 11 |
| Circuits Maximum | 11 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 2.730/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.94mm |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, recept,11 Contacts, pin,0.2 Pitch, pc Tail Terminal Rohs Compliant: Yes |Molex 10-08-1111 | Newark Electronics |
| Connector: wire-board | TME |
| Molex Stiftgehäuse-Platine 10081111 1 St. | Conrad |
| CONN, HEADER, 11POS, 1ROW, 5.08MM, TH | Farnell |
| Molex 10-08-1111 PCB Header Pin | RS |
| 5.08MM KK HDR VT RPIN VRA 5SN 11CKT | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 10081111?
Additional datasheets, footprints and schematics for 10081111 are listed on our Part Details page. You can also find images and similar parts to 10081111 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 10081111 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 10081111 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 10081111 fall under?
The 10081111 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 10081111 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 10081111 you can contact the distributor directly for product support, shipping queries etc.
Is the 10081111 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 10081111 have stock available?
Authorised distributors including Newark Electronics, TME, Conrad, Farnell and RS have stock available or on a lead time for 10081111.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 10081111 often in real-time on the comparison pages.
What if I can't find stock of 10081111?
You can fill out our help required form which you can use to request a quote for 10081111 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
